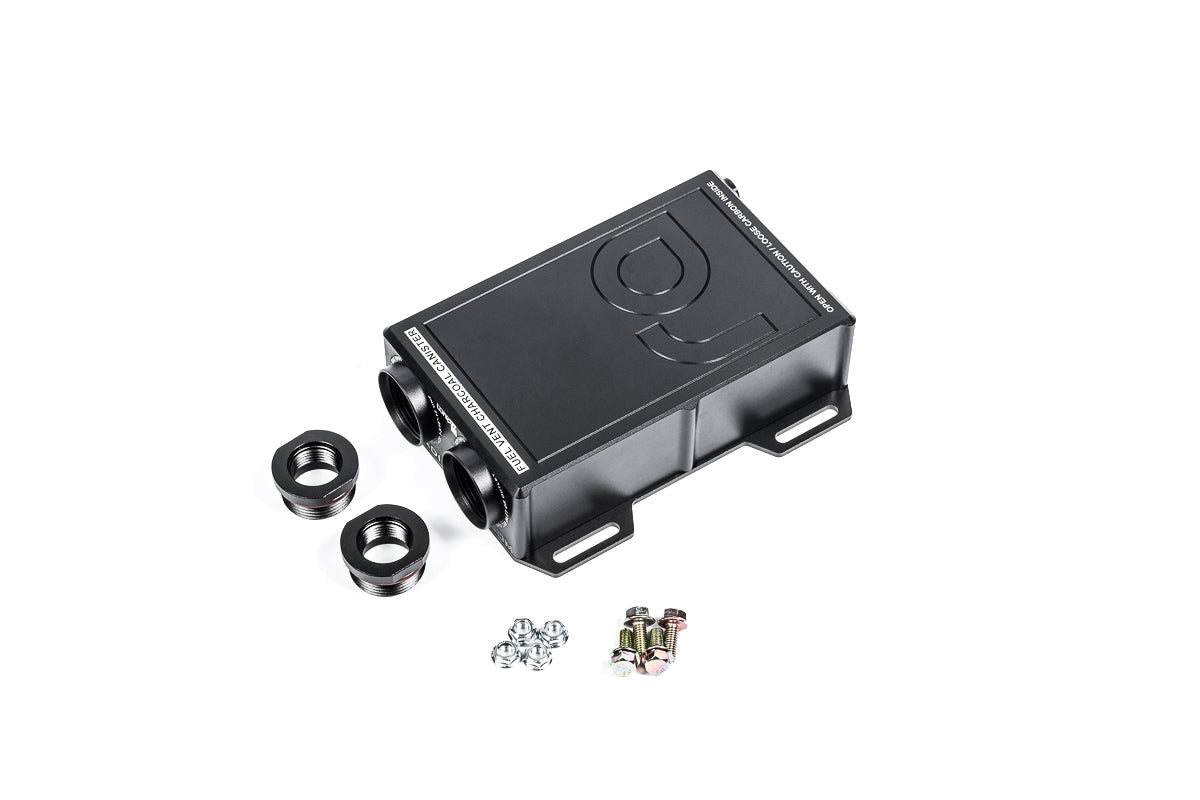

Radium Engineering Fuel Vent Charcoal Canister, Universal - 20-1828-00

Radium Engineering 20-1828-00 universal fuel vent charcoal canister, supplied with adapters for 1/4", 5/16" or 3/8" vent lines (classic cars). Universal fit for EFI and carbureted fuel systems.

• Purifies odors from the fuel tank vent system
• CNC machined 6061 aluminum body, type-II anodized
• Vibratory-packed activated carbon inside a 150 micron strainer and an anodized aluminum baffle that keeps loose carbon from leaving the canister
• Holds 5 times more activated carbon than the compact 20-1827 series, so it needs less servicing
• 16AN ORB (1-5/16"-12) female ports, usable as inlet or outlet
• Two 4AN ORB (7/16"-20) female drain ports at the bottom with preinstalled plugs. One can be used with a Petcock Drain Kit depending on orientation
• Outlet gas content below 50 ppm in Radium testing
• Mount a section of vent hose upstream of the air filter higher than the fuel filler, and mount the air filter at the rear of the vehicle away from the exhaust

Included

• Two 16AN ORB male to 10AN ORB female couplers

Fitment

• Universal, EFI and carbureted fuel systems. (Source: Radium Engineering)
