Radium Engineering Master Cylinder Brace Mazda MX-5 1989-1997 with ABS (LHD) - 20-0843

Radium Engineering 20-0843 master cylinder brace for the 1989-1997 Mazda MX-5 with ABS, left-hand drive.

• Mounts on the strut tower to stop firewall flex so more pedal force goes into brake line pressure
• Radium dial-indicator testing showed about 90% less master cylinder deflection than the stock setup
• Solid one-piece design, machined from high-strength steel, powder coated
• Compatible with the OEM strut tower bar, if equipped
• Adjustment screw with a large-diameter aluminum head to protect the master cylinder housing
• Stainless steel jam nuts hold the preload setting
• Secured with M8 hardware torqued to 30 lb-ft (40 Nm)
• Requires no cutting, drilling or vehicle modification
• With the OEM air box, the brace slightly interferes with the outer-rear bolt boss and trimming may be required

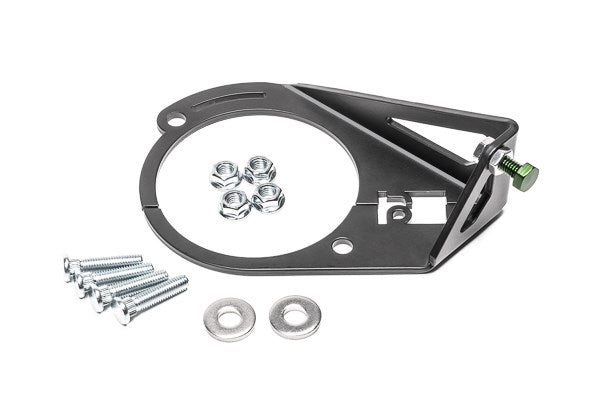

Included

• Black powder-coated brace
• Aluminum preload adjustment bolt
• Stainless steel jam nuts
• Stainless steel shims
• Longer M8x1.25mm studs
• Extra M8x1.25mm nuts

Fitment

• Mazda MX-5, 1989-1997, LHD, with ABS. (Source: Radium Engineering)

Resources

• Radium Engineering product page

Contact us if you are unsure of fitment or Size HERE
