Radium Engineering MPR-RA Multi-Port Fuel Pressure Regulator, Green - 20-1100-01

Radium Engineering 20-1100-01 MPR-RA Multi-Port Regulator (MPR), green. A universal fuel pressure regulator for single and multi-pump EFI systems.

• Fits any port injection EFI system operating between 20 and 150 psi
• Compatible with popular gasolines and ethanol blends
• Minimum pressure 18.5 psi (1.3 bar). Maximum pressure depends on the fuel pump setup
• Tool-less pressure adjustment with a knob
• 360 degree swiveling, double O-ring sealed vacuum reference port. Four vacuum reference fittings included
• Two pressure ports and two lower opposing return ports. Either lower port can be the return, and plugs are included for unused ports
• Works in flow-through or dead-head systems, with no Y fitting needed
• M6 holes through the body for wall mounting, or use the included bracket for floor mounting (M6x1mm hardware provided)

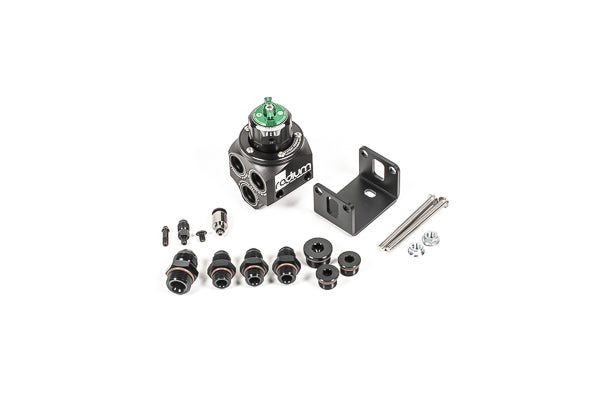

Included

• Main rotating assembly
• Mounting bracket with hardware
• 5mm barbed vacuum fitting and vacuum plug fitting (returnless)
• 1/4 in push-to-connect vacuum fitting
• 3AN male vacuum fitting
• 6AN ORB plugs (x2) and 8AN ORB plug (x1)
• 6AN ORB to 6AN male adapters (x3)
• 8AN ORB to 8AN male adapter (x1)

Fitment

• Universal. Fits port injection EFI systems operating between 20 and 150 psi. (Source: Radium Engineering)
