Radium Engineering PCV Catch Can Kit GM LS1/LS6 Engines, Fluid Lock - 20-0260-FL

Radium Engineering 20-0260-FL PCV catch can kit with Fluid Lock for GM LS1 and LS6 (Gen III) engines.

• Routes inline with the OEM PCV valve on Gen III engines
• Bracket mounts to the front right side of the cylinder head
• Direct fitment, no drilling required
• 10AN ORB inlet and outlet ports, 4AN ORB drain port
• Two-step oil separation baffling
• O-ring sealed dipstick
• 7 fl oz capacity
• Patented Fluid Lock system prevents overfilling and holds collected fluid until emptied
• Compatible with wet and dry sump engines

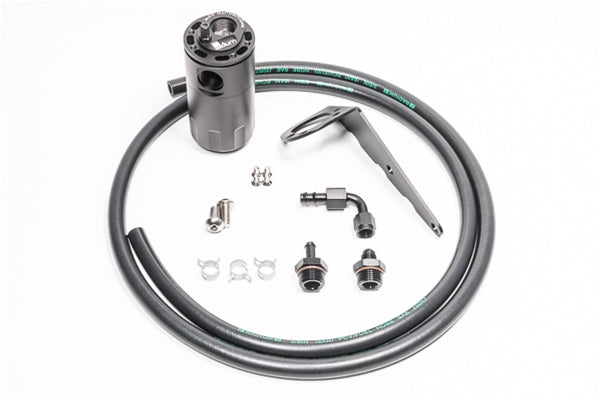

Included

• Baffled oil catch can with integrated condenser and dipstick
• Anodized aluminum mounting bracket
• Anodized aluminum 6AN hose ends and fittings
• Stainless steel mounting hardware
• 3/8 in PCV rubber hose
• Spring clamps

Fitment

• GM LS1 (Gen III) engine. (Source: Radium Engineering)
• GM LS6 (Gen III) engine. (Source: Radium Engineering)
• Check clearance in the mounting area before ordering. Extra belt-driven accessories, such as an aftermarket supercharger, may make some setups incompatible. (Source: Radium Engineering)

Resources

• Radium Engineering product page
• Radium installation instructions (PDF)

Contact us if you are unsure of fitment or Size HERE
