Radium Engineering PCV Catch Can Kit Mazda MX-5 Miata NB (1998-2005), Fluid Lock - 20-1336-FL

Radium Engineering 20-1336-FL PCV catch can kit with Fluid Lock for the 1998-2005 Mazda MX-5 Miata NB.

• Runs inline with the PCV valve and keeps the factory PCV function
• The valve closes under high intake pressure, so the hose sees no flow then. During idle, steady cruise and deceleration, metered flow pulls crankcase vapor through the can
• No drilling required. Mounts on the right side of the engine bay near the coolant reservoir using OEM holes
• Suitable for 1.6L and 1.8L engines, LHD and RHD vehicles
• 10AN ORB inlet and outlet ports and a 4AN ORB drain port
• Two-stage oil separation baffling
• O-ring sealed dipstick
• 7 fl oz capacity
• Patented Fluid Lock system prevents overfilling and holds collected fluid until emptied
• Pressure sealed, so intake manifold connection is permitted, including on boosted applications

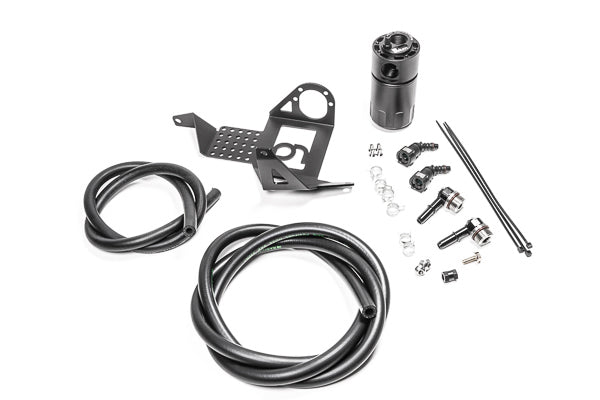

Included

• Fluid Lock catch can
• Anodized aluminum mount bracket
• 3/8 in PCV hose
• 5/16 in heater hose
• 10AN ORB to 10mm SAE quick connect fitting (x2)
• SAE quick connect hose end (x2)
• Installation hardware

Fitment

• Mazda MX-5 Miata NB, 1998-2005, 1.6L and 1.8L engines. (Source: Radium Engineering)

Resources

• Radium Engineering product page
