Radium Engineering PCV Catch Can Kit Mazda RX-7 FD3S (92-02) Fluid Lock - 20-0977-FL

Radium Engineering 20-0977-FL PCV catch can kit with Fluid Lock for the 1992-2002 Mazda RX-7 FD3S.

• Closed PCV system that keeps the OEM PCV valve operating, now mounted on the can
• Mounts to the firewall with no drilling required
• Plumbs into the brake booster intake manifold port; fits all model years, RHD and LHD
• Pressure-sealed design, so no check valve is required
• 7 fl oz capacity
• 10AN ORB inlet and outlet ports, plugged 4AN ORB drain port
• Two-step oil separation baffling
• O-ring sealed integrated dipstick
• Patented Fluid Lock system prevents overfilling and holds collected fluid until emptied

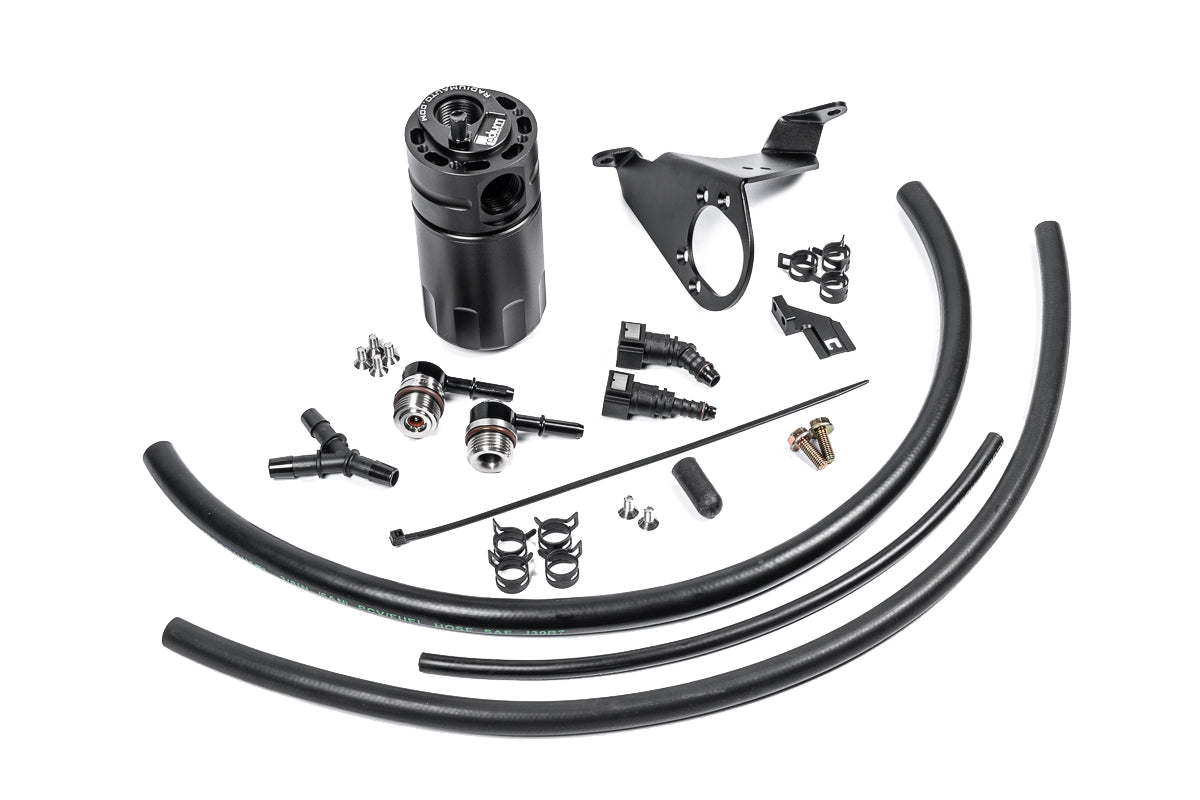

Included

• Fluid Lock catch can
• Anodized aluminum mount bracket
• Anodized aluminum MAP sensor mount
• Low profile swiveling banjo PCV valve fitting
• Low profile swiveling banjo SAE quick connect fitting
• SAE quick connector hose ends
• 5/16 in PCV hose
• 3/8 in PCV hose
• 5/32 in vacuum hose
• Spring clamps
• Stainless steel hardware

Fitment

• Mazda RX-7 FD3S, 1992-2002 (all model years, RHD and LHD). (Source: Radium Engineering)

Resources

• Radium Engineering product page

Contact us if you are unsure of fitment or Size HERE
