Radium Engineering PCV Catch Can Kit Nissan 350Z, Nissan Skyline V35, Infiniti G35 VQ35DE, Fluid Lock - 20-0728-FL

Radium Engineering 20-0728-FL PCV catch can kit with Fluid Lock for the Nissan 350Z (Z33), Fairlady Z (Z33), Skyline (V35) and Infiniti G35 (V35) with the VQ35DE engine.

• PCV-side catch can that runs inline between the PCV valve and the intake manifold
• Traps metered crankcase vapor, unspent fuel and oil sludge, keeping oil out of the intake
• Mounts to the OEM power steering reservoir bracket
• Pressure sealed, so no inline check valve is needed
• No drilling required for installation
• 7 fl oz capacity
• Large 10AN ORB inlet and outlet ports, 4AN ORB drain port
• Two-stage oil separation baffling
• O-ring sealed dipstick
• Patented Fluid Lock system prevents overfilling and holds collected fluid until emptied
• Not compatible with VQ35HR vehicles, which have a different power steering reservoir mount

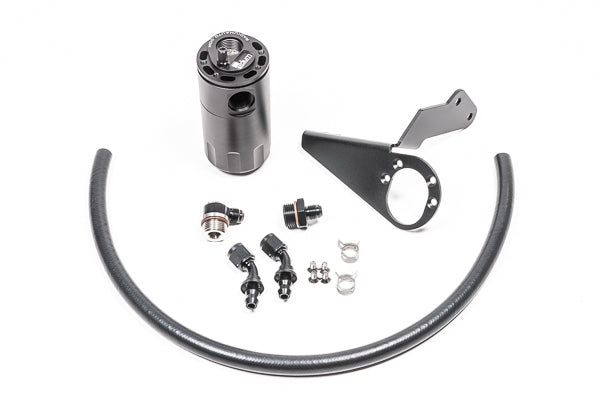

Included

• Baffled oil catch can
• Nissan-specific mounting bracket
• AN adapter fittings and hose ends
• Stainless steel hardware
• Radium PCV hose
