Radium Engineering Port Injection Kit Ford EcoBoost Focus ST / Focus RS - 20-0326

Radium Engineering 20-0326 port injection kit for Ford EcoBoost engines, including the 2013+ Focus ST and 2016+ Focus RS.

• Installs between the intake manifold and cylinder head to add port fuel injection on high-horsepower Ford EcoBoost engines. It does not replace the OEM direct injection system
• Compatible with all fuel types, including E85
• PIK adapter plate is 6061 CNC-machined aluminum with a smoothed port divider and CAD-matched airflow passages
• Custom fuel rail is 6063 aluminum with a 0.69 in internal bore and laser-etched finish
• All three rail ports (two ends and center) are tapped for 8AN ORB (3/4-16 female)
• CNC-machined adapter brackets relocate the mounting grommets so the OEM Ford Focus engine covers can be reused (Focus only)
• Injector requirements: upper and lower O-rings must be 14 mm in diameter and the injector body must be the short 34 mm height. Radium does not sell injectors
• Not included: fuel injectors, port fittings, fuel hose, wiring, injector controller, fuel pressure regulators and gauges

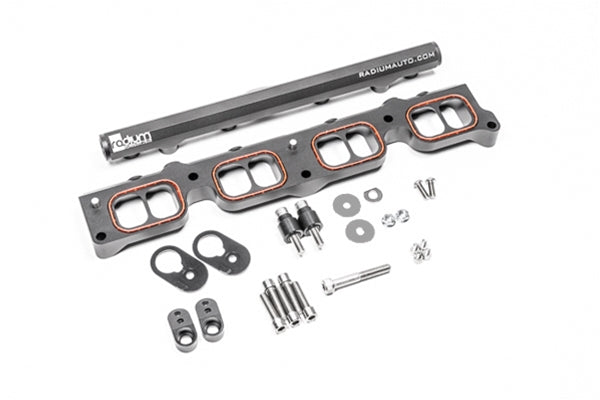

Included

• PIK adapter plate
• Stainless steel alignment dowels, pressed into the adapter plate
• Custom fuel rail
• Fuel rail mounting hardware
• OEM Ford gaskets
• Insulating mounting spacers and washers
• Adapter brackets for engine cover reuse (Focus only)

Fitment
