Radium Engineering Pump Outlet Adapter with Check Valve, 10mm Barb - 20-0798

Radium Engineering 20-0798 pump outlet adapter with check valve and 10mm barb. Converts compatible fuel pumps to a 10mm barbed connection.

• Fits a high-flow check valve to the pump outlet, bypassing the pump's integrated check valve
• Lower restriction reduces pump current draw, which keeps fuel cooler and helps prevent cavitation
• Radium check valve: 15 LPH flow restriction and 0.5 A current draw, compared with 46-76 LPH and 3.2-4.8 A for a standard integrated check valve
• Two billet aluminum halves, stainless steel retainer and bolts, stainless steel plunger and spring, and FKM O-rings
• Rated for E85
• Pump outlet hose barb ridges must be in excellent condition. Damaged or non-round ridges can prevent a proper seal
• Works only on the pumps listed under Fitment. Any check valve affects flow and current draw

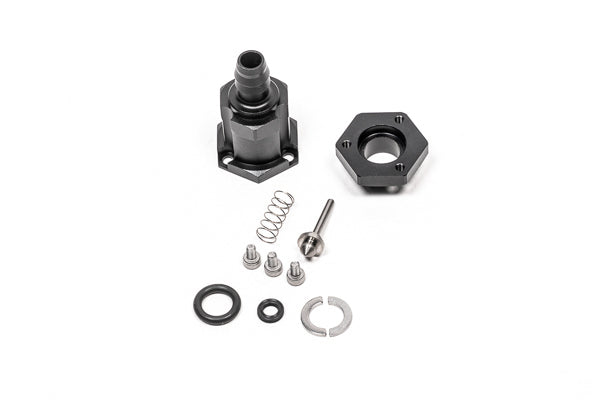

Included

• Anodized aluminum top with a 10mm barb
• Anodized aluminum bottom base
• Check valve plunger with FKM O-ring
• Additional FKM O-ring
• Two half-moon retainers
• Check valve spring
• Stainless steel hardware

Fitment

Resources

• Radium Engineering product page
• Radium installation instructions (PDF)

Contact us if you are unsure of fitment or Size HERE
