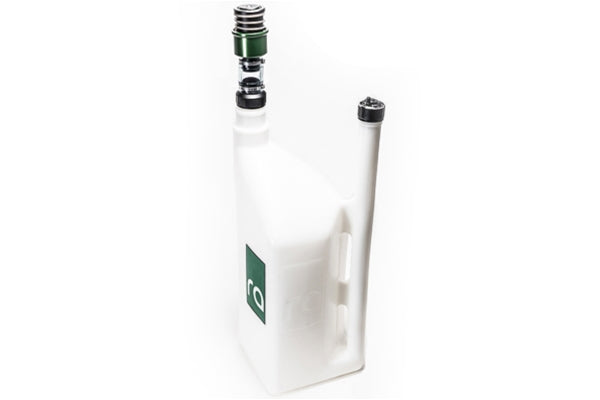

Radium Engineering Quick Fill Dump Can 5 Gallon 1.5 in Dry Break PRV - 20-1697-01

Radium Engineering 20-1697-01 quick fill dump can, 5 gallon (19 liter), with a 1.5 in dry break and PRV (pressure relief valve). Intended for motorsports refueling.

• Molded polymer body rated for gasoline, diesel, AV gas, methanol, ethanol, E15 and E85
• Semitransparent white, graduated in US gallons on one side and liters on the other
• 25.25 in H x 9.5 in W x 9.5 in D (641 x 241 x 241 mm)
• Vent is 1.675 in OD (43 mm), 1.375 in ID (35 mm), routed from the bottom
• Vent cap unscrews for faster filling; the flip cap allows slower, controlled filling
• Plastic pour spout can be cut for 2.5 in or 3 in dry breaks
• Integrated vent handle with finger grips and a molded bottom grip
• Stackable with standard 9.5 in x 9.5 in fuel jugs
• Flow rate 19.02 gpm with the vent cap on and flip cap open, 25.75 gpm with the vent cap off
• For best flow, the fuel tank or cell should have a large vent (Radium 20-0535)

Included

• 1.5 in dry break probe
• Clear short tube for monitoring fill
• PRV on the center stainless steel valve (push down to release pressure)
• Knurled aluminum pour and vent caps
• Plastic flip vent cap
• Six fuel type indicator knobs (Unleaded, Leaded, Methanol, Ethanol, Pre-Mixed, Diesel)

Fitment

• Universal. No vehicle fitment listed by Radium. (Source: Radium Engineering)
