Radium Engineering RA-Series FPR Conversion Kit, Green - 20-1101-01

Radium Engineering 20-1101-01 RA-Series FPR conversion kit (green). Converts earlier Radium adjustable fuel pressure regulators to the RA-Series design.

• Adds the newer RA-Series features and performance enhancements to previous Radium adjustable fuel pressure regulators
• Tool-less adjustment: turn the knob, with no jam nut or set screw
• Incremental detents give tactile feedback, each detent is 1 psi (+/- 0.5 psi) depending on current fuel pressure
• Single stainless steel return orifice generates laminar flow for stability
• Minimum pressure is 18.5 psi (1.3 bar). Maximum depends on the pump internal relief valve or the fuel pump controller maximum current
• 360 degree swiveling vacuum reference port with double O-ring seal, positioned without tools
• Suitable for all gasoline types, including leaded, oxygenated and pre-mixes, and alcohol blends including methanol, ethanol and E85

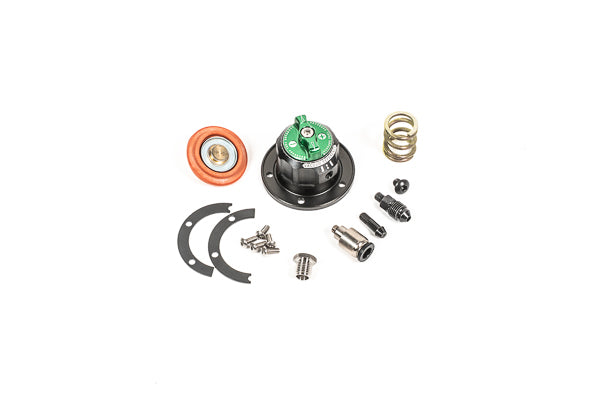

Included

• Upper rotating assembly
• 5mm barbed vacuum fitting
• Vacuum plug fitting (returnless)
• 1/4 in push-to-connect vacuum fitting
• 3AN male vacuum fitting
• Anodized half moon retainers
• Stainless steel return orifice
• Stainless button head screws
• Stainless steel spring
• Fluorosilicone diaphragm

Fitment

• Radium Direct Mount Regulator, all generations. (Source: Radium Engineering)
• Radium Multi-Port Regulator, all generations. (Source: Radium Engineering)
• Radium Fuel Pressure Regulator Damper, all generations. (Source: Radium Engineering)
• Radium hangers and surge tanks with integrated regulator. (Source: Radium Engineering)

Resources

• Radium Engineering product page
• Radium installation instructions (PDF)

Contact us if you are unsure of fitment or Size HERE
