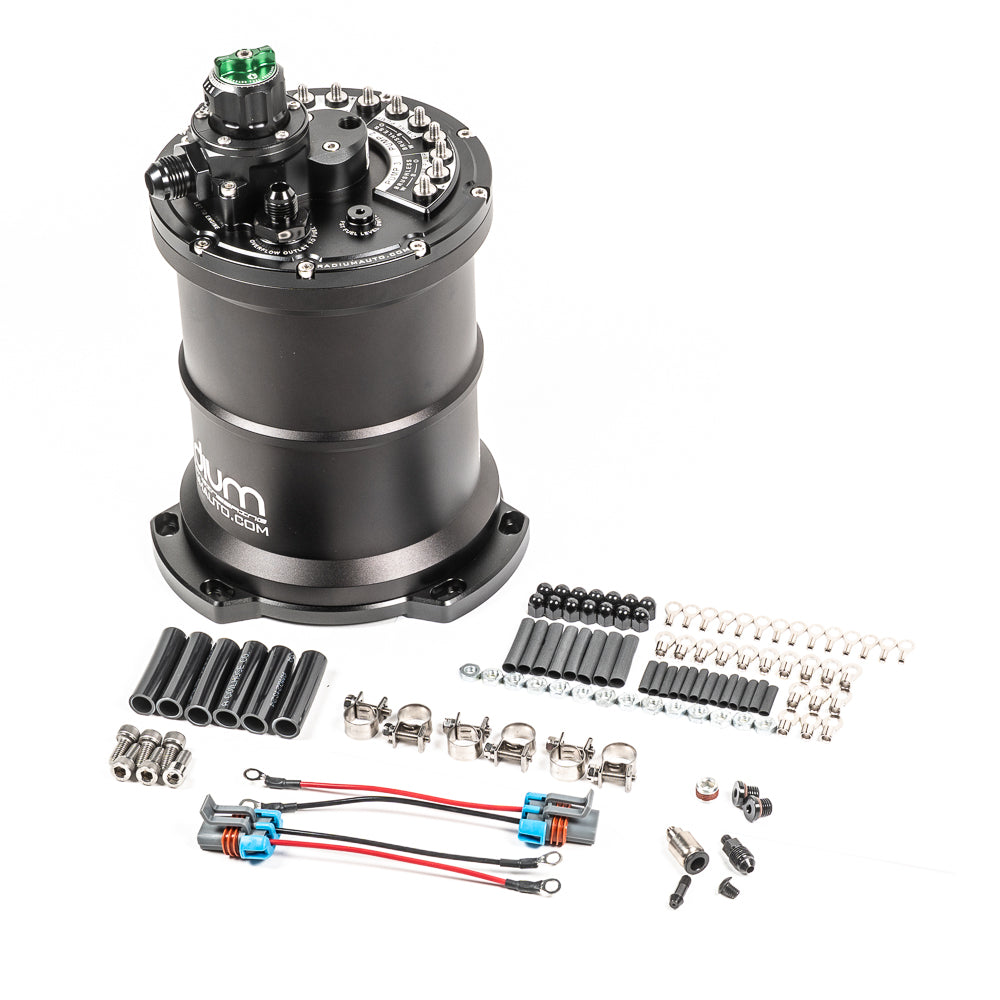

Radium Engineering Regulated Multi-Pump Fuel Surge Tank (Walbro F90000267/274/285) - 20-1447

Radium Engineering 20-1447 regulated multi-pump fuel surge tank (MPFST-R) for Walbro F90000267, F90000274 and F90000285 pumps. Pumps are not included.

• Prevents fuel starvation on vehicles with inadequate fuel tank baffling
• Accepts 1, 2 or 3 fuel pumps
• Returnless design: the built-in regulator returns low-pressure fuel into the surge tank, so no external fuel pressure regulator return line is needed
• Tool-less regulator adjustment by knob, with detents of about 1 psi each
• 360-degree swiveling vacuum reference port, 1:1 vacuum reference capable, with four interchangeable 10-32 vacuum fittings and a screw plug for constant pressure
• Pump outlet: 10AN ORB female with an 8AN male adapter preinstalled
• Overflow and supply ports: 8AN ORB female with 6AN male adapters preinstalled
• 1/8 in NPT fuel pressure port, plugged by default
• The Walbro F90000295 also fits but has no check valve, so use it only as the primary pump in a staged installation
• Cars without a fuel tank return port need one created

Included

• Surge tank with built-in regulator
• Ring terminals and hardware to install the pumps (pumps not included)

Fitment

• Compatible pumps: Walbro F90000267, F90000274, F90000285, F90000295. (Source: Radium Engineering)
• Universal surge tank. Radium Engineering does not list specific vehicles. (Source: Radium Engineering)

Resources

• Radium Engineering product page
• Radium installation instructions (PDF)
