Radium Engineering Remote Mount Swing Valve Filler 1.5 in 24AN Elbow - 20-1103

Radium Engineering 20-1103 remote mount SVF swing valve filler, 1.5 in elbow with a 24AN 75 degree hose end. Universal fitment.

• Capless swing valve opens when a nozzle is inserted, sealed with an FKM O-ring
• 30 mm opening; tethered dust cap
• Designed for remote mounting to an external surface such as a fender
• Flange OD 4.75 in, 4.25 in PCD with five M5 bolts. Hose end is 24AN at a 75 degree angle
• Requires a 77 mm (3.03 in) hole
• Compatible with all listed fuel types, including gasoline, diesel, E85 and methanol

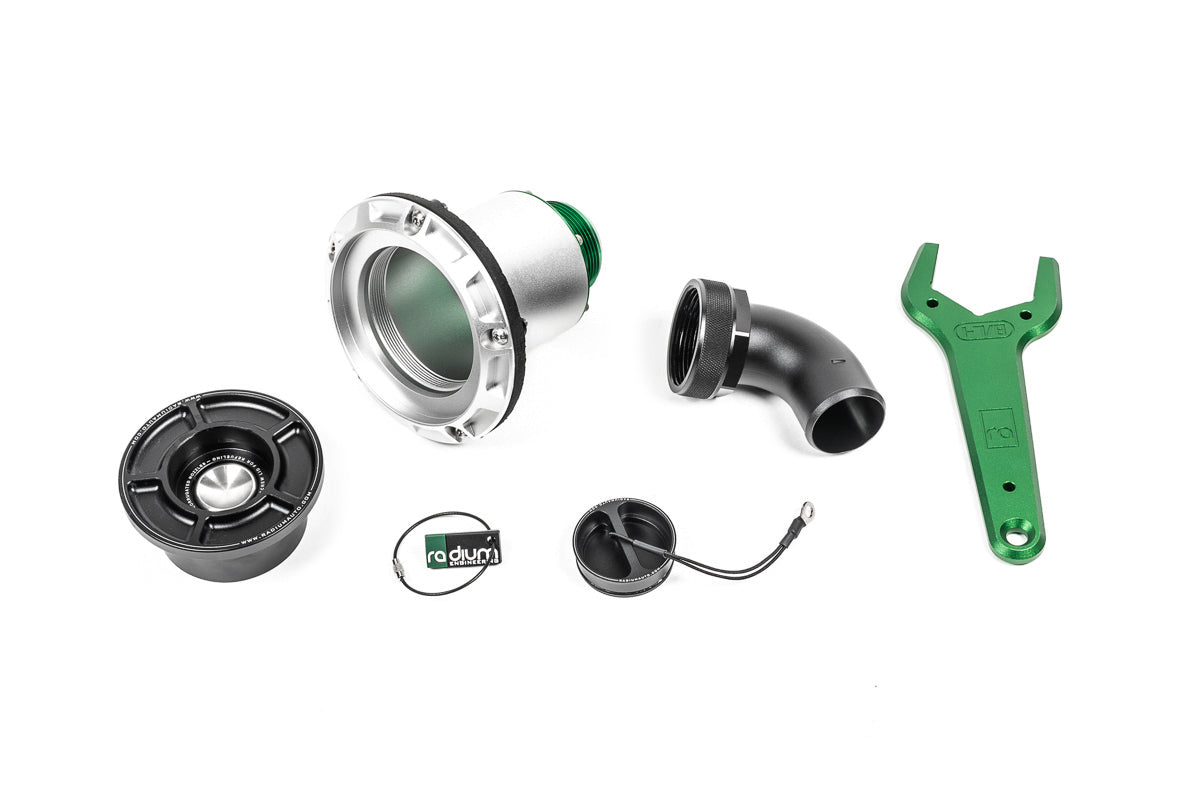

Included

• Swing valve cap
• Flanged fill neck for 24AN connection
• 24AN B-nut and 24AN elbow
• 24AN wrench (1-7/8 in aluminum)
• Ozone and flame resistant gasket
• Anodized aluminum nut ring
• Stainless M5 bolts
• Tether components

Fitment

• Universal. Connects to 1.5 in filler hose. (Source: Radium Engineering)
