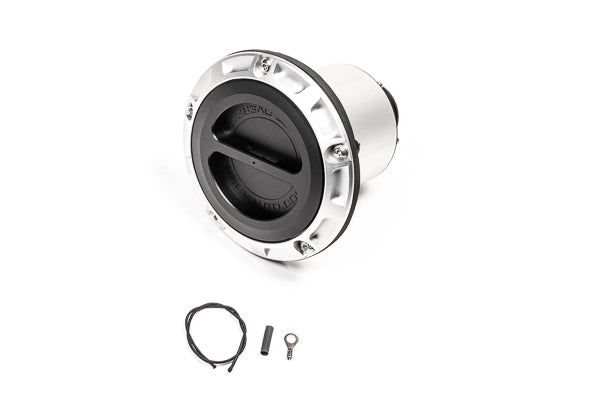

Radium Engineering Remote Mount Vented Standard Filler 1.5 in - 20-1005-V

Radium Engineering 20-1005-V remote mount vented standard filler, 1.5 in, for 1.5 in filler hose.

• Vented fuel cap with roll-over protection if the vehicle becomes inverted
• Requires a 77 mm (3.03 in) hole to be fabricated
• Flange OD 4.75 in with a 4.25 in P.C.D. for five M5 bolts; total height 4.1 in
• Barbed connection for 1.5 in filler hose
• Threads match the dry break and swing valve caps
• Typically mounts to the vehicle body
• Dry break upgrade available via 20-0549-V
• Compatible with the 1.5 in, 24AN and 2.25 in remote mount adapters (20-1007, 20-1008, 20-1015)
• Does not include tank-side accessories

Included

• Vented cap with roll-over protection
• Flanged fill neck for 1.5 in ID hose
• Gasket
• Anodized aluminum nut ring
• Stainless steel M5 bolts
• Tether components

Fitment

• Universal, for 1.5 in filler hose. No specific vehicle applications listed. (Source: Radium Engineering)
