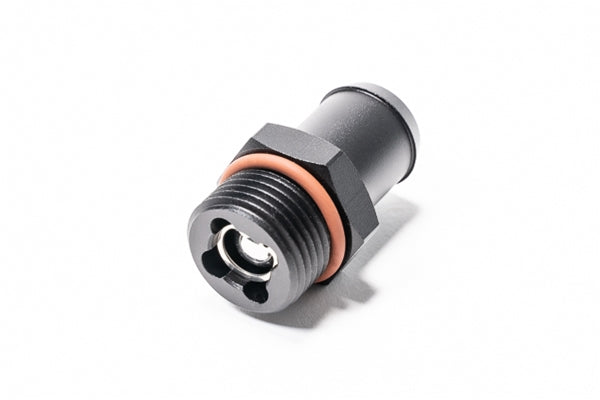

Radium Engineering Roll Over Valve, 10AN ORB to 0.75 in Barb - 20-0594

Radium Engineering 20-0594 roll over valve, 10AN ORB to 0.75 in barb. Prevents oil from escaping an engine vent or catch can if the vehicle is inverted, while still allowing venting.

• Passes air in both directions when mounted upright. If it rotates more than 90 degrees, it closes and blocks all flow
• Must always be mounted in the vertical upright position
• Designed to pair with the Radium 18-0042 0.75 in ID air filter
• Thread: 7/8-14 UNF (10AN ORB)
• Barb outside diameter: 0.75 in (19 mm)
• Body: 6061 aluminum with Type II anodized finish
• Valve and retaining ring: stainless steel. O-ring: FKM

Fitment

• Engine air vents with 10AN ORB female threaded ports. (Source: Radium Engineering)
• Radium standard (non-Fluid Lock) catch cans and other catch cans with 10AN ORB female ports and top outlets. Not for side-outlet catch cans such as Fluid Lock models. (Source: Radium Engineering)

Resources

• Radium Engineering product page

Contact us if you are unsure of fitment or Size HERE
