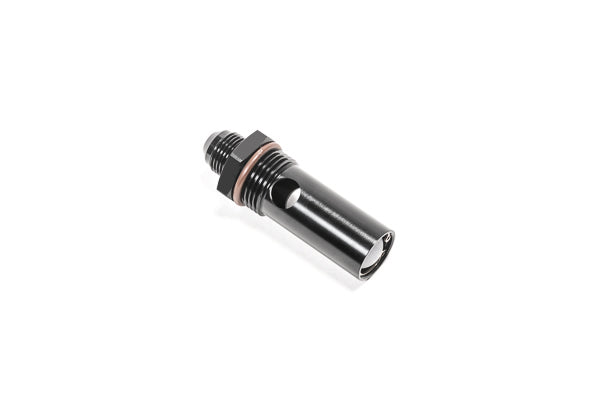

Radium Engineering Roll Over Valve 12AN ORB to 8AN Male - 20-0934

Radium Engineering 20-0934 roll over valve with a 12AN ORB to 8AN male connection. Fits the Radium FCST and FCST-X with a standard filler, and other tanks or cells with a 12AN ORB female vent port and a standard filler.

• The vertical height of at least one portion of the vent tubing (not included) should be positioned above the highest point of the fuel fill point
• Disassembles for cleaning
• Compatible with all fuel types, including methanol and E85
• Standard on Radium FCST units after August 2023
• Cannot be used with dry break fillers
• 1-piece billet 6061 aluminum, type-II anodized

Included

• Ball valve
• FKM O-ring
• Stainless steel retaining ring

Fitment

• Radium FCST and FCST-X with a standard filler. (Source: Radium Engineering)
• Other tanks or fuel cells with a 12AN ORB female vent port and a standard filler. (Source: Radium Engineering)

Resources

• Radium Engineering product page

Contact us if you are unsure of fitment or Size HERE
