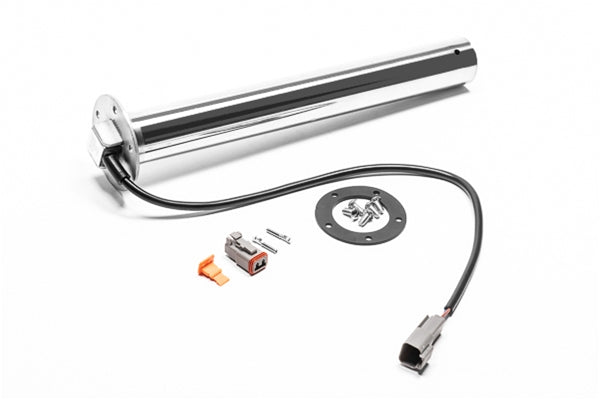

Radium Engineering SAE Fuel Level Sender, 0-90 ohm, 11.7 in, Shrouded - 20-0847-297

Radium Engineering 20-0847-297 SAE 5-bolt fuel level sender, 0-90 ohm, 11.7 in length, shrouded. Suited to the last 20-099x series FCST and the FCST-X, and used in 14 and 22 gallon RA-Series fuel cells.

• Standard SAE 5-bolt mounting pattern
• Resistance of 0 ohms (empty) to 90 ohms (full)
• Full stainless steel sealed construction with magnetic float
• 304 stainless steel probe, plastic Buna-N float and FKM mounting gasket
• Suitable for gasoline, diesel, water and alcohol based fuels including methanol, ethanol and E85
• PVC wires, 18 in (460 mm) long, with PA cover and Deutsch DT 2P connector
• Operating temperature: -40 F to +185 F
• The shroud is 40 mm in diameter, so the through-hole must be at least 40 mm. The diameter is slightly too large for older FCST units

Included

• Level sensing probe
• SAE 5-bolt gasket
• Stainless 10-32 bolts (x5)
• Deutsch DT 2P connector
• Deutsch DT sockets (x2)

Fitment

• 14 and 22 gallon RA-Series fuel cells. (Source: Radium Engineering)
• Newer Radium FCST (20-099X-XX) and FCST-X (20-199X-XX). Older FCST versions (20-049X-XX and 20-069X-XX) require the non-shrouded sender. (Source: Radium Engineering)

Resources

• Radium Engineering product page
• Radium installation instructions (PDF)

Contact us if you are unsure of fitment or Size HERE
