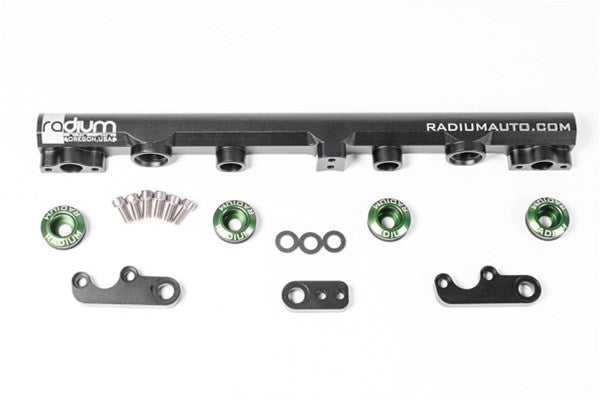

Radium Engineering Top Feed Conversion Fuel Rail Nissan SR20VE Bluebird, Primera - 20-0331

Radium Engineering 20-0331 top feed conversion fuel rail for the Nissan SR20VE engine. Fits the JDM Nissan U14 Bluebird SSS-Z and P11 Primera.

• Converts the OEM side feed injector setup to top feed for high flow 14 mm O-ring injectors (injectors not included)
• 0.69 in internal bore
• Extruded and CNC machined from solid 6063 aluminum, black anodized
• Compatible with E85
• Ports tapped for 8AN ORB fittings
• OEM insulating spacers and the included thermal insulating washers isolate the rail from intake manifold heat
• Billet aluminum injector seats, anodized and laser etched, press into the intake manifold
• Injectors required: 34 mm tall universal injector with 14 mm upper and lower O-rings. Shorter injectors are used to avoid hood clearance issues

Included

• Black anodized aluminum fuel rail
• Black anodized aluminum mounting feet
• Stainless steel mounting feet bolts
• Thermal insulating mounting washers
• Green anodized aluminum 25 mm injector seats

Fitment

Resources

• Radium Engineering product page
• Radium installation instructions (PDF)

Contact us if you are unsure of fitment or Size HERE
