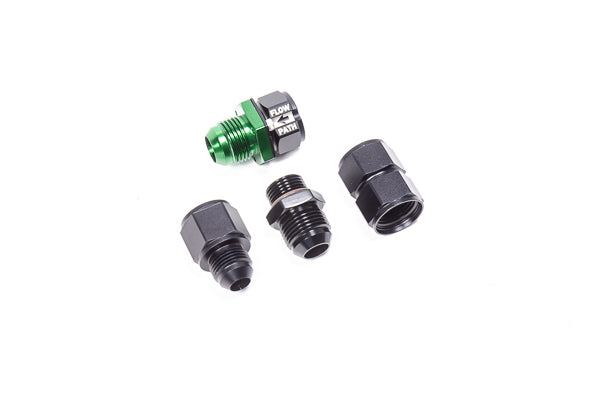

Radium Engineering Universal Check Valve Kit, 10AN - 20-0534-10

Radium Engineering 20-0534-10 universal check valve kit, 10AN. The 20-0534 check valve body with adapter fittings that convert both inlet and outlet to 10AN male and/or 10AN female. A 1-way check valve permits flow in 1 direction only.

• Spring-loaded piston check valve with a lightweight anodized aluminum body
• FKM body and plunger seals, stainless steel hardware, spring and plunger
• Internal plunger has an aerodynamic shape intended for smooth laminar flow
• Flow direction is laser etched on the side of the part
• Cracking pressure: 0.3 psi at 70 F
• Maximum operating pressure: 1000+ psi at 70 F
• Backflow holding pressure: 1000+ psi at 70 F
• Large hex: 30 mm (1-3/16 in)
• Length without adapters: 1.72 in (43.6 mm)
• All female AN ports accept 37 degree flare male and/or ORB male fittings
• Applications listed: gasoline, ethanol, methanol, diesel, water, coolant, oil, etc.

Included

• 20-0534 check valve body
• Adapter fittings for 10AN inlet and outlet

Fitment

• Universal. No specific vehicle applications are listed. (Source: Radium Engineering)
