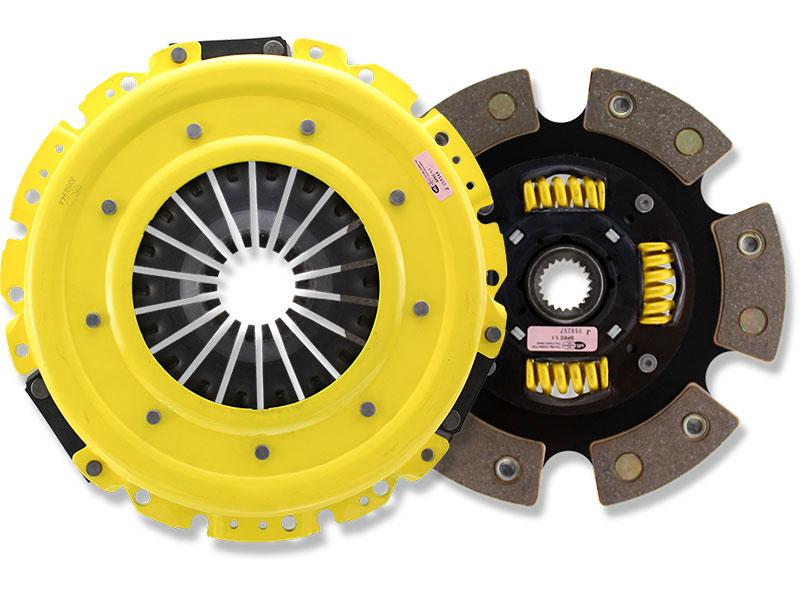

    ACT NS3-HDG6 CLUTCH (PUSH TYPE RB20/25/26) 525FT/LBS

    $705.99 CAD

    ACT NS3-HDG6 CLUTCH (PUSH TYPE RB20/25/26) 525FT/LBS is backordered and will ship as soon as it is back in stock.


    Delivery and Shipping

    Free Ground Shipping In Canada Over $250 Live Now! - Applied Automatically At Checkout - Freight & Oversize Excluded

    This clutch is normally regular stock. If it shows 0 in stock you may still purchase one of the units we have on order. Please contact us for an ETA if stock shows 0.


    Specifications


    Item Description HD/Race Sprung 6 Pad
    Product Weight (lbs.) 19.1
    Torque Capacity (ft/lbs.) 525
    Torque Capacity Over OE 86%
    Disc Material Ceramic
    Clutch Disc Diameter (Inches) 9.4
    Clutch Disc Diameter (Millimeters) 240
    Input Shaft Diameter (inches) 1
    Pressure Plate Type Heavy Duty
    Warranty 12 Months (view details)

    Description

    NS3-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

    Description
    Feel Light to moderate pedal effort, aggressive engagement, OE to mild gear rattle
    Life Moderate friction life, extended by ACT's exclusive diaphragm design
    Quality Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
    Recommended Use Recommended for high horsepower street or race use
    ACT Difference 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability
