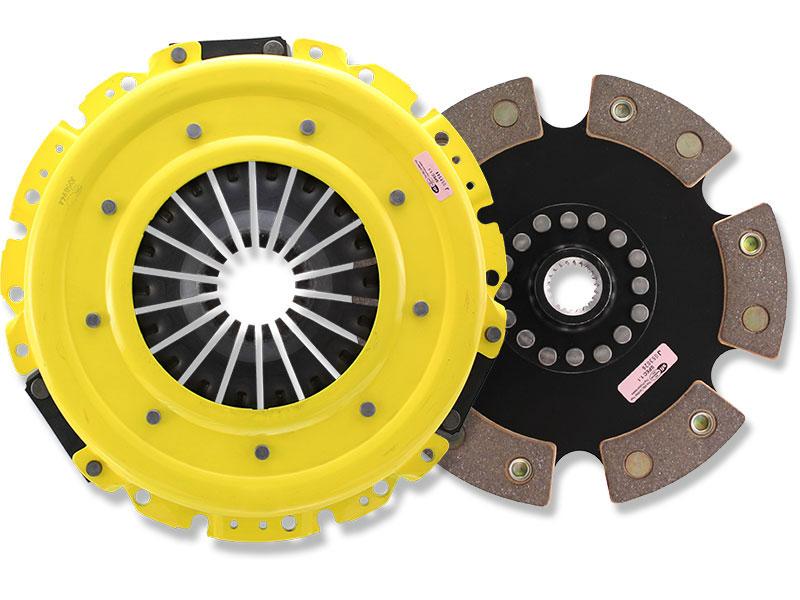

ACT NS3-HDR6 CLUTCH (PUSH TYPE RB20/25/26) 525FT/LBS 6 PUCK UNSPRUNG - Boost Factory

ACT NS3-HDR6 CLUTCH (PUSH TYPE RB20/25/26) 525FT/LBS 6 PUCK UNSPRUNG

  • $629.00




THIS KIT IS A SPECIAL ORDER. USUALLY SHIPS 2-3 WEEKS FROM ORDER DATE.



Specifications


Item Description HD/Race Rigid 6 Pad
Product Weight (lbs.) 17
Torque Capacity (ft/lbs.) 525
Torque Capacity Over OE 86%
Disc Material Ceramic
Clutch Disc Diameter (Inches) 9.4
Clutch Disc Diameter (Millimeters) 240
Input Shaft Diameter (inches) 1
Pressure Plate Type Heavy Duty
Warranty 12 Months (view details)

Description

NS3-HDR6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.

Description
Feel Light to moderate pedal effort, aggressive engagement, increased gear rattle
Life Moderate friction life, extended by ACT's exclusive diaphragm design, rigid design may increase spline wear
Quality Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
Recommended Use Recommended for race use only
ACT Difference 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability
