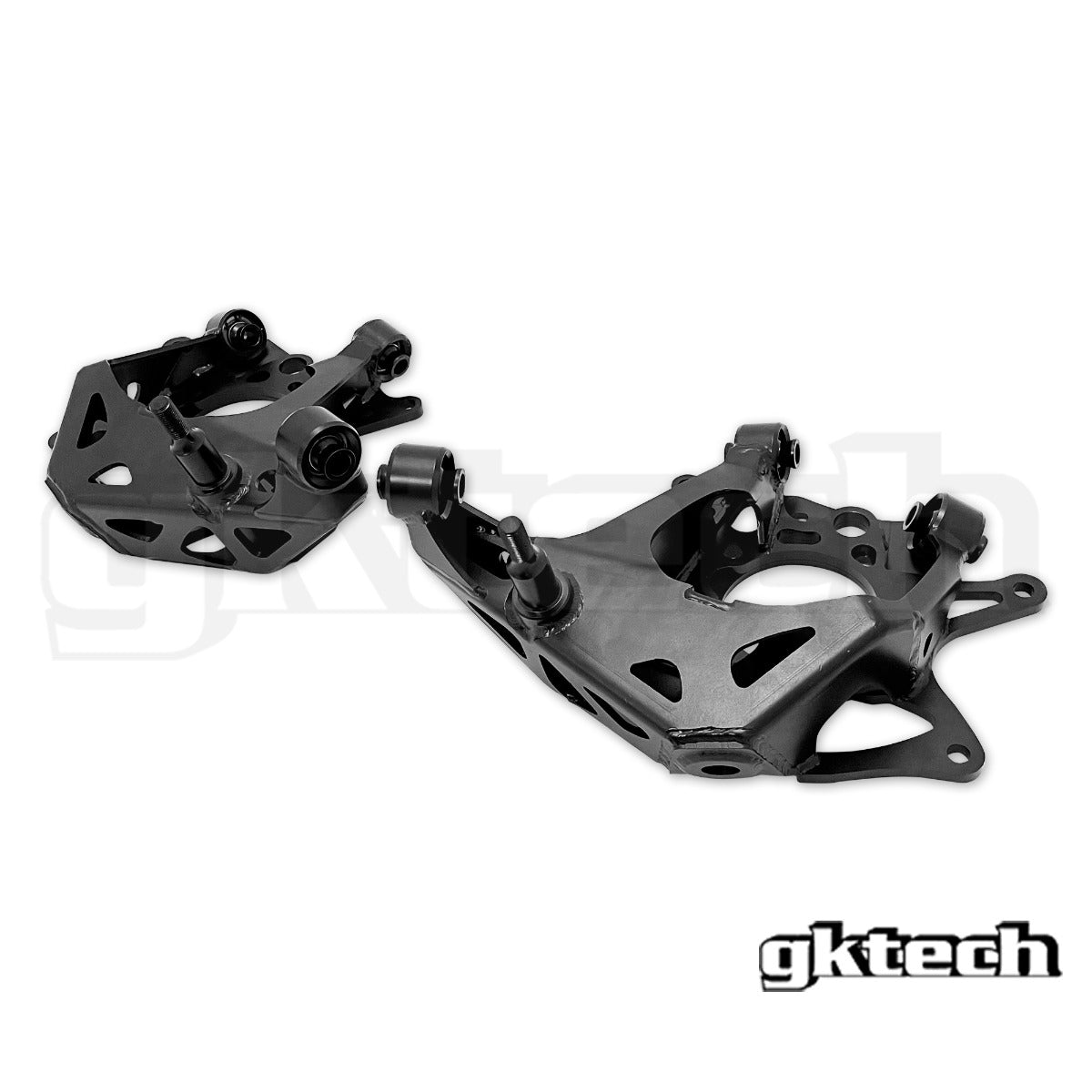

GKTech V2 rear knuckles with new kinematics for Nissan 240SX, Skyline and Z32. Part number REAR-KNCK.
- Lightweight drop knuckle with a 40mm drop, made for cars about 40mm lower than factory ride height. Fully dressed weight (bearings, spacers, circlips) is 8.6 lb versus 11.2 lb for a standard knuckle
- Different suspension arm mounting points change the kinematics: more anti-squat, improved camber gain curve for even tire wear, bump steer optimized for toe-in under compression, and a raised roll center
- PTFE lined spherical bearings throughout, in a common size for easy replacement (QA1/FK part number COM10T)
- Dual caliper brackets are included, so you can run dual calipers without spacing the rotor out, and keep the drum brake in its standard position with single or dual calipers. Provision for the Wilwood 120-10188 caliper as a dual caliper with the OEM 9mm solid rotor
- OEM GTS-T/GT-R/Z32 2 piston calipers are a direct fit and the OEM drum assembly fits as OEM. OEM S-chassis single piston calipers can be used single or dual, but the OEM handbrake lever will not fit without modifications; alternatively use the single piston caliper as the foot brake and the Wilwood 120-10188 as the handbrake caliper
- Clearance for larger GTR drive shafts; clears 17" rims (and 16" rims with low offsets) and all 18" rims. A 17x10.5 +22 Enkei RPF1 was tested with about 5mm of clearance at the toe arm mount
- Install: mount with the bearing mounting holes perpendicular to the ground at static height. Extended LCAs that push the wheel to the rear of the arch will not work well, or at all if extended too far
- Aftermarket camber, toe and traction rods ARE required and MUST have rose joints, because the mounting points are significantly altered. LCAs can be OEM or aftermarket; OEM LCA bushings will produce different bump steer curves
- For best results use an S14/S15/R33/R34 subframe, or the GKTech S13/R32 LCA anti-squat kit on an S13/R32 subframe. Suggested traction arm length: 210mm (S13/R32 subframe), 200mm (S14/S15/R33/R34 subframe) or 225mm (S13/R32 with the anti-squat kit), measured centre hole to centre hole
- Will fit all GTR and Z32 chassis with an S chassis style lower coilover mount
Fitment
- Nissan S13 CA18 180SX
- Nissan R32 Skyline GTS-T
- Nissan S13 SR20 Silvia
- Nissan S13 CA18 Silvia
- Nissan S13 SR20 180SX
- Nissan S14 200SX/Silvia
- Nissan S15 200SX/Silvia
- Nissan R33 Skyline GTS-T
- Nissan R33 Skyline GTR
- Nissan Z32 300ZX
Contact us if you are unsure of fitment or Size HERE
