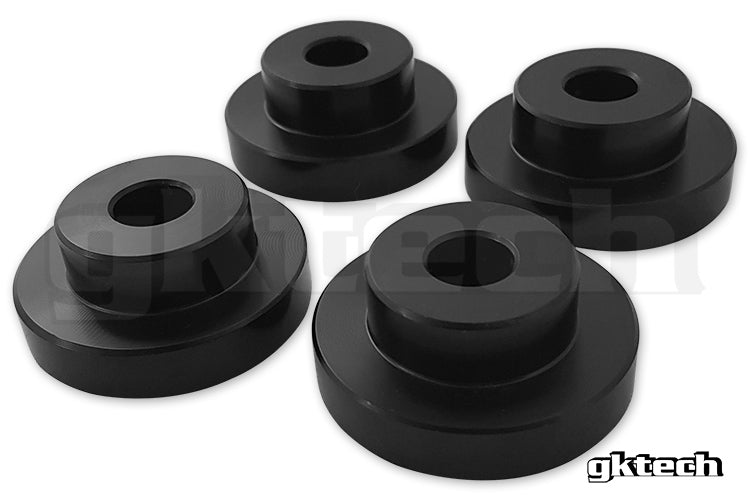

GKTech S13 / R32 Solid Front Diff Bushings, part number S13X-DIFF. For installing an S14/S15/R33/R34 diff in an S13/R32 subframe.
- Used when installing an S14/S15/R33/R34 diff in an S13/R32 subframe
- S14/S15/R33/R34 diffs have bushings on both the front and rear of the diff, S13/R32 diffs do not. Use the original rear diff cover and install these bushings to position the front of the diff correctly
- Solid design keeps diff movement within the subframe to a minimum
- CNC machined from 6061-T6 aluminium
- 4 piece set (front bushings only)
- Installs by hand, no press needed
- Longer front mount bolts are required when installing an S14/S15/R33/R34 diff in an S13/R32 subframe (20mm longer = 80mm thread length). Nissan OEM part number is 55424-33P00
- Expect a small increase in noise and vibration from the more rigid mounting. Standard S13/R32 diffs are already solid mounted
Fitment
- Nissan S13 240SX
- Nissan S13 Silvia / 180SX
- Nissan Skyline R32 GTS-T (2WD)
- Nissan Z32 300ZX TT (R230)
Contact us if you are unsure of fitment or Size HERE
