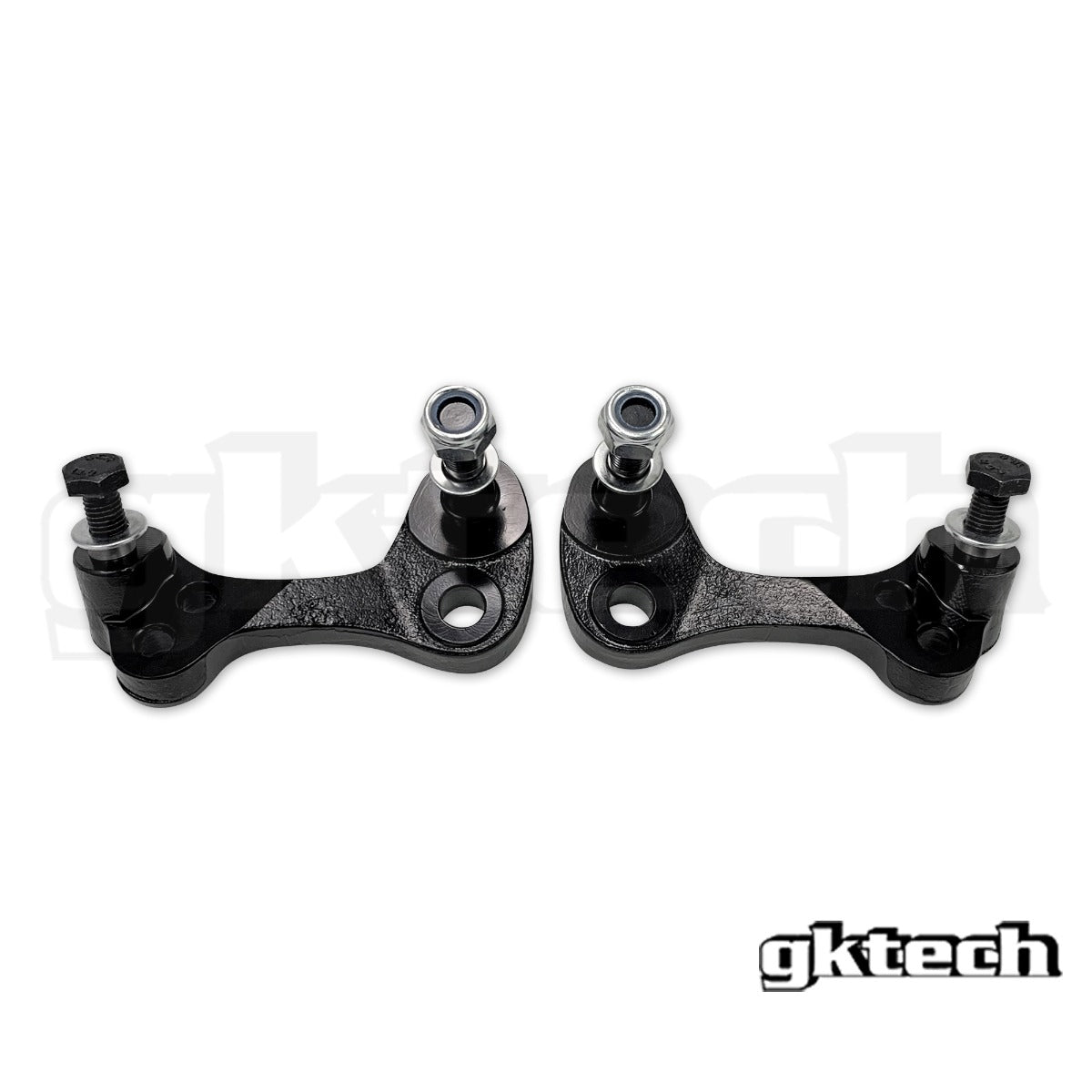

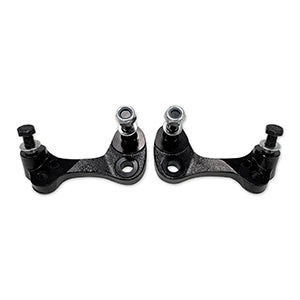

GKTech - V2 S14 240sx bolt on angle kit (RCC Kit) - S145XRCK

GKTech V2 bolt on angle kit (roll center correction kit, RCC kit) for the Nissan S14 and S15. Part number S145XRCK.

• Made from 1030 forged steel
• 1.57" (40mm) of roll center correction and 1.57" (40mm) of bump steer correction; also repositions the steering arm for more steering lock
• Two tie rod positions: the position furthest from the ball joint is the Grip position (less lock increase); the position closest to the ball joint is the Drift position (faster steering, lower ackerman and the most lock)
• Bolts to the bottom of the standard knuckle and can be removed with no ramifications
• A wheel alignment is required after installation, as the kit changes both camber and toe
• Offset rack spacers (sold separately) help avoid steering bind if you run a lot of camber or caster
• Note: The kit pushes the bottom of the wheel out 0.98" (25mm), which increases camber, so it is best used with adjustable camber tops. Without them you will run about -3 degrees or more of negative camber depending on ride height. It also increases scrub radius like a wheel spacer or lower offset wheel would, so clearance can be an issue with wheels lower than +20 offset or wider than 10 inches.

Fitment

• Nissan S14 200SX/Silvia
• Nissan S15 200SX/Silvia

Contact us if you are unsure of fitment or Size HERE
