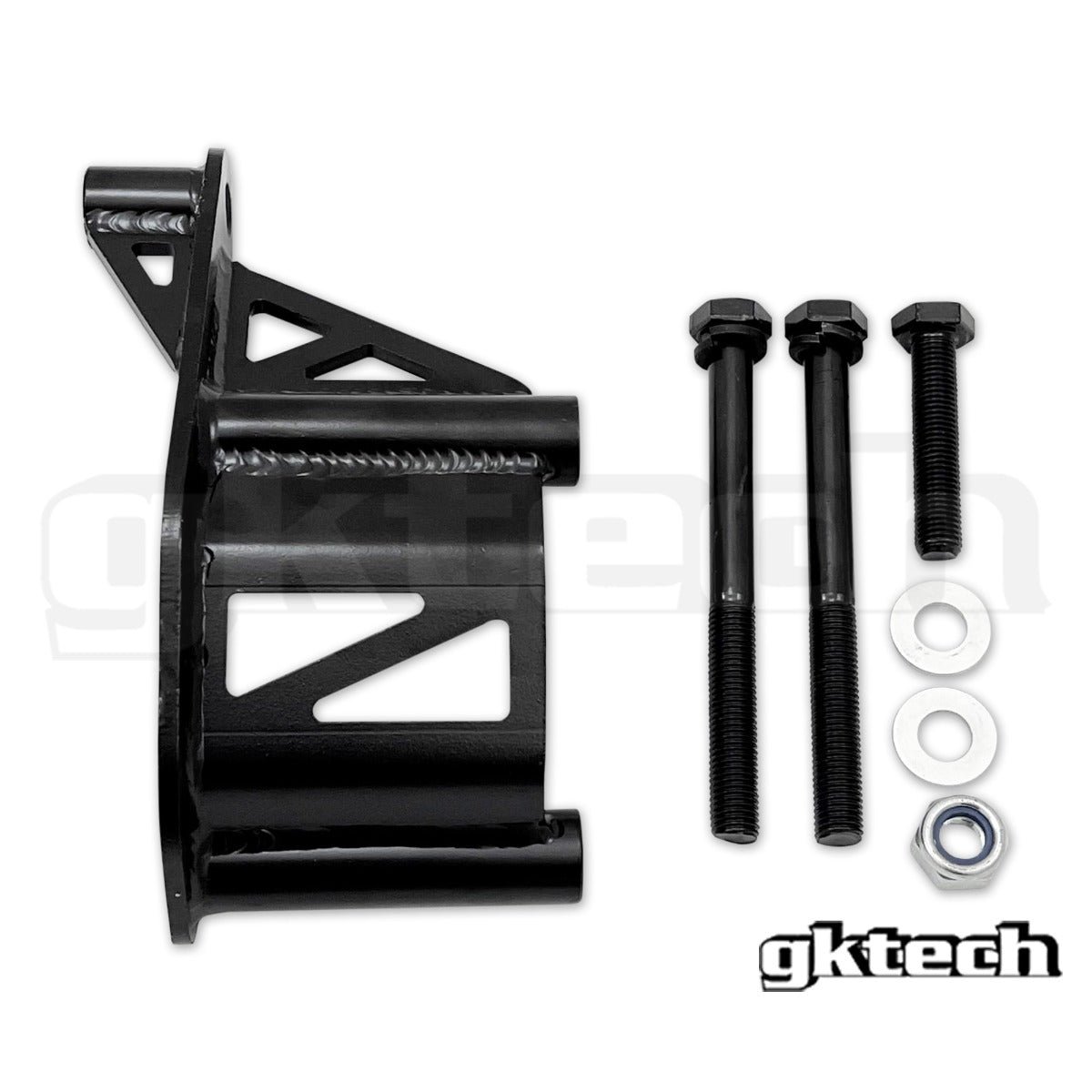

GKTech S/R chassis diff brace for 350Z/370Z diff conversions, part number S14X-DBRC.
- Adds support to the diff to reduce wheel hop under hard driving; the OEM diff cover uses a single bush and stud that wears prematurely and can allow the rear stud to break off the cover
- Compact, rigid design bolts to the rear sheet metal in the subframe
- Solid steel sheet metal construction, TIG welded and e-coated for rust prevention
- NOTE: Fits 2 bolt R200 subframes only, when running a 350Z or 370Z diff conversion. The 350Z/370Z diff conversion bushes (Z33X-CONV) are required if you do not already have the diff converted
- A 12mm hole must be drilled into the rear sheet metal of the subframe for the support stud; no other fabrication, and nothing else is needed for installation
- Installation takes under 15 minutes with basic tools
- Works with the Nismo diff cover; works with the Z1 diff cover but some modification to the cover fins is required
- Works with the GKTech HICAS lock bar on a two bolt subframe, with slight modification of the brace to clear the lock bar
Fitment
- Nissan S13 Silvia (CA18 and SR20)
- Nissan S13 180SX (CA18 and SR20)
- Nissan S14 200SX/Silvia
- Nissan S15 200SX/Silvia
- Nissan R32 Skyline GTS-T
- Nissan R32 Skyline GT-R
- Nissan R33 Skyline GTS-T
- Nissan R33 Skyline GT-R
- Nissan R34 Skyline GT-T
- Nissan R34 Skyline GT-R
- Nissan C33 Laurel
- Nissan C34 Laurel
- Nissan C35 Laurel
- Nissan Cefiro A31
- Nissan Z32 300ZX
Contact us if you are unsure of fitment or Size HERE
