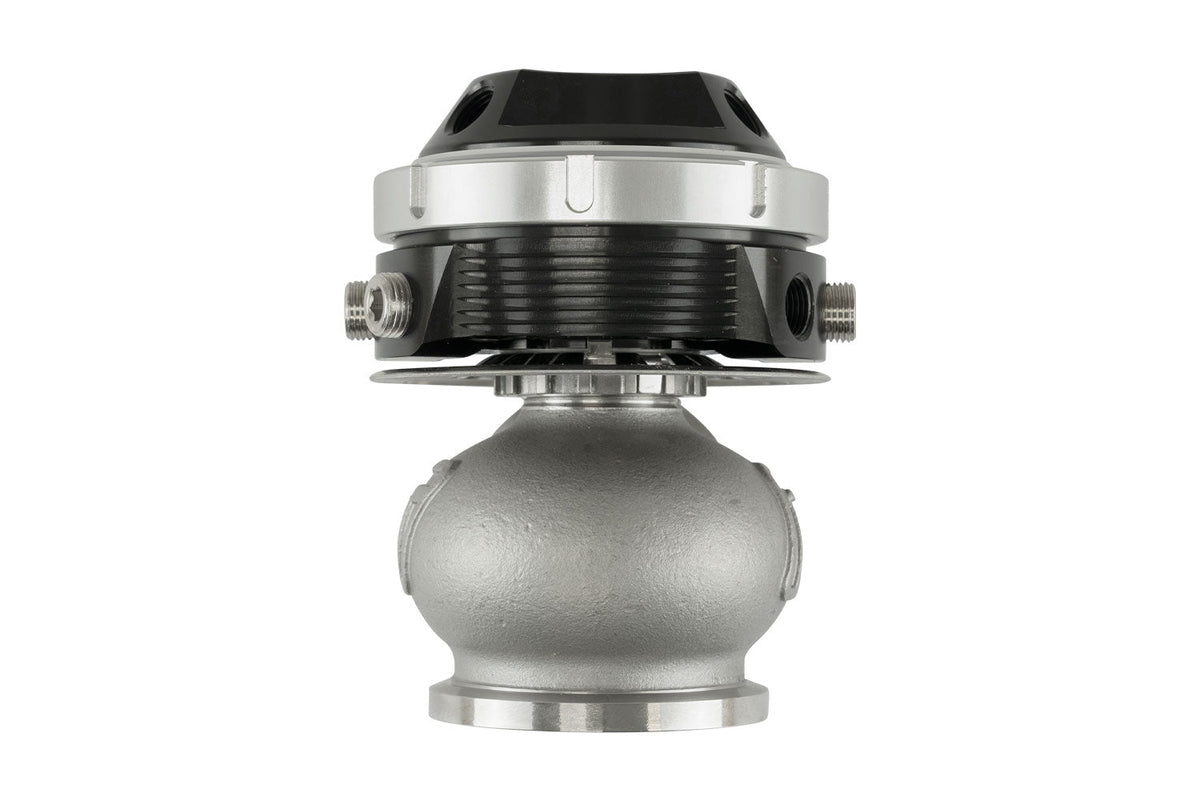

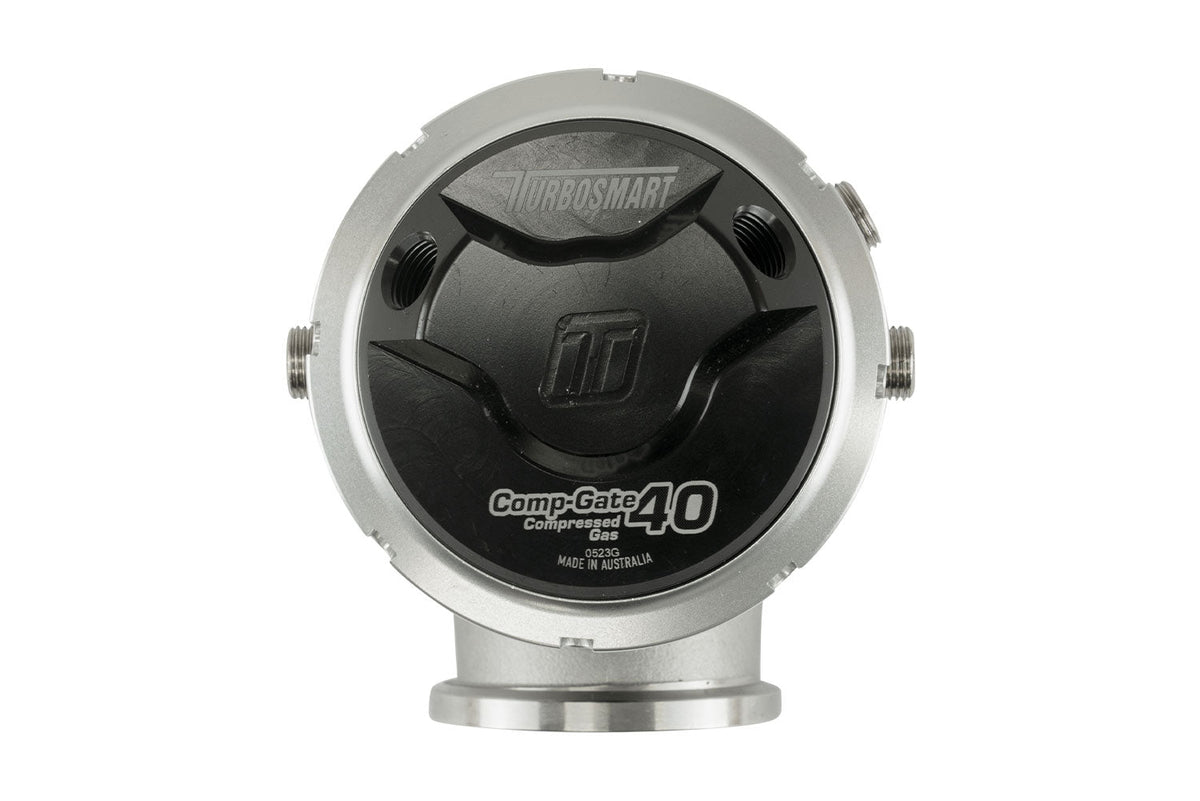

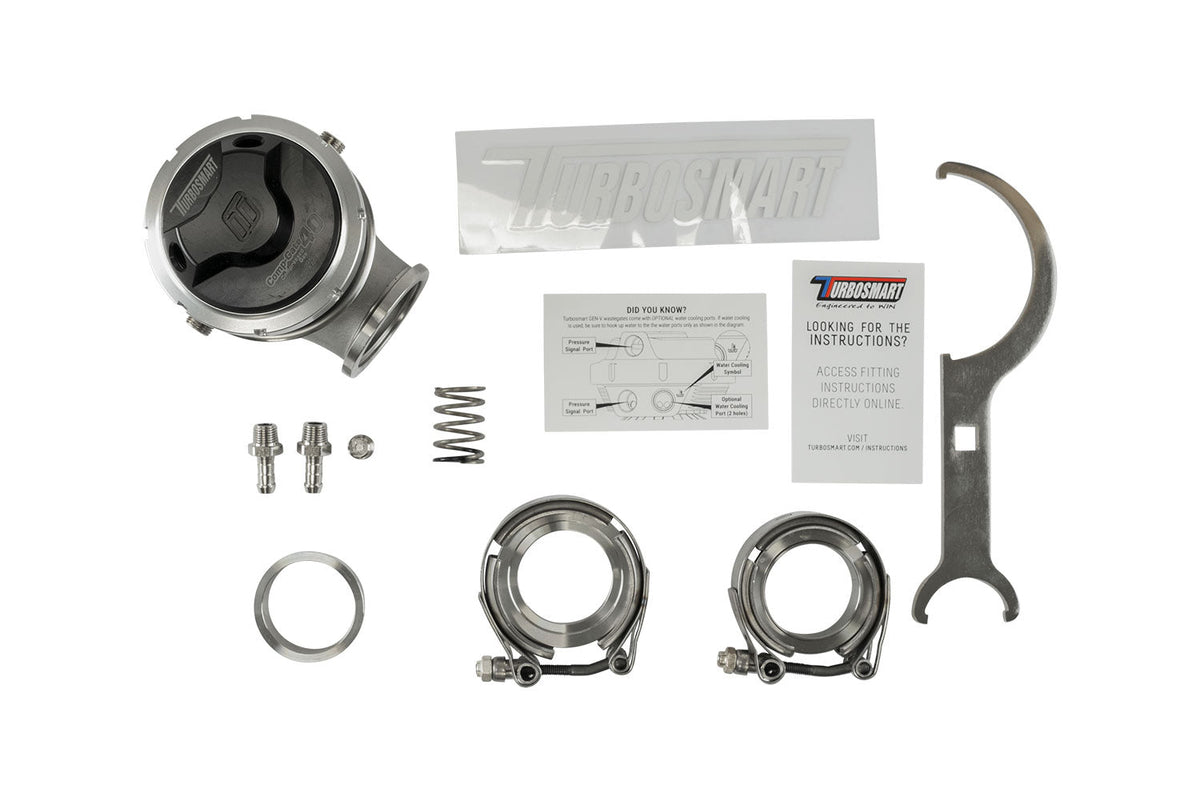

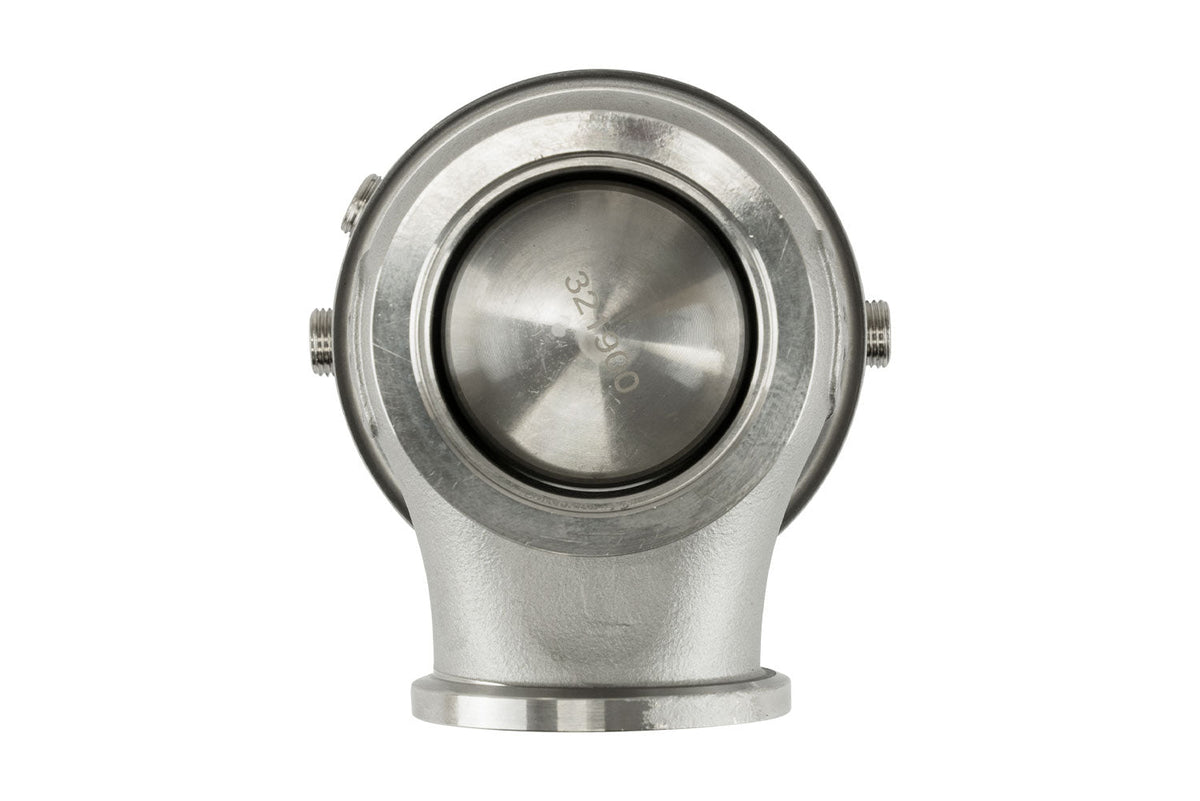

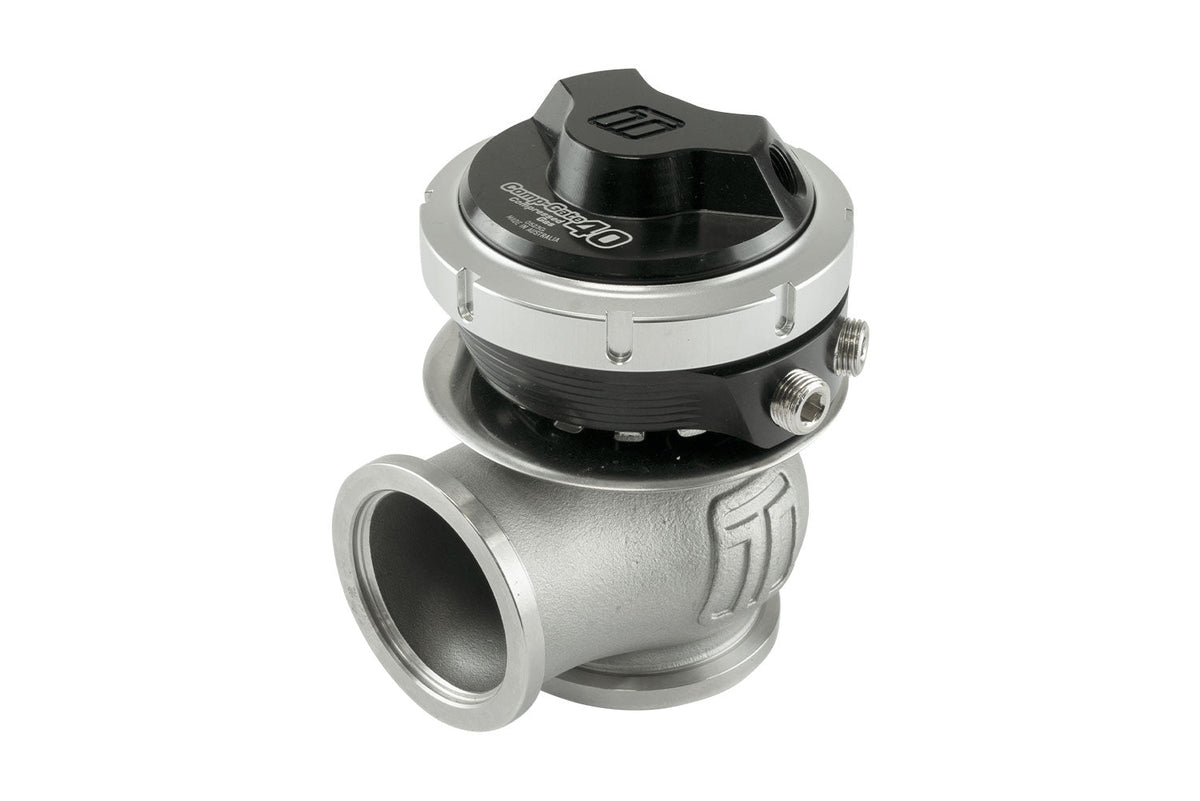

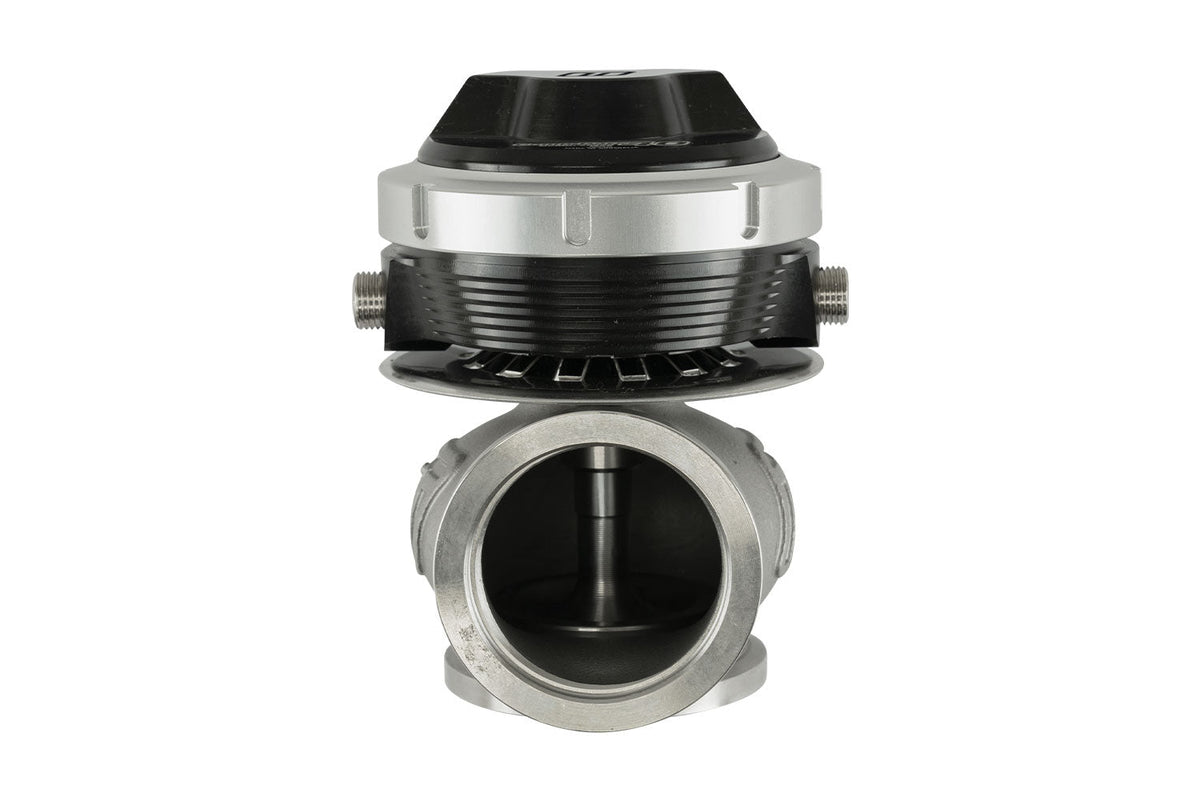

Turbosmart GenV CompGate40CG Compressed Gas 5psi External Wastegate (Black) - TS-0552-1202

Turbosmart GenV CompGate40CG 40mm compressed gas / CO2 external wastegate, 5psi spring, black (TS-0552-1202).

• Designed for control strategies that need a large tuning window and large pressure differentials from the top to lower actuator housings
• Traditional poppet-style gate actuators reach around 2-3x base spring pressure; the CG / CO2 version reaches extreme multiples of base pressure with an additional reference signal, high-pressure gas and CO2
• Inverted diaphragm handles high pressure and high pressure differentials (top to bottom)
• Large boost bandwidth for drag racing, rally and rally RX systems
• Direct-fit upgrade for all Gen4 Turbosmart wastegates
• Collar-locking system and variable actuator cap and base for 360 degree routing of reference hoses
• Strap-type V-band clamps and 1/8" NPT reference ports
• Optional liquid-cooling provision
• Nitronic 60 valve guide and high-temp 347 stainless steel body
• 17-7 PH stainless steel springs

Fitment

• Universal 40mm external wastegate (not vehicle specific) (Source: Turbosmart)

Resources

• Turbosmart product page
• Installation guide
• Installation instructions

Contact us if you are unsure of fitment or Size HERE
