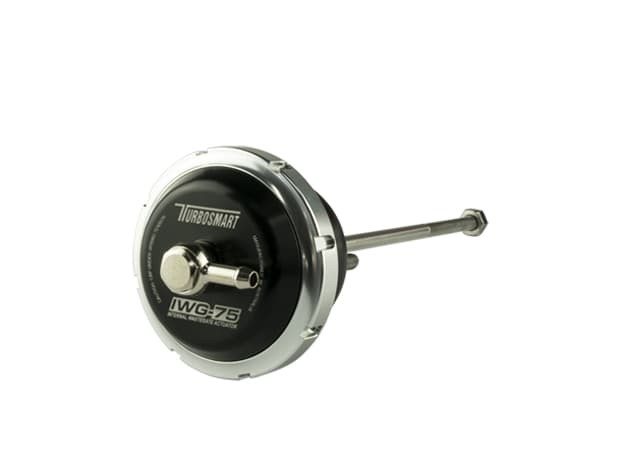

Turbosmart IWG75 Universal Wastegate Actuator (UNF) 150mm 10PSI - TS-0681-5102

Turbosmart IWG75 Universal Wastegate Actuator, single port, 150mm 1/4in UNF threaded rod, 10 PSI, part number TS-0681-5102.

• Larger working ratio than the factory actuator, from a larger effective diaphragm area and revised springs
• At factory base pressure, a broader boost and torque curve with peak boost reached earlier and held to higher RPM. Higher base pressures can add to this but likely need tuning and recalibration
• Silicone Nomex diaphragm
• Choice of springs from 3 psi to 26 psi (optional)
• Billet aluminum body, stainless steel rods and clevis
• Turbosmart locking collar system
• 150mm, 1/4in UNF threaded rod
• Supplied with: actuator, pre-fitted springs, fasteners, swivel hose barb

Fitment

• Universal fitment for a wide range of turbochargers. Fabrication is likely required, including a clevis and brackets. No vehicle-specific fitment is listed. (Source: Turbosmart)

Resources

• Turbosmart product page
• Turbosmart installation guide (PDF)

Contact us if you are unsure of fitment or Size HERE
