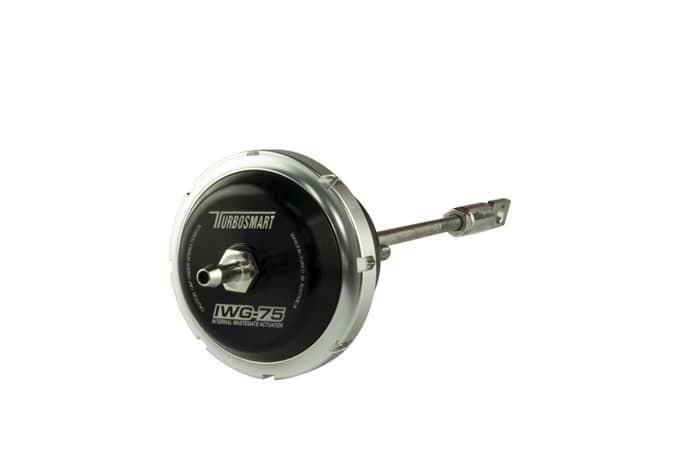

Turbosmart IWG75 Wastegate Actuator Suit Fiat 124 Spider/500T/L/X/Abarth 2012+ 7psi - TS-0629-1072

Turbosmart IWG75 Wastegate Actuator for the Fiat 124 Spider, 500T, 500L, 500X and Abarth (2012+), 7 PSI, part number TS-0629-1072.

• Larger working ratio than the factory actuator, from a larger effective diaphragm area and revised springs
• At factory base pressure, a broader boost and torque curve with peak boost reached earlier and held longer. Higher base pressures can add to this but likely need tuning and recalibration
• The 7 PSI version is a direct replacement and works with factory calibration. Other spring combinations need supporting modifications or tuning
• Proprietary silicone Nomex diaphragm
• Choice of springs from 3 psi to 26 psi (optional)
• High-grade billet aluminum construction
• Stainless steel rods and clevis
• Turbosmart locking collar system
• Supplied with: actuator, pre-fitted springs, fasteners, swivel hose barb

Fitment

• Fiat 124 Spider, 500T, 500L, 500X and Abarth, 2012+, 1.4L MultiAir engine, bolt-on for the factory turbo. The product description names the 1.4L MultiAir fitment; the 500L and 500X appear in the title only. (Source: Turbosmart)

Resources

• Turbosmart product page
• Turbosmart installation guide (PDF)

Contact us if you are unsure of fitment or Size HERE
