Turbosmart ProOPR Rising Rate Turbo Oil Pressure Regulator - TS-0801-1012

Turbosmart ProOPR Rising Rate Turbo Oil Pressure Regulator, single outlet, part number TS-0801-1012.

• Rising-rate, boost-referenced oil pressure regulator for large turbochargers and high-boost builds
• Runs lower oil pressure at low boost and raises supply pressure to the bearings as boost increases
• Single-outlet, inline, returnless design that uses a boost reference to create the pressure differential
• Targets about 15-18 psi at or under zero boost, rising at roughly 0.6-0.7:1 against boost until maximum oil pressure or maximum boost is reached, whichever comes first
• Regulates down only. It cannot raise pressure above the supply
• Anodized aluminum (6262 T6) body and valve
• Ports: 1 x 1/8 NPT sensor/gauge port, 1 x 1/8 NPT boost reference port, 1 x -4AN inlet, 1 x -4AN outlet
• Built-in, serviceable 44 micron stainless steel mesh filter
• Suitable for all engine oils
• Take the boost reference from the compressor cover or nearby charge pipe, not the intake manifold
• Intended for Pro-Mod and similar motorsport using large-frame turbos and high boost. The fixed-pressure OPR V2 suits most other applications

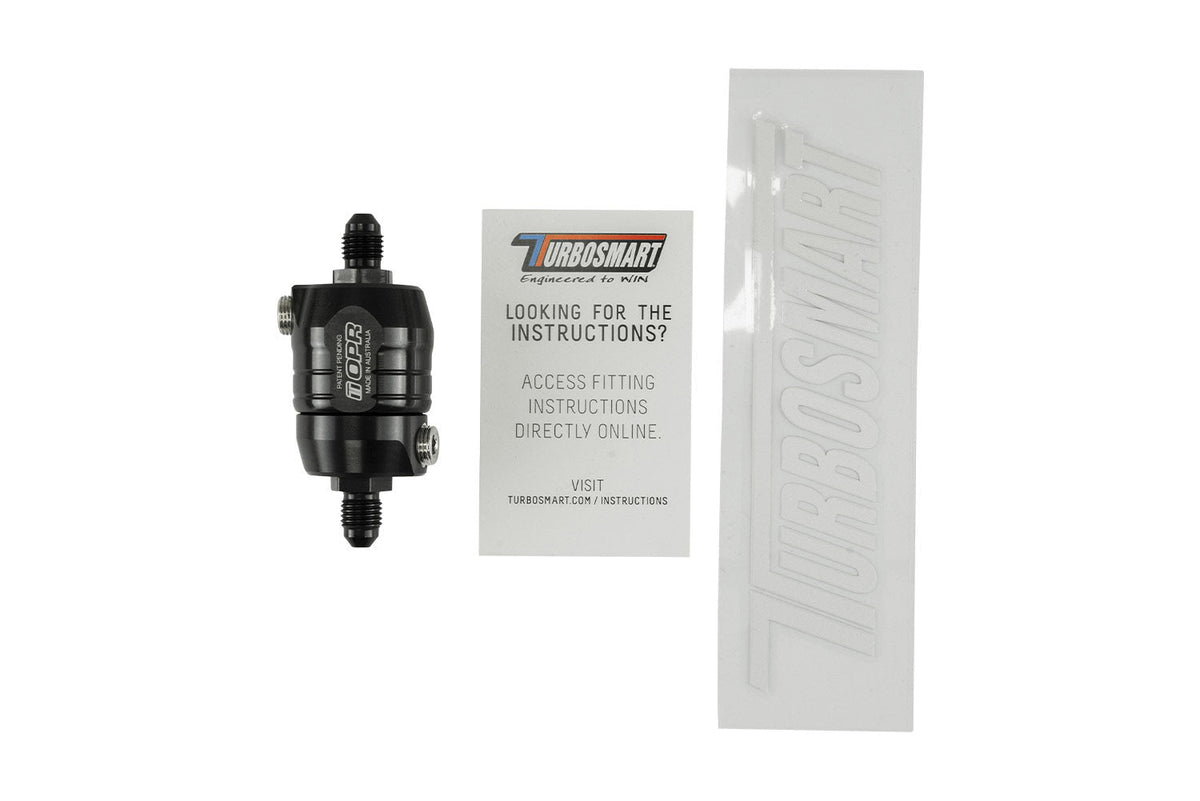

• Supplied with: 1 x oil pressure regulator, 2 x 1/8 NPT blanking plugs, 1 x Turbosmart decal

Fitment

• Single-turbo systems on large-frame turbochargers and high-boost motorsport builds. No vehicle-specific fitment is listed. (Source: Turbosmart)

Resources

• Turbosmart product page
• Turbosmart installation guide
