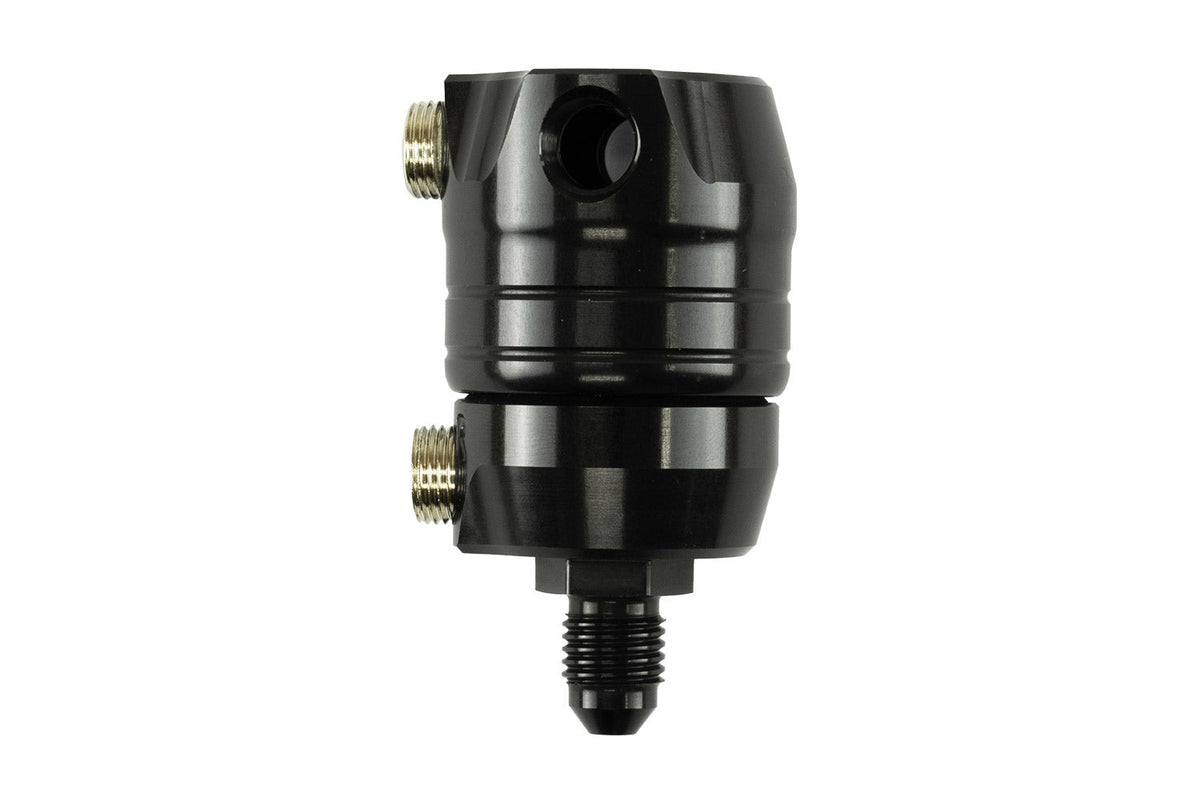

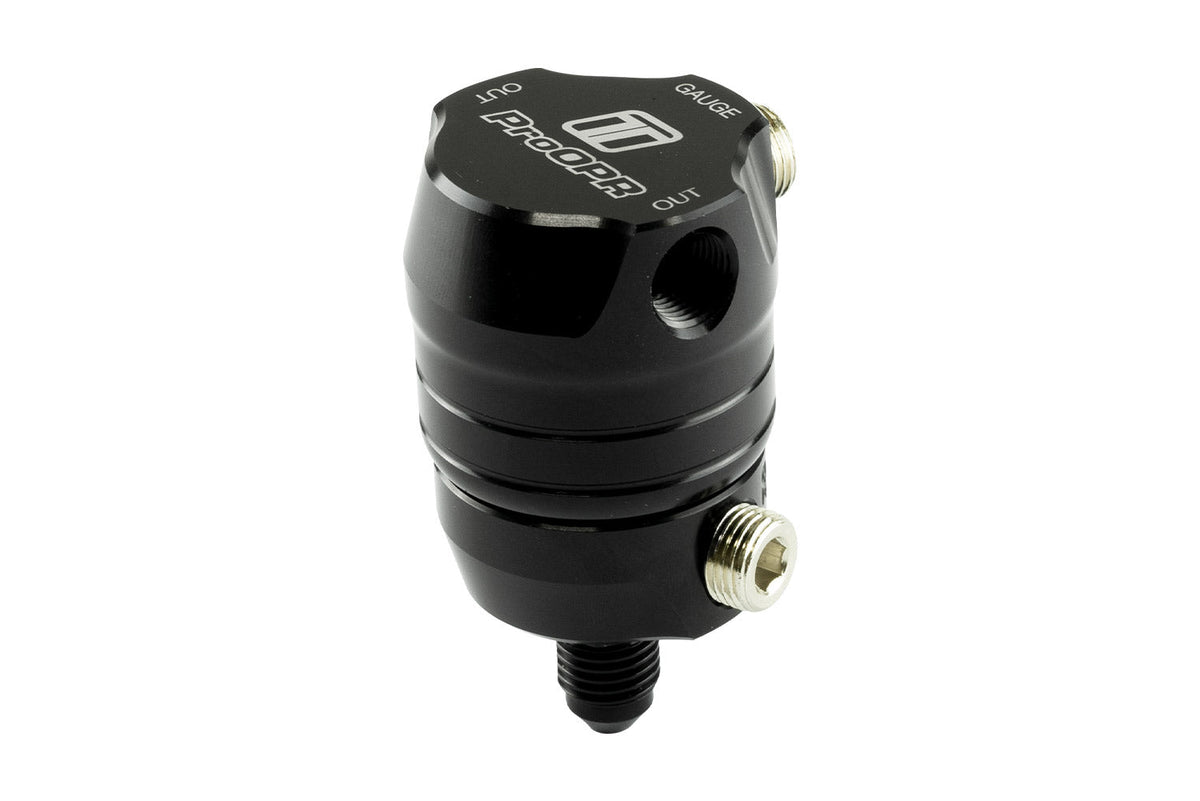

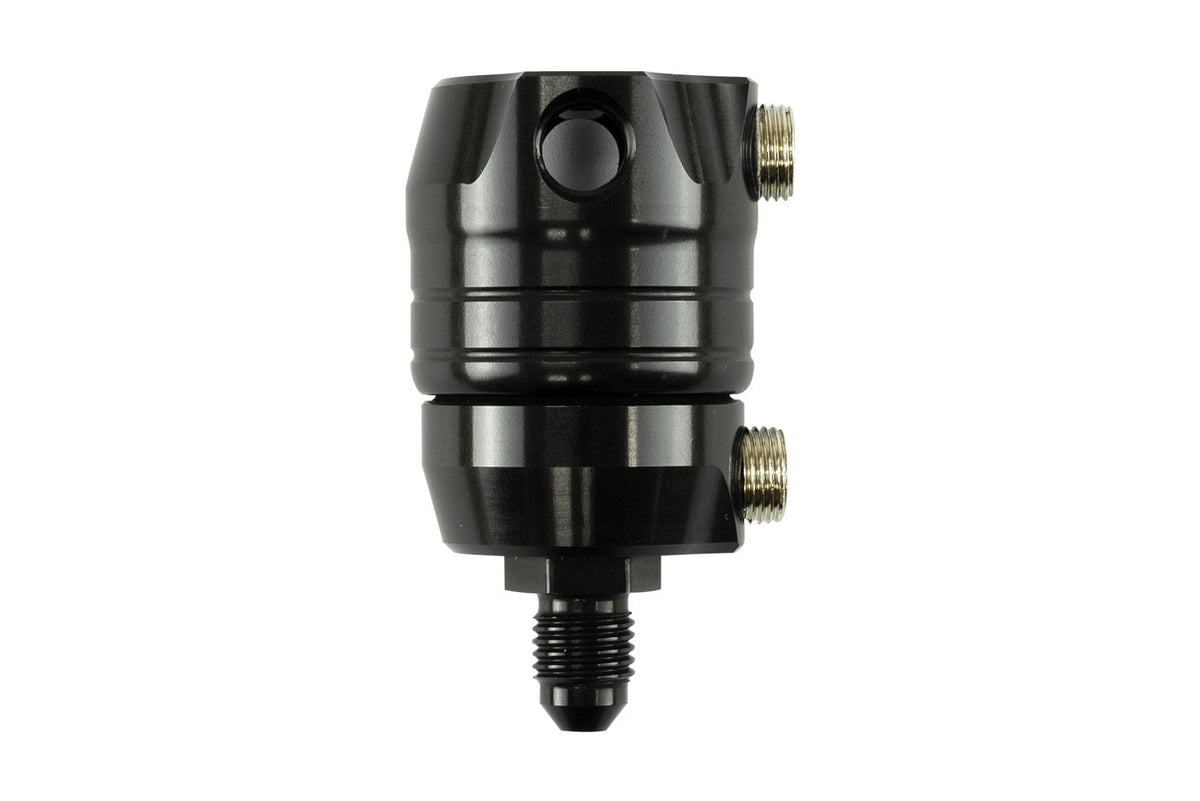

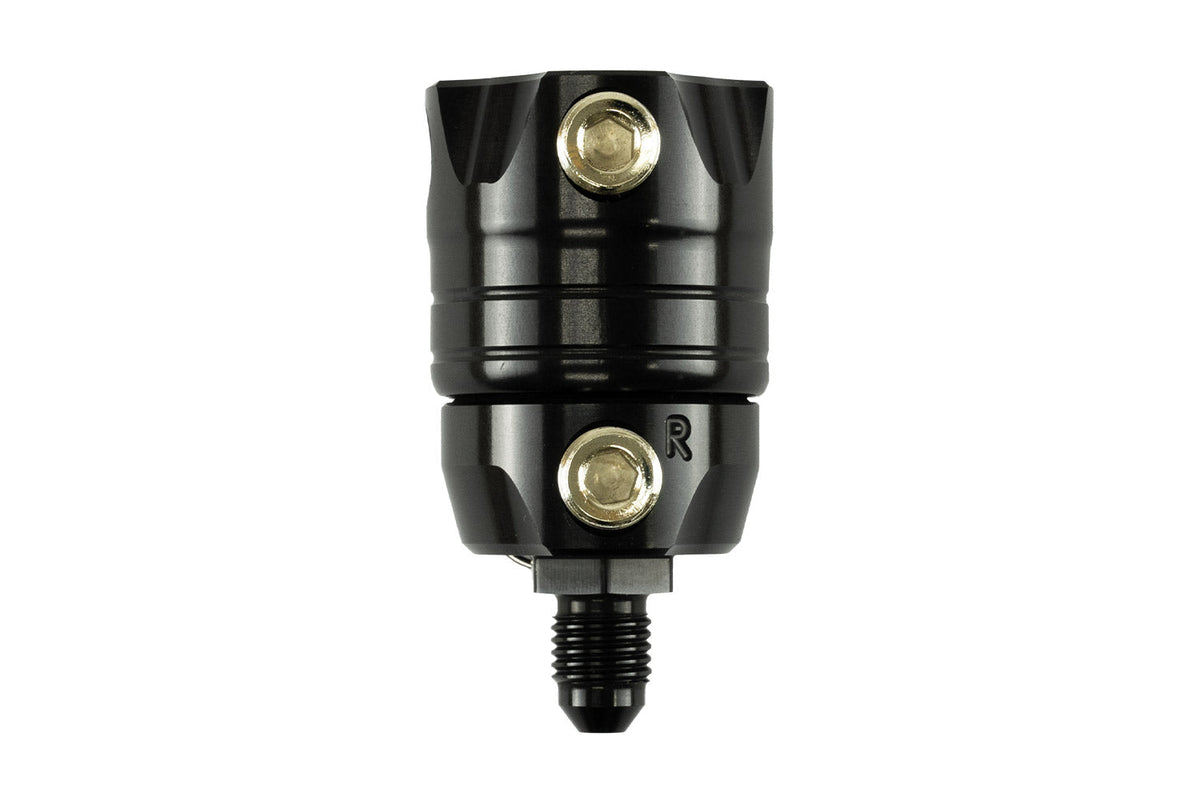

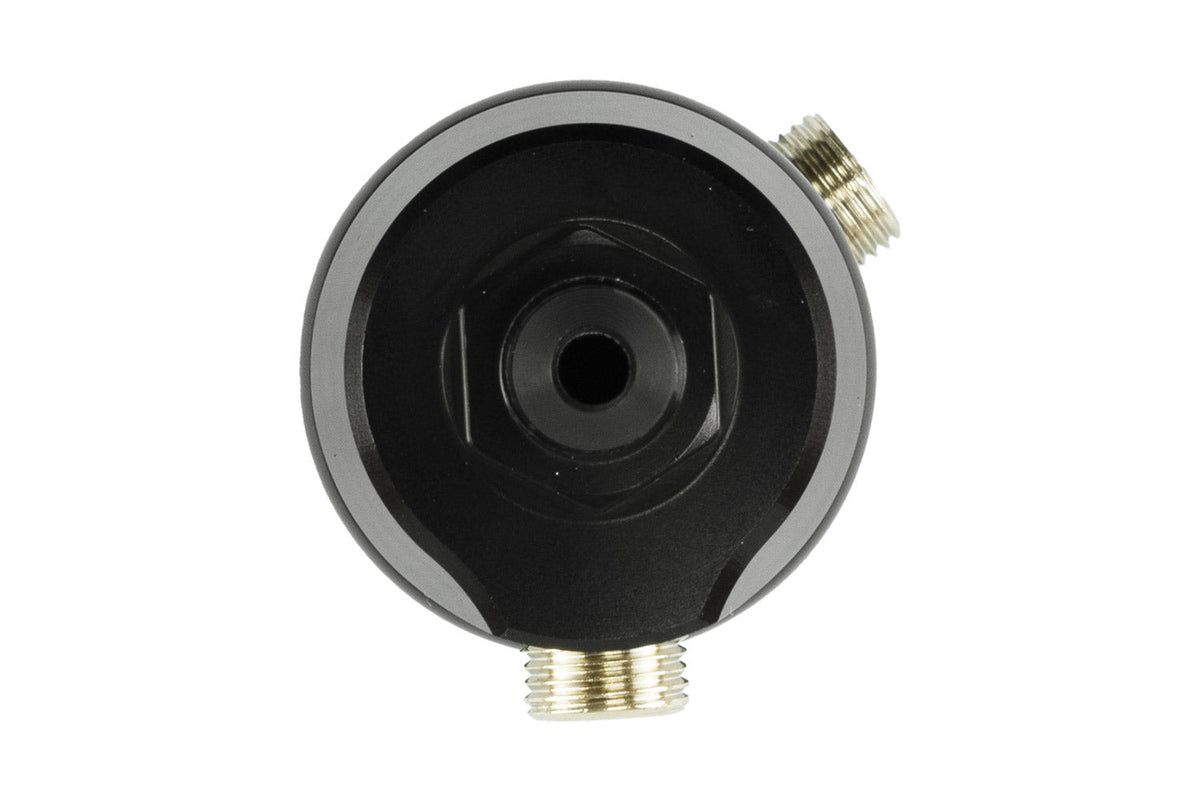

Turbosmart ProOPR Rising Rate Turbo Oil Pressure Regulator (Twin Outlet) - TS-0811-1212

Turbosmart ProOPR Rising Rate Turbo Oil Pressure Regulator, twin outlet, part number TS-0811-1212.

• Boost-referenced, rising-rate oil pressure regulator that lowers oil pressure at low boost and raises it as boost climbs
• Twin outlets create a T in the turbo oil supply line for up to two turbochargers
• Inline, returnless design that uses a boost reference to create a pressure differential
• Anodized aluminum body and valve
• Ports: 1 x 1/8 NPT sensor/gauge port, 1 x 1/8 NPT boost reference port, 1 x -4AN inlet, 2 x 1/8 NPT regulated oil outlets
• Built-in, serviceable 44 micron stainless steel mesh filter
• Suitable for all engine oils
• Targets about 15-18 psi at or under zero boost, rising at roughly 0.6-0.7:1 against boost until maximum oil pressure or maximum boost is reached, whichever comes first. Regulates down only
• Designed for large-frame turbo systems and high-boost applications such as Pro-Mod and similar motorsport. The fixed-rate OPR V2 suits most enthusiasts
• Take the boost reference from the compressor cover or nearby charge pipe, not the intake manifold
• Designed and manufactured in Australia

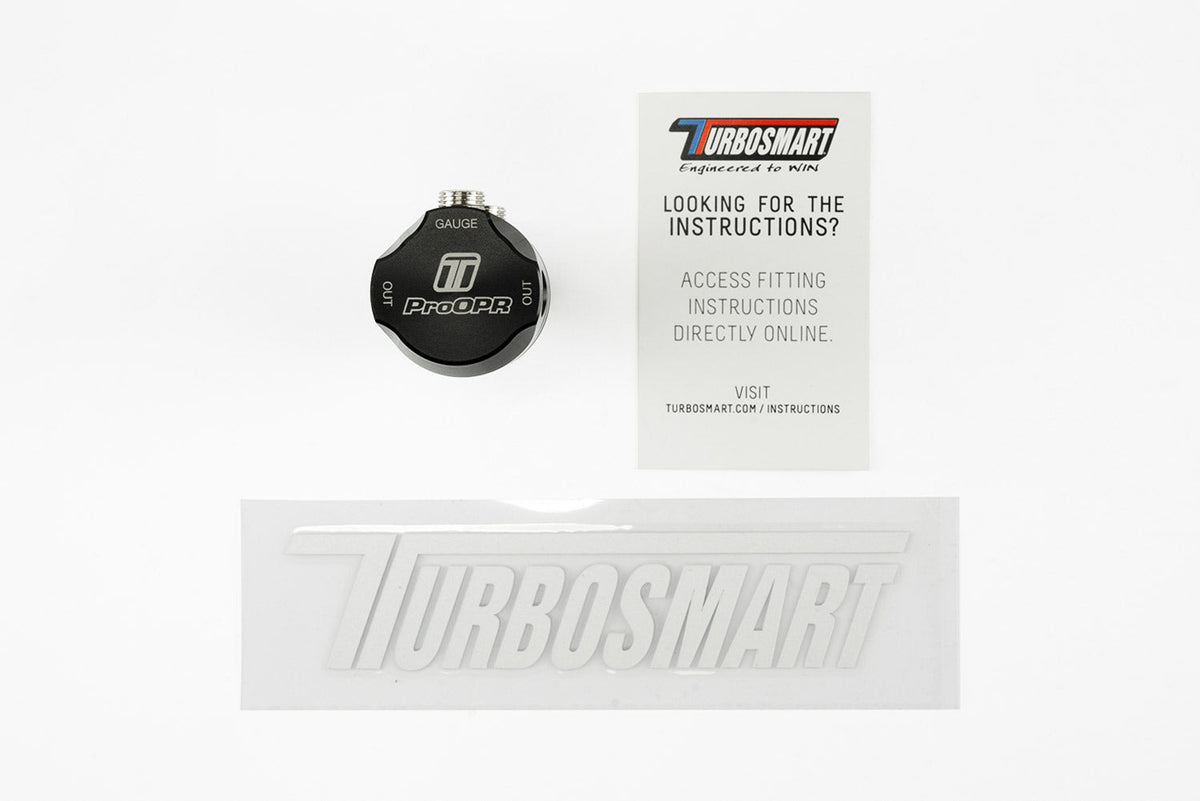

• Supplied with: 1 x oil pressure regulator, 2 x 1/8 NPT blanking plugs, 1 x Turbosmart decal

Fitment

• Large turbocharger systems and high-boost builds, particularly drag racing and Pro-Mod. No vehicle-specific fitment is listed. (Source: Turbosmart)

Resources

• Turbosmart product page
• Turbosmart installation guide
