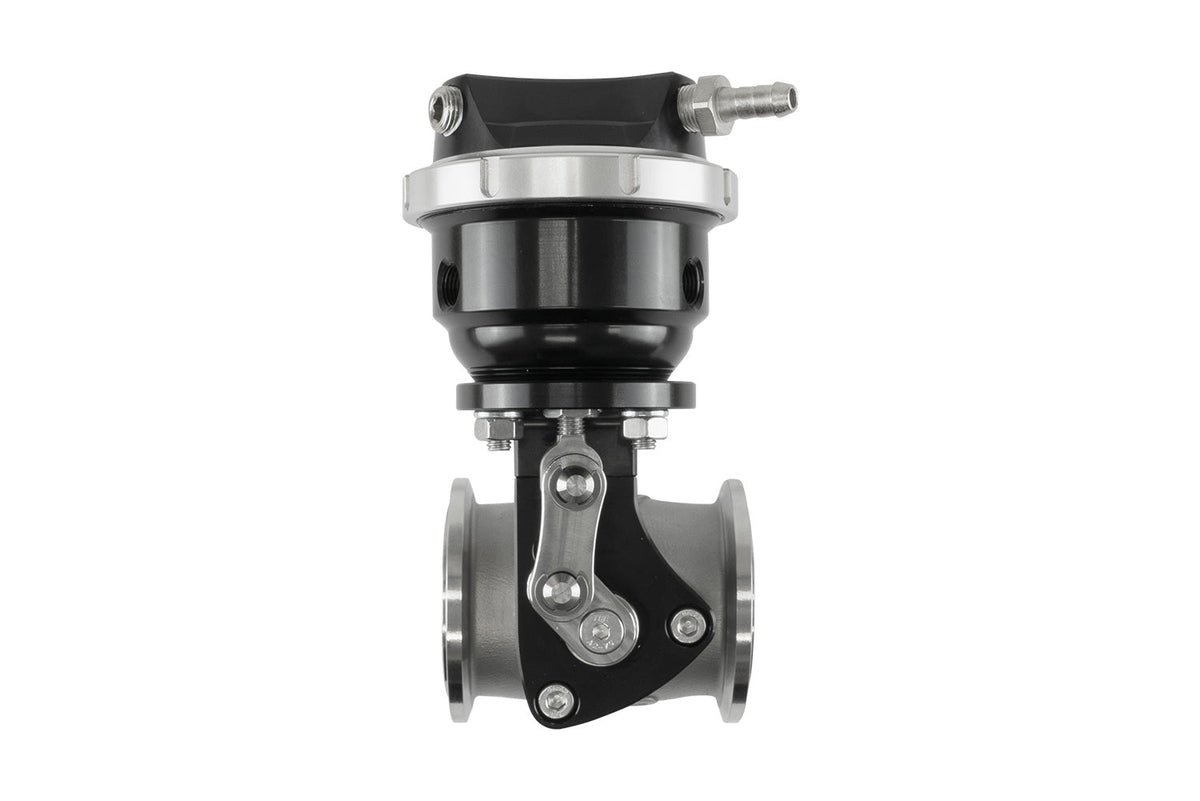

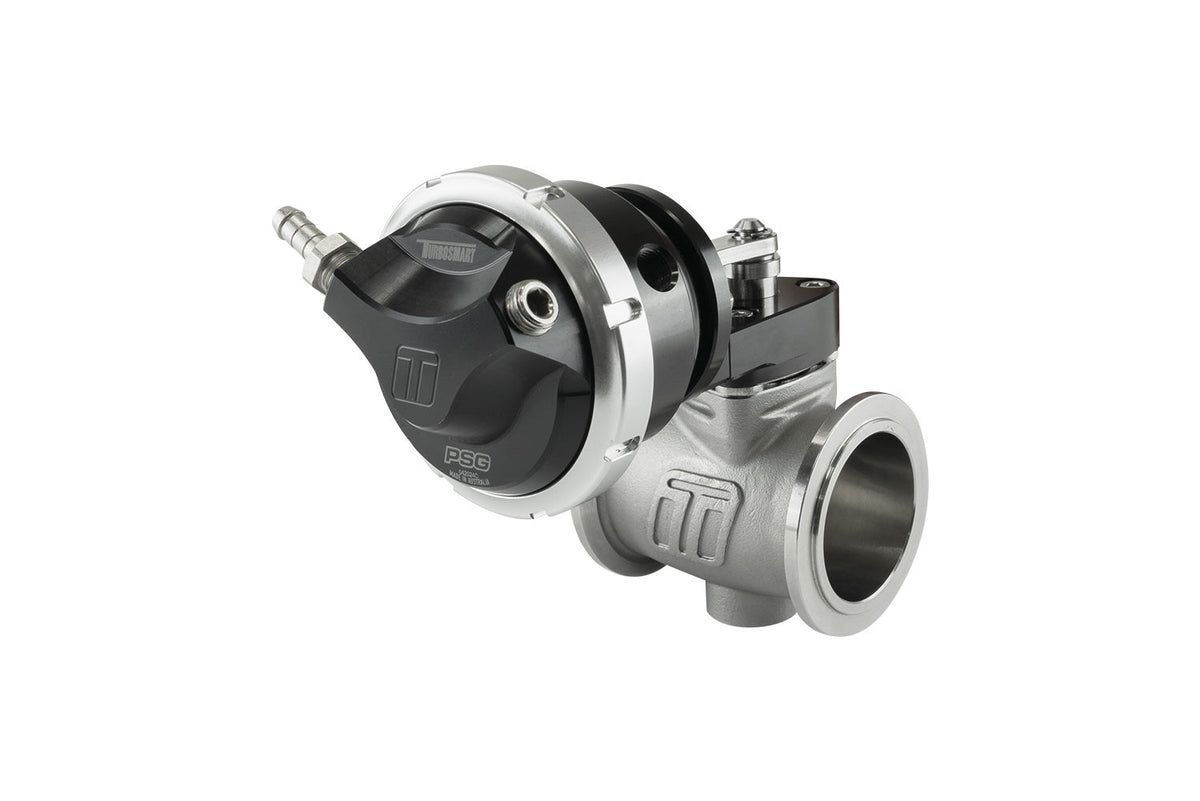

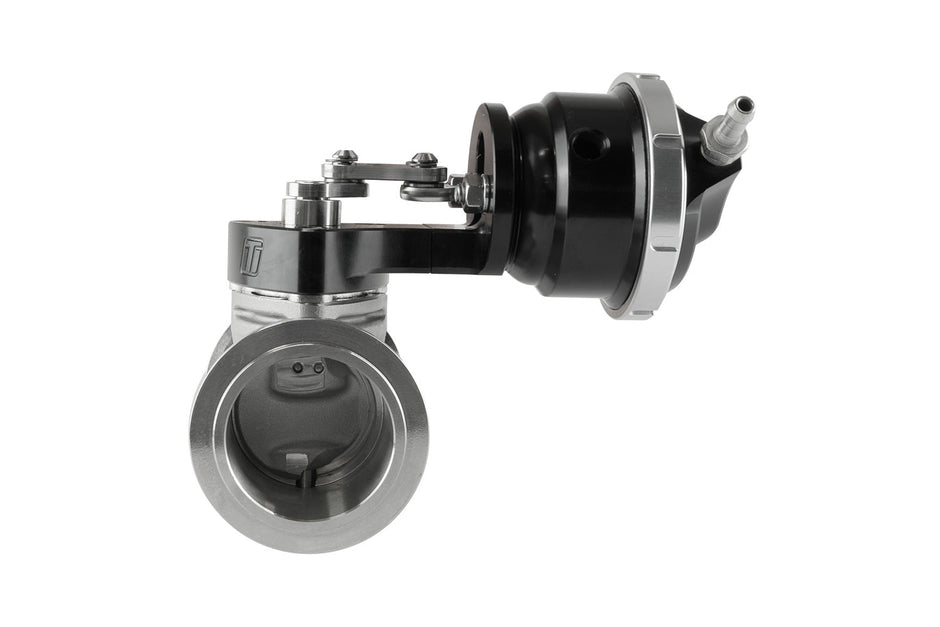

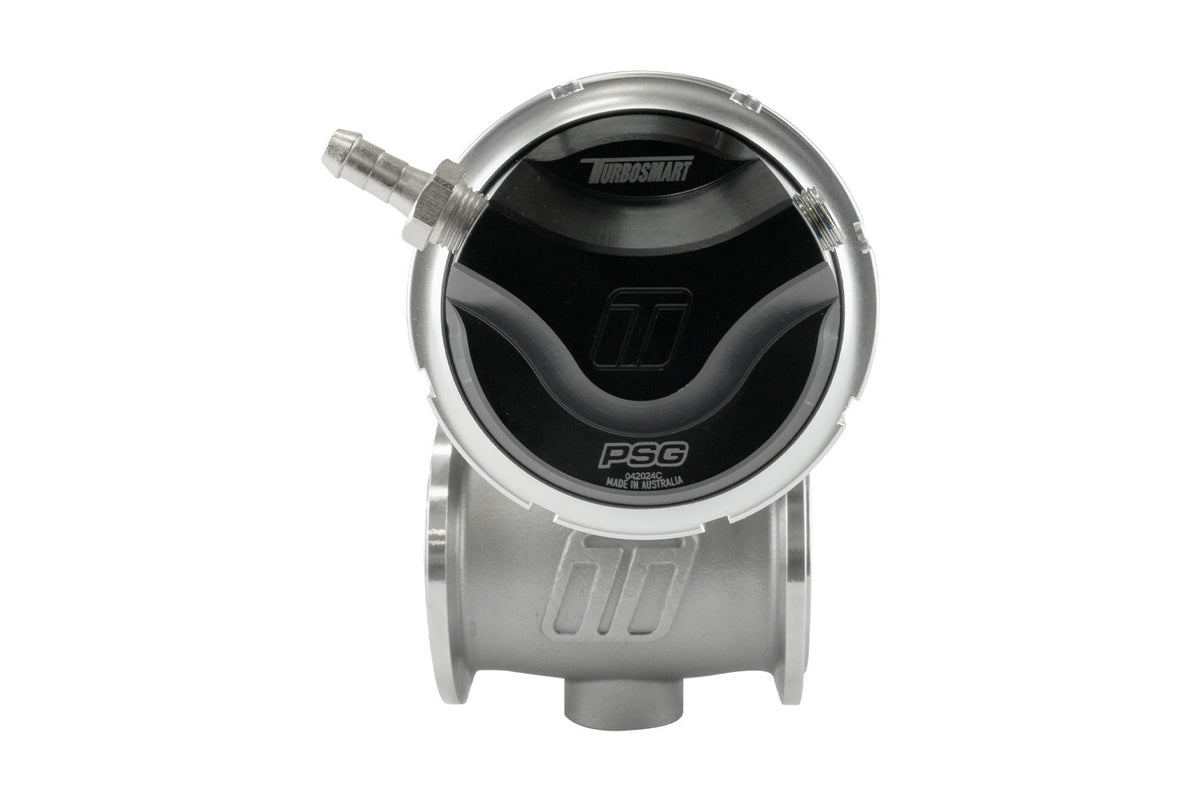

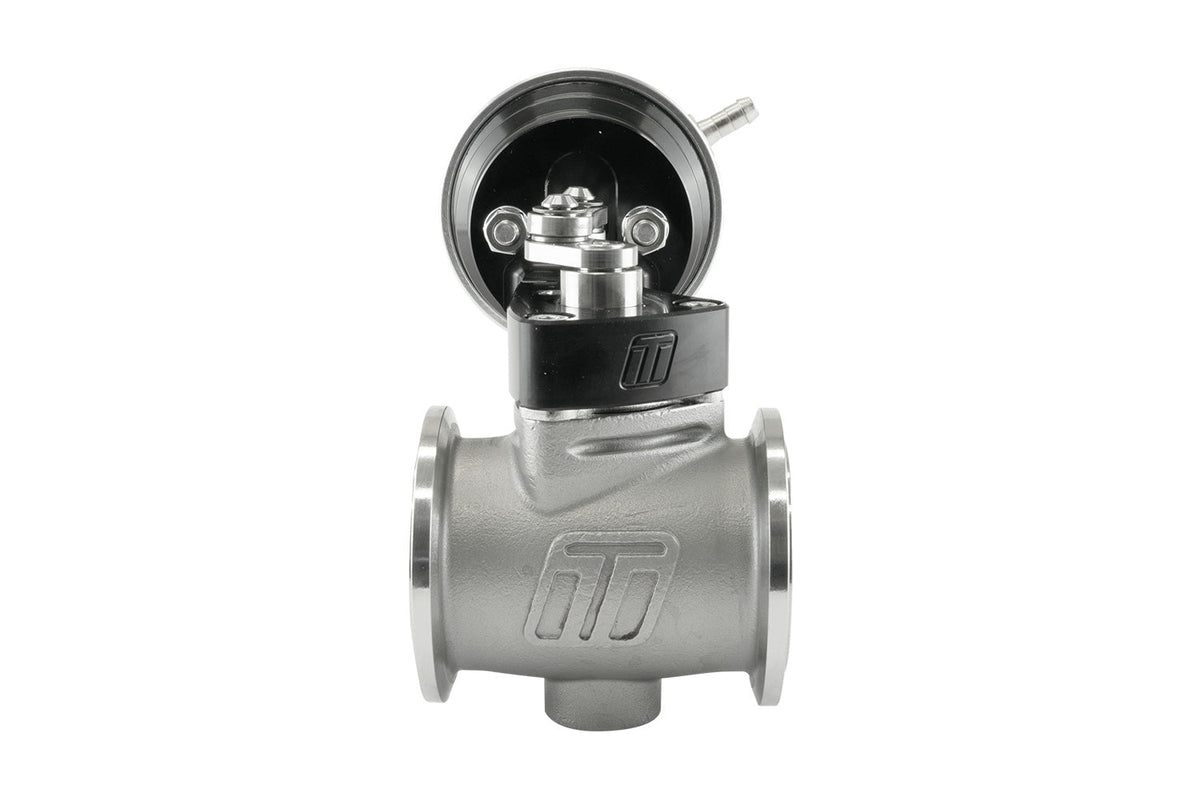

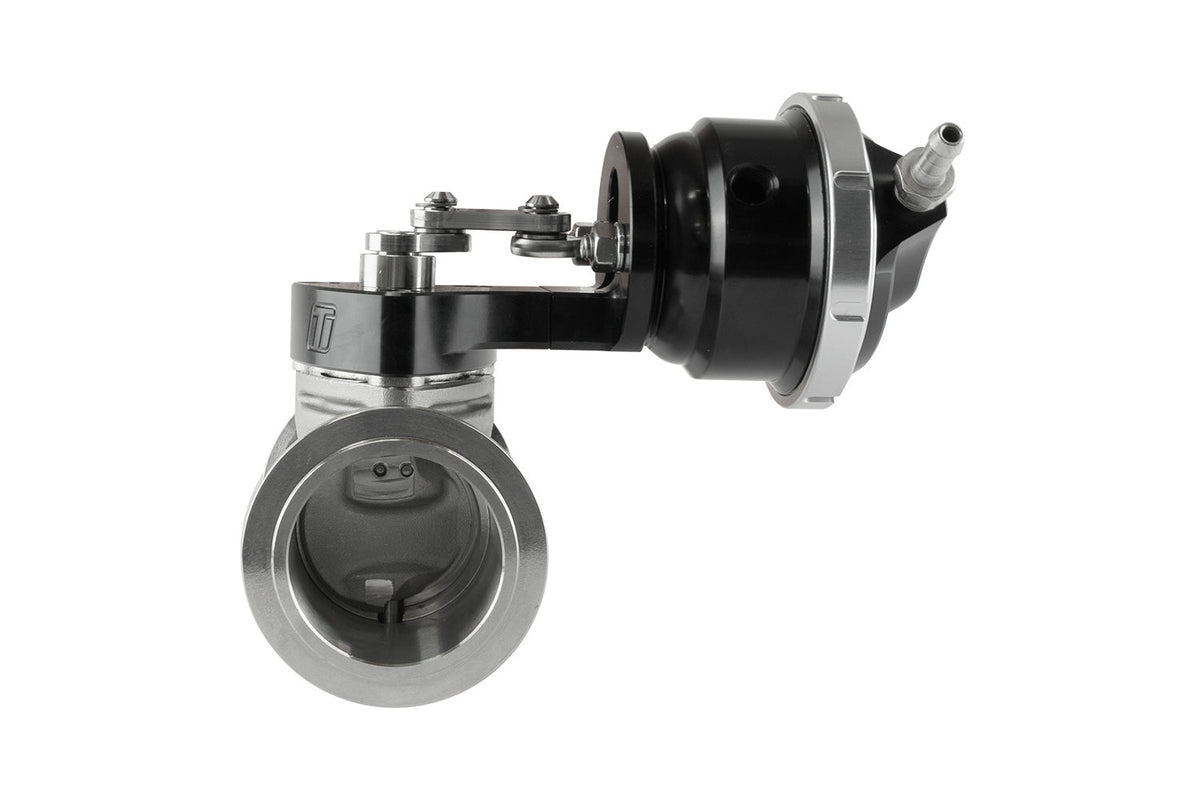

Turbosmart PSG40 Pneumatic StraightGate40 6psi External Wastegate Black - TS-0563-1762

Turbosmart PSG40 Pneumatic StraightGate40 6psi External Wastegate in black, part number TS-0563-1762.

• 40mm (1.57 in) butterfly-style zero-offset valve, 217.4 CFM (6.16 m3/min) flow
• Stainless steel 630 butterfly and shaft, stainless steel 347 main body
• Heat-treated 431 stainless steel V-band clamps
• 6262 T6 anodised aluminium bracket and actuator
• Turbosmart locking collar ring
• Suitable for single or twin port boost-based control
• N60 stainless steel linkages and control arm
• 3-pin bracket clockable to three positions, V-band rotates 360 degrees
• Smallest butterfly-style external wastegate, made for tight engine bays

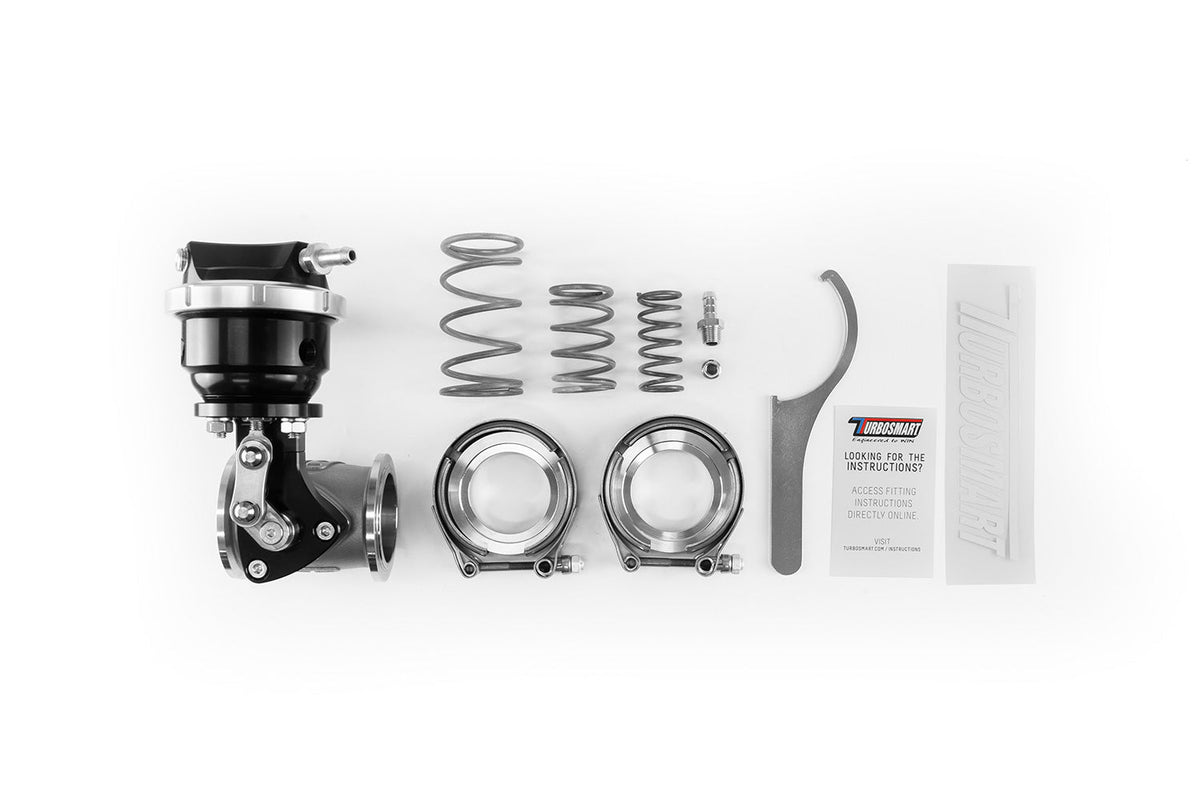

• Supplied with: 6 psi springs pre-installed with the other springs in the box, inlet and outlet flanges, inlet and outlet weld flanges, 2 x 1/8 NPT hose tail fittings, 2 x 1/8 NPT blanking plugs, Turbosmart decal

Fitment

• Universal external wastegate. No vehicle-specific fitment is listed. (Source: Turbosmart)

Resources

• Turbosmart product page
• Turbosmart installation guide

Contact us if you are unsure of fitment or Size HERE
