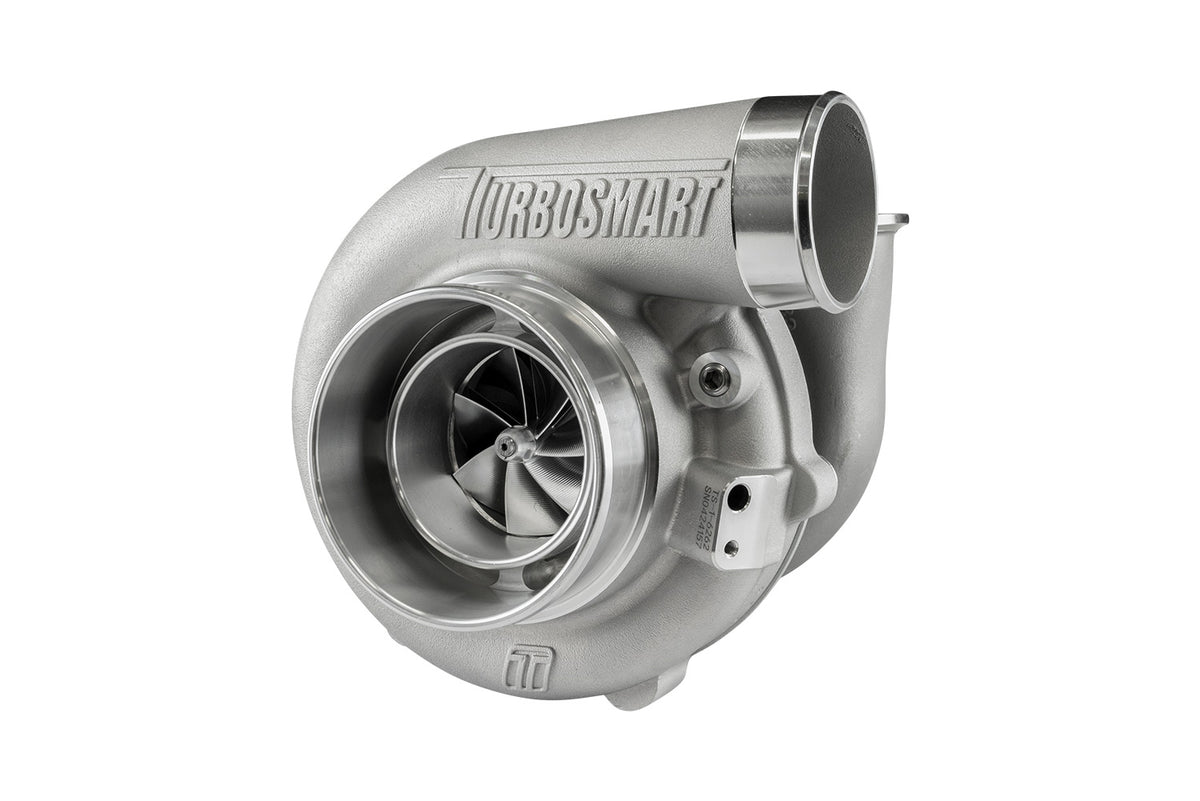

Turbosmart TS-1 Performance Turbocharger 6262 V-Band 0.82AR Externally Wastegated - TS-1-6262B-VB082E

Turbosmart TS-1 performance turbocharger 6262, V-Band, 0.82AR, externally wastegated (TS-1-6262B-VB082E).

• TS-1 series oil cooled turbocharger, externally wastegated
• Every turbocharger ships with weld flanges, V-band clamps, gaskets and oil feed and drain fittings included
• Compressor inlet 4" / 101.6mm, compressor inducer 62mm
• Turbine inlet: V-band (2.25"); turbine exducer 62mm; turbine A/R 0.82
• Turbine outlet: V-band (3.00")
• Weight 6.06kg / 13.3lbs
• Horsepower rating 760-880HP
• Unparalleled transient response
• Aggressive aerodynamics with 7+7 2618 aluminium splitter wheels
• Lightweight 310s stainless steel investment cast turbine housing and lightweight aluminium compressor cover
• CFD-designed housings for optimal A/R and flow
• 713C Inconel turbine wheel for extreme EGT
• VSR speed balanced, proprietary dual ceramic bearing system
• Integrated iron backplate on the center housing

Fitment

• Universal turbocharger (not vehicle specific) (Source: Turbosmart)

Resources

• Turbosmart product page
• Installation guide
• Installation instructions
