WHP Universal Harness for ADU5 and ADU7 - WHP-HARN-ADU

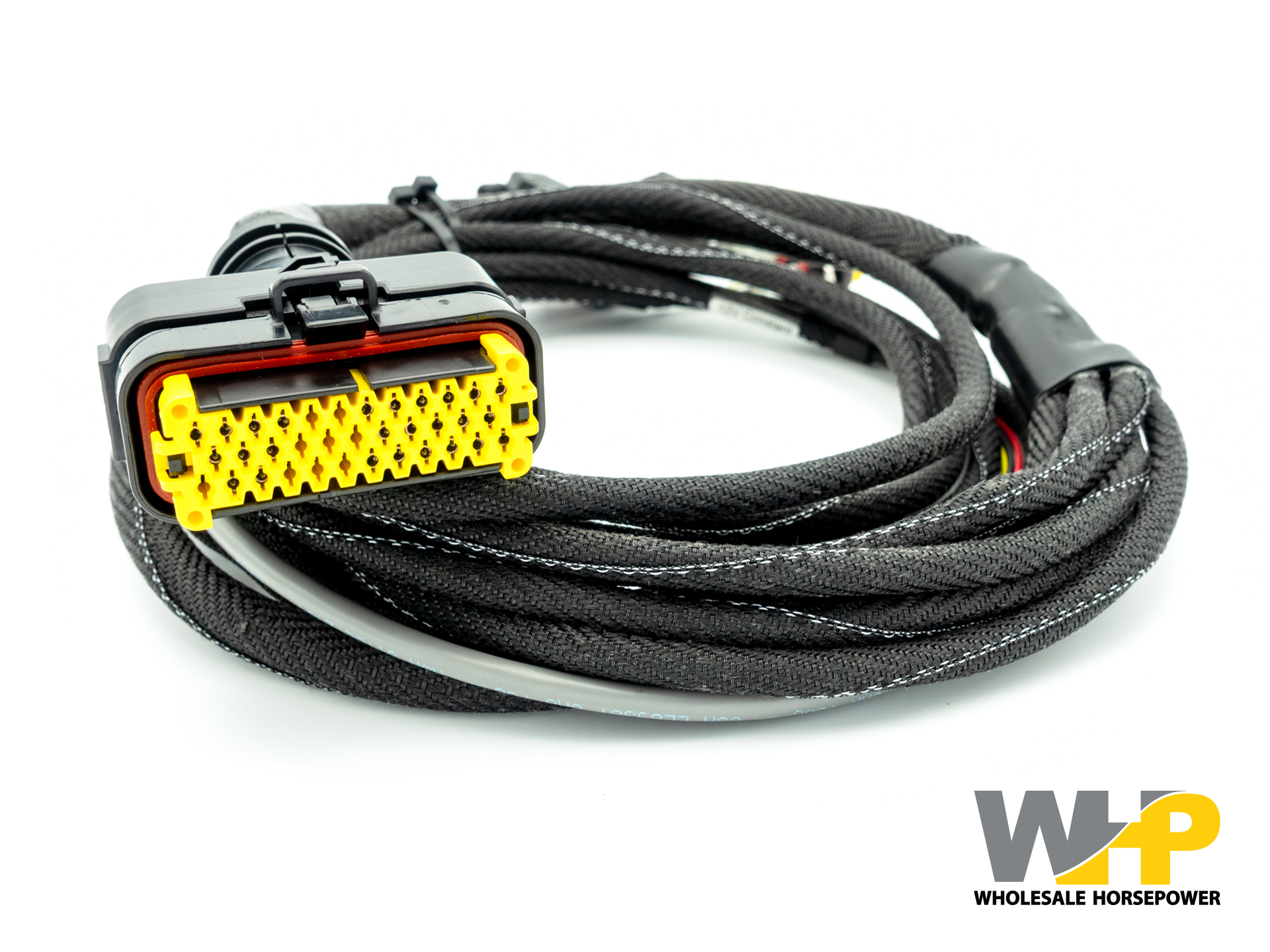

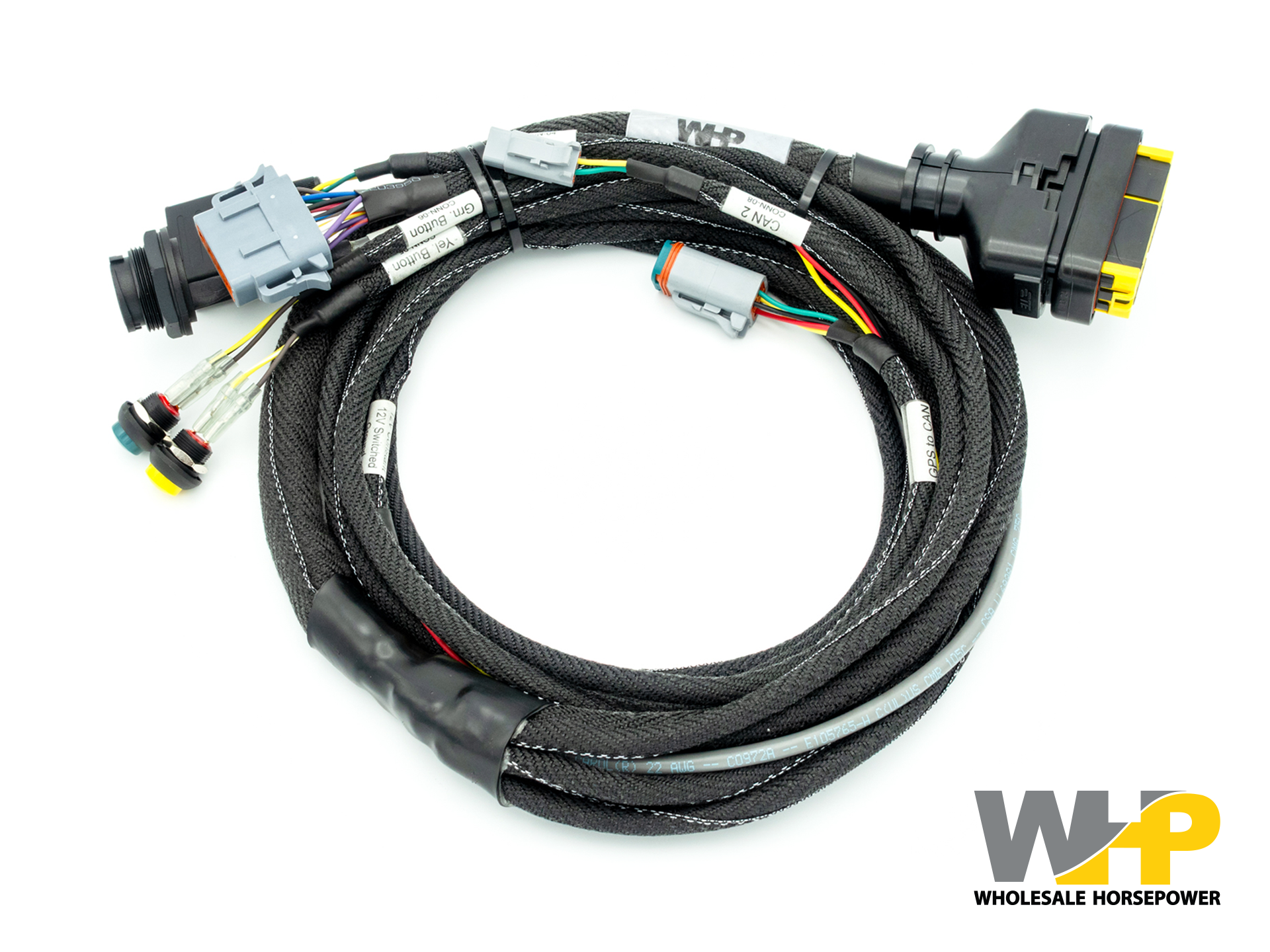

The WHP Universal ADU Harness provides a simple plug-and-play foundation for installing an ECUMaster ADU5 or ADU7. With only a few required connections, this harness helps reduce wiring time while supporting common ADU accessories and expansion options.

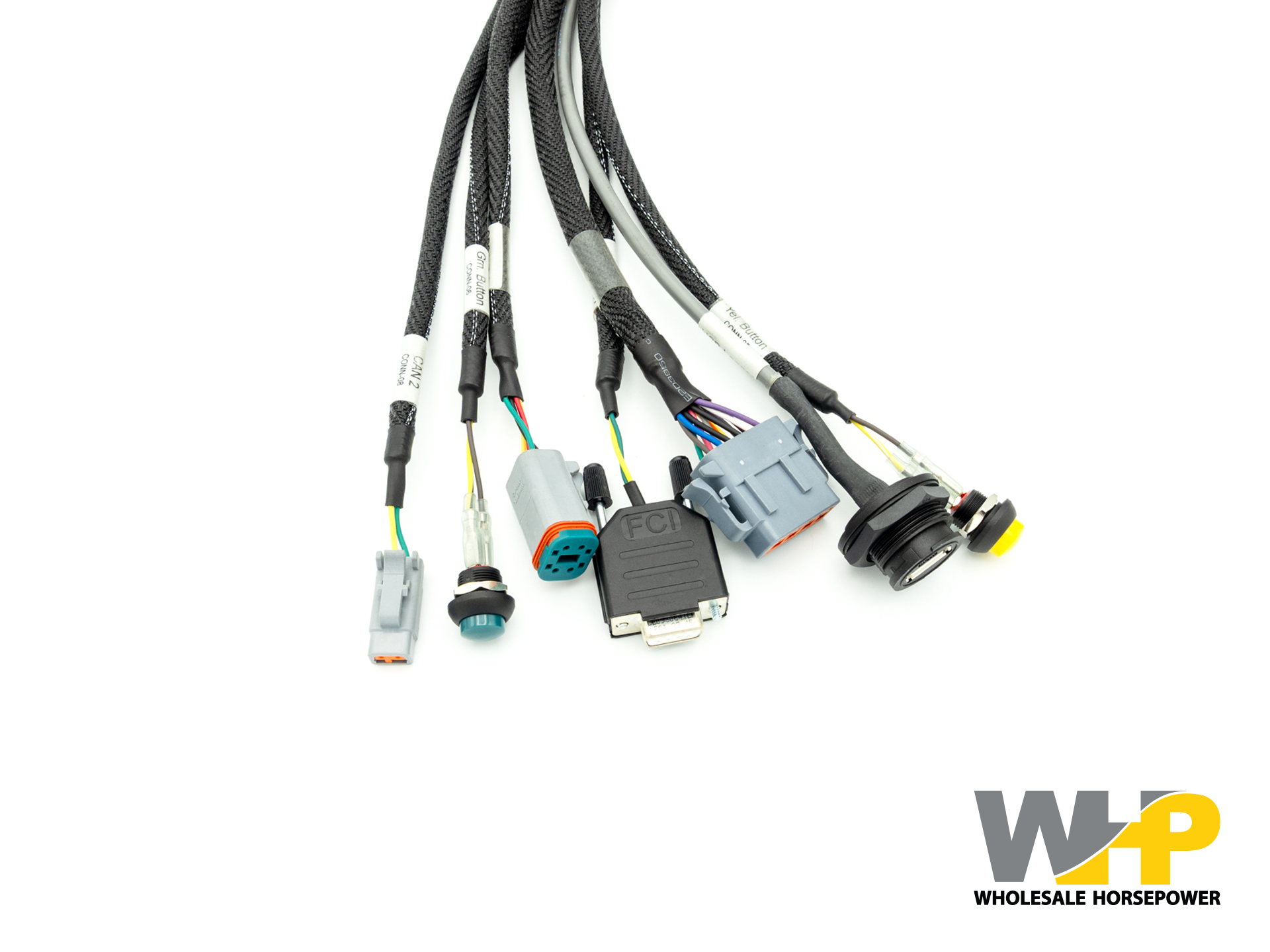

Key Features:

• Compatible with ECUMaster ADU5 and ADU7
• Pre-terminated Page and Warning Clear button connections
• USB logging port connection
• USB-to-CAN connection
• GPS-to-CAN connection
• Vehicle/ECU CAN connection
• Auxiliary I/O connections through DTM12 connector

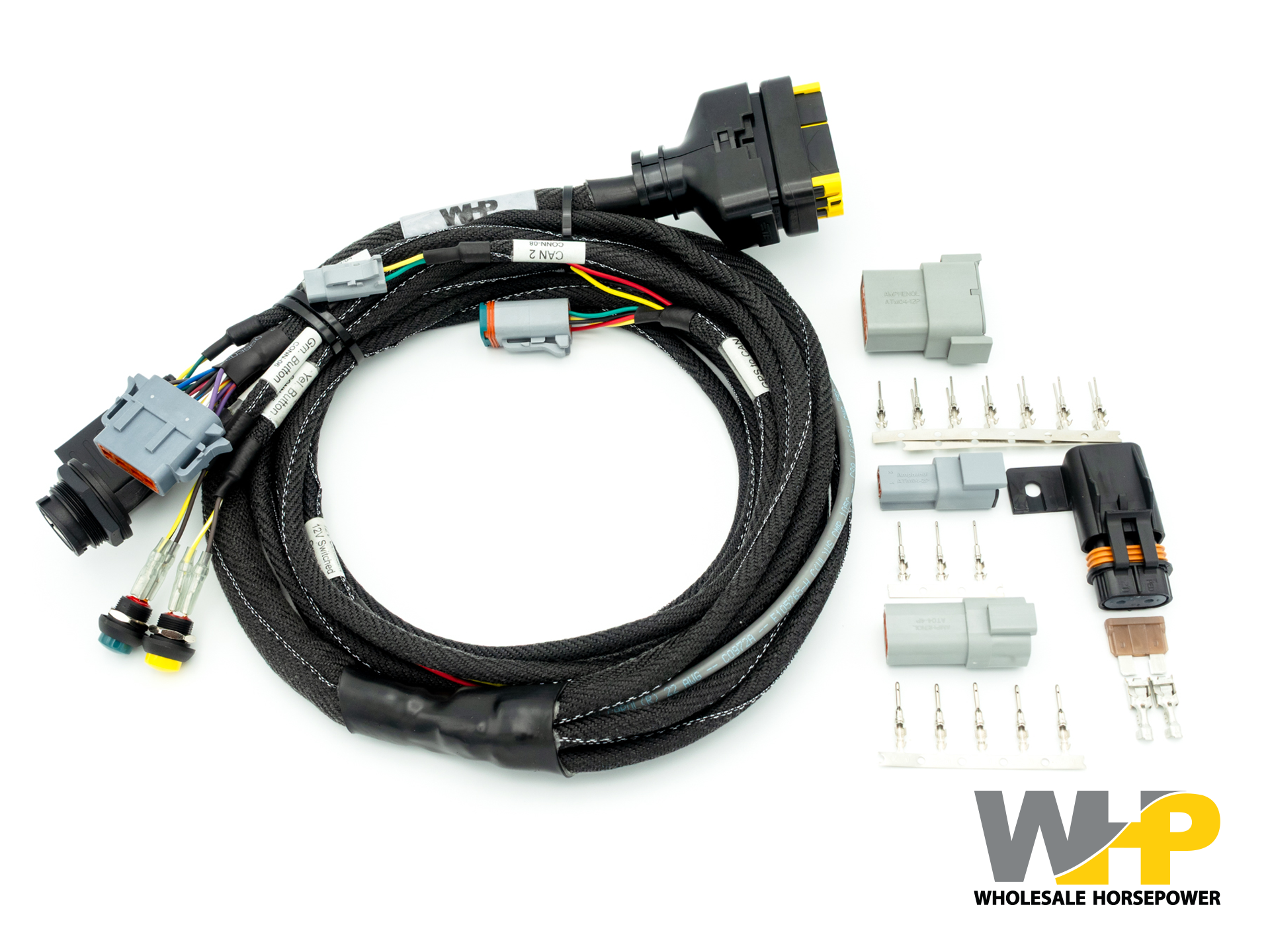

Includes:

• WHP Universal ADU Harness
• DTM12 I/O connector kit
• DTM2 Vehicle/ECU CAN connector kit
• DT4 GPS-to-CAN connector kit
• 5A fuse holder kit
• 1x Yellow button
• 1x Green button

Optional Accessory:

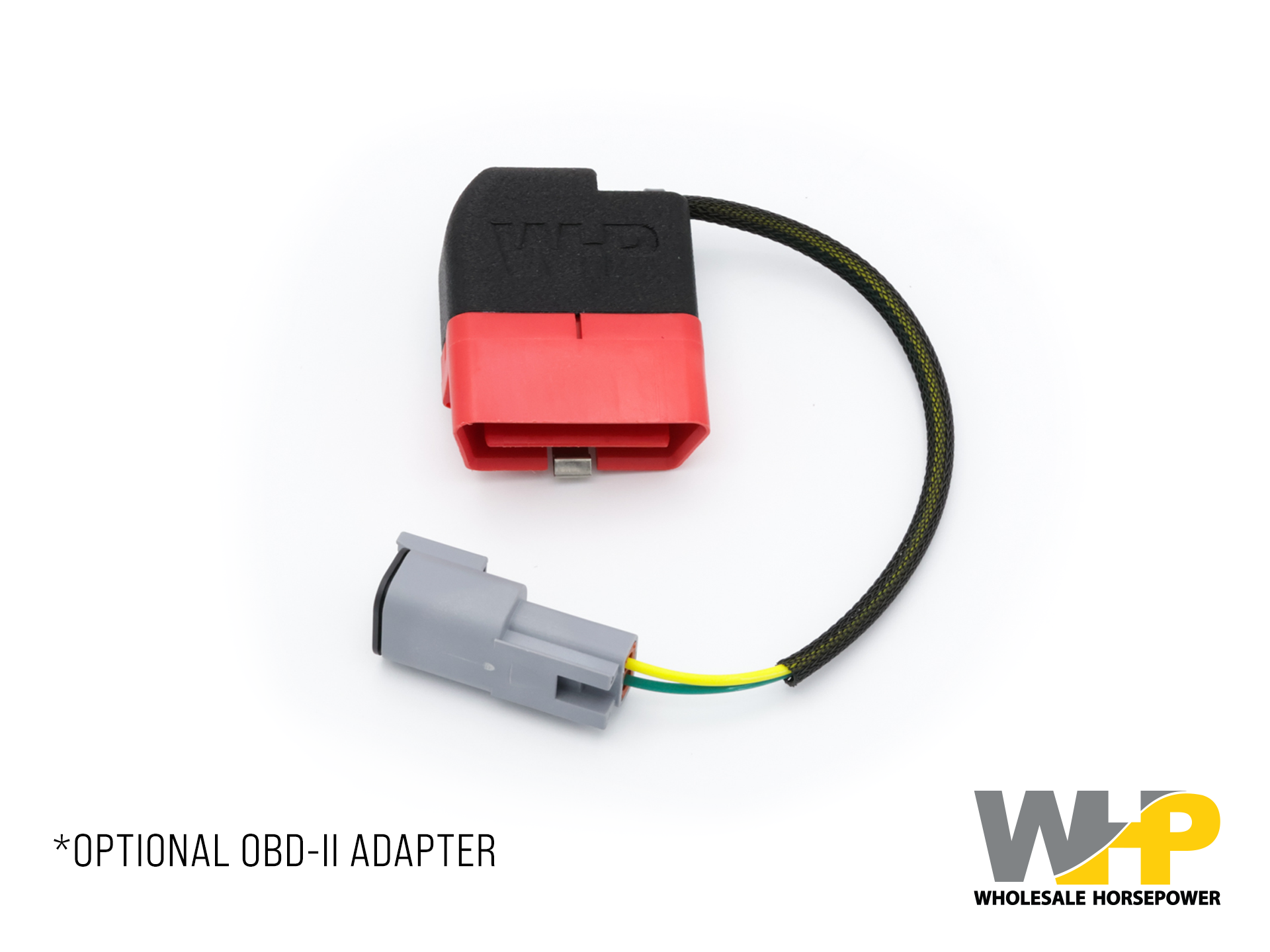

Optional OBD-II Adapter available. Connects CAN-Hi and CAN-Lo to a standard OBD-II (OBD2) diagnostic connector. Please message us to add this if required

Installation Guide
