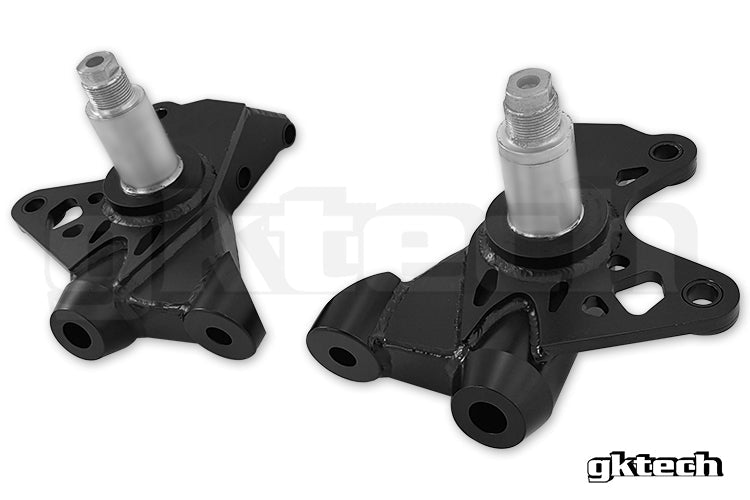

GKTech Grip front drop knuckles for the Nissan S13 chassis, part number V113-GRIP. Light weight sheet metal design with OEM ackerman and steering arm length, made for grip use.
- Ball joint height lowered 50mm for roll center correction
- Steering mount lowered 64mm for bump steer correction
- OEM ackerman and steering arm length, so no increase in steering angle
- Lightweight sheet metal design, FEA tested: S13 version is 3.1kg (S14/S15 version is 3.15kg)
- S13 specific version (S14/S15 version is a separate part)
- Provision for ABS sensor
- Bolts straight in after removing the standard knuckles. Works with OEM lower control arms and caster rods; rose jointed arms and caster rods are an advantage but not required
- Mechanical knowledge is required to install
-
Note: Because of the 64mm of bump steer correction, some tie rods may interfere with the inside of the rim. This depends on the inside diameter of the rim and the length and type of tie rod. As a general rule a 17" rim or larger is required
Fitment
- Nissan S13 Silvia, CA18
- Nissan S13 Silvia, SR20
- Nissan S13 180SX, CA18
- Nissan S13 180SX, SR20
Contact us if you are unsure of fitment or Size HERE
