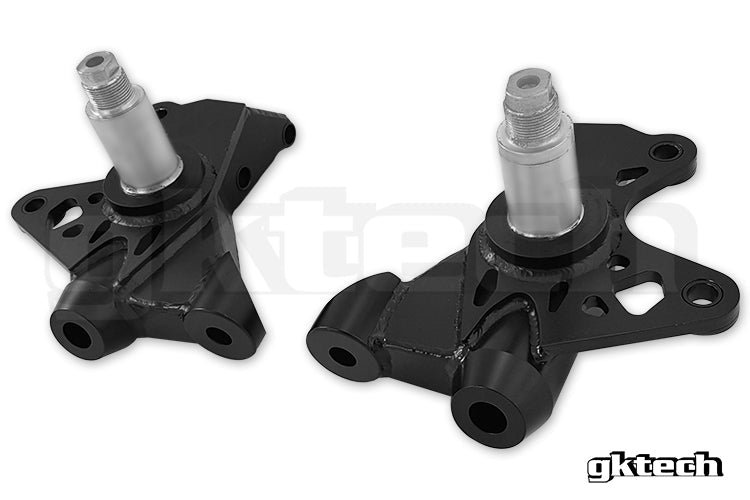

GKTech Grip front drop knuckles for the Nissan S14 and S15 (S14/S15 version), part number V114-GRIP.
- Lightweight sheet metal design, developed with FEA (Finite Element Analysis)
- OEM Ackermann and steering arm length: built for grip use rather than added steering angle
- Ball joint height lowered 50mm for roll center correction
- Steering mount lowered 64mm for bump steer correction
- Weight 3.15 kg (6.94 lb) for the S14/S15 version
- Provision for ABS sensor
- Bolts in place of the standard knuckles. Mechanical knowledge is required for installation
- Works with OEM lower control arms and caster rods. Rose jointed lower control arms and caster rods are advantageous but not required
- Note: because of the 64mm of bump steer correction, some tie rods may interfere with the inside of the rim. This depends on rim inside diameter and tie rod length/type. As a general rule a 17" rim or larger is required
- This listing is the S14/S15 version. A separate S13 version exists
Fitment
- Nissan S14 200SX / Silvia
- Nissan S15 200SX / Silvia
Contact us if you are unsure of fitment or Size HERE
