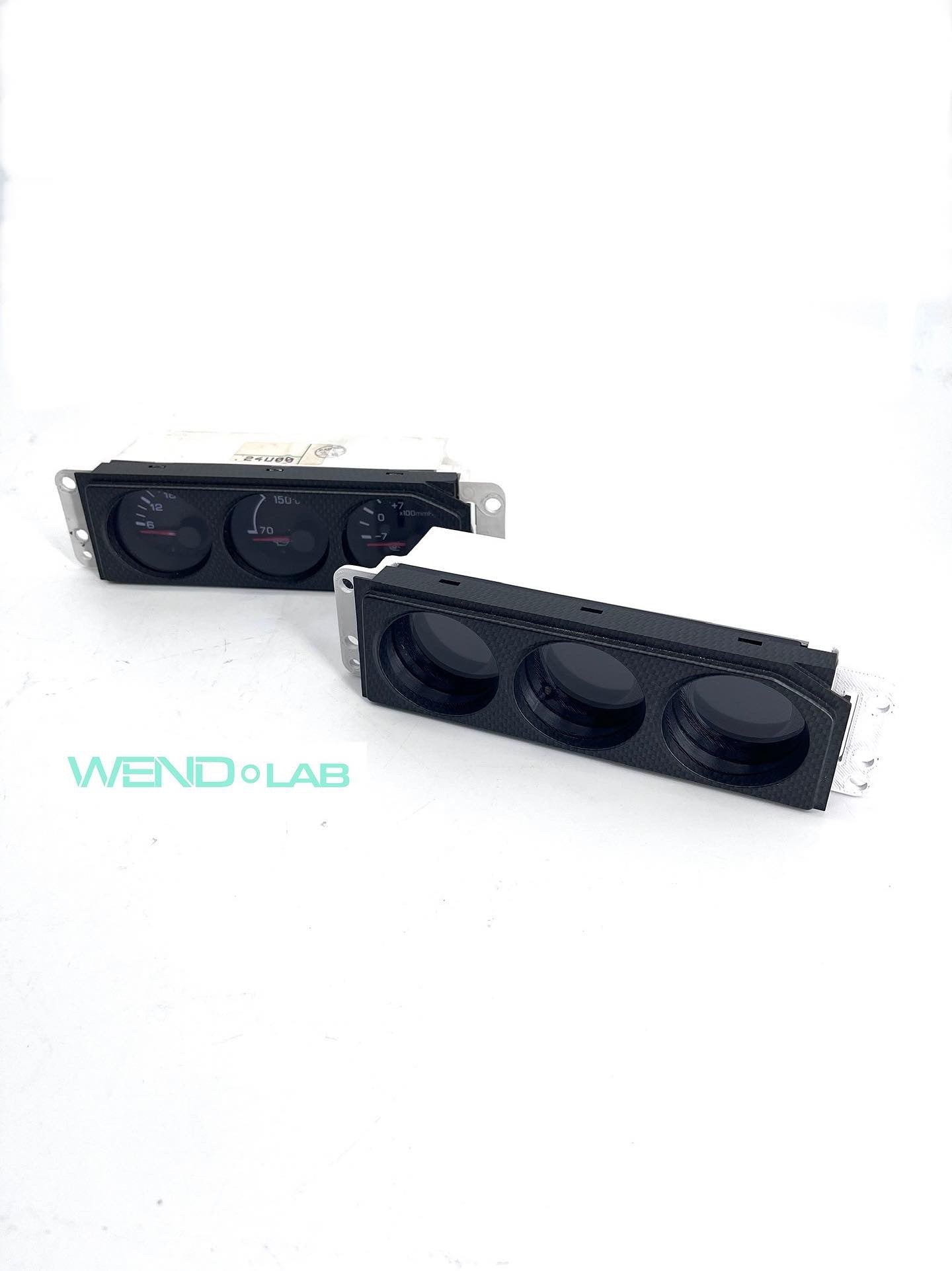

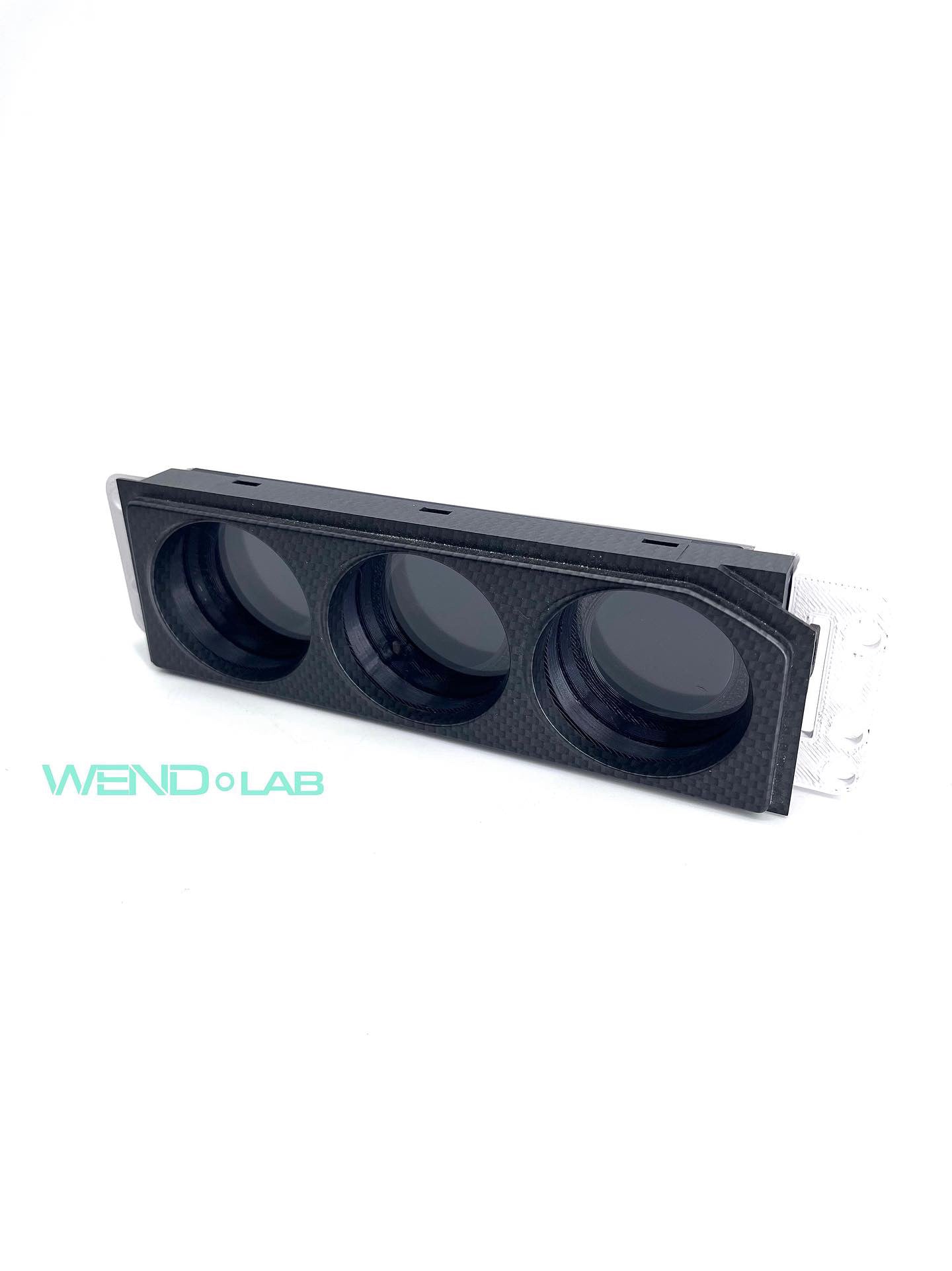

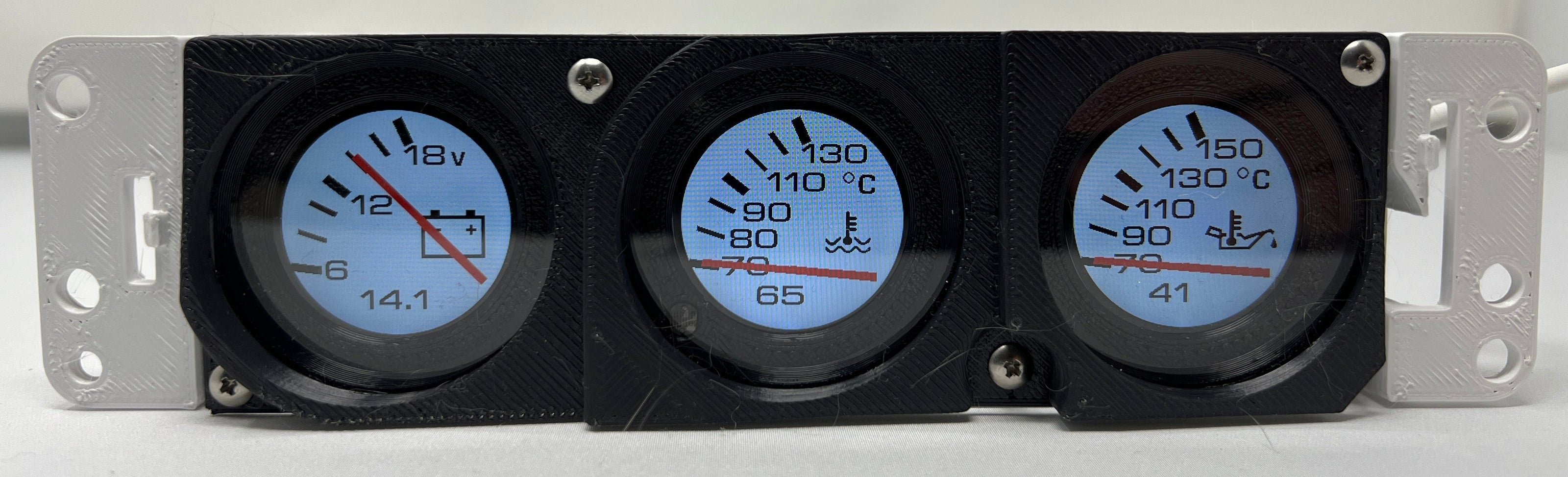

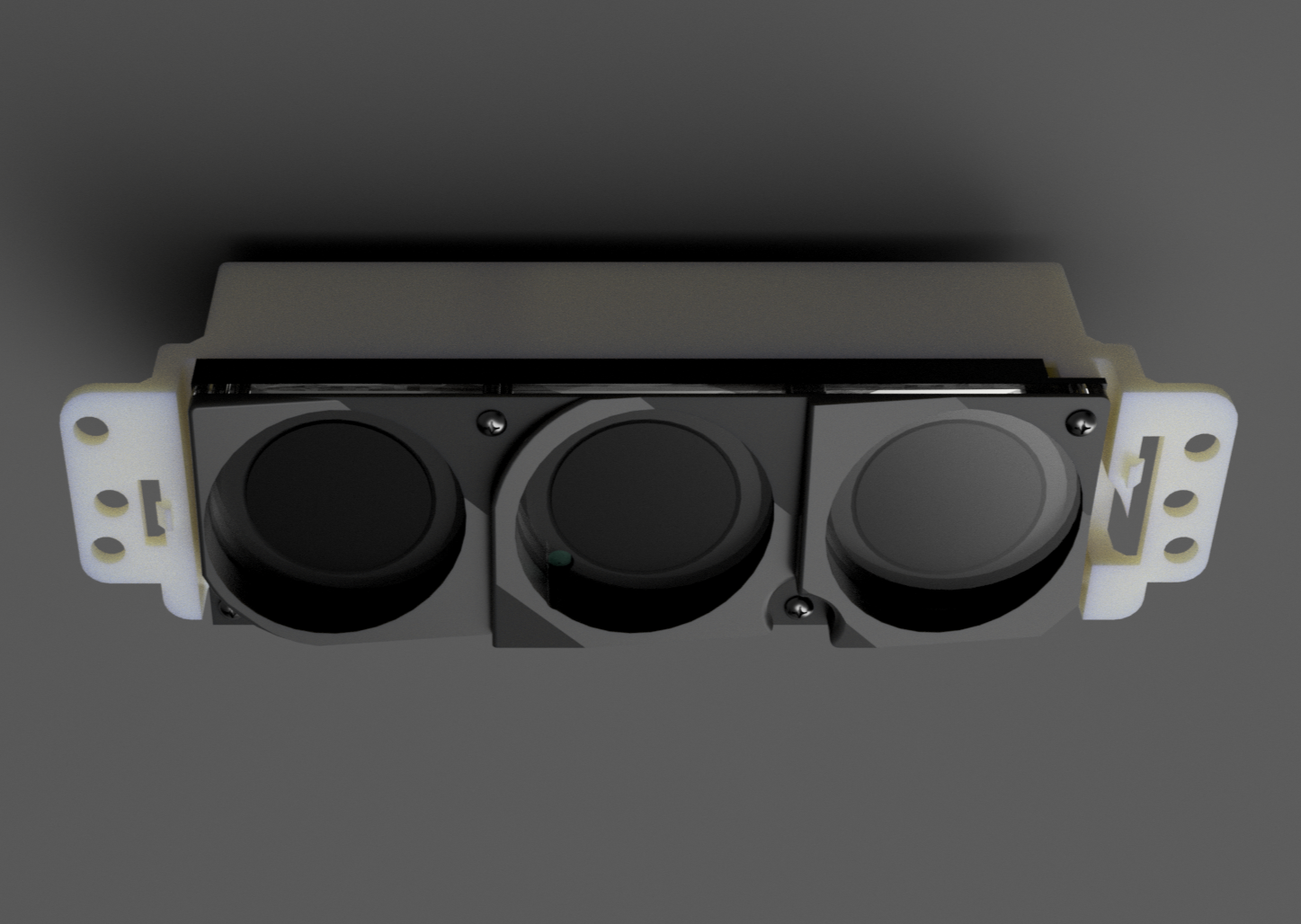

WEND Lab WC34 Stagea DIN Triple CANBUS Gauge - WC34-3DIN-1 / WC34-3DIN-2
Part Number: WC34-3DIN-1
Inventory Location:
Boost Factory Calgary Canada
Stock: 2
2OUT OF STOCK
2
Increments of 1
Minimum of 1
Maximum of
WEND Lab WC34 Stagea DIN Triple CANBUS Gauge, part numbers WC34-3DIN-1 (Series 1, Zenki) and WC34-3DIN-2 (Series 2, Kouki). Replaces the factory DIN triple meter in the Nissan Stagea WC34.
- 3 fully configurable gauges that use the CANBUS data stream from an aftermarket ECU
- Made in the USA, case 3D-printed in temperature-resistant ASA plastic, purpose-designed electronics
- Customizable appearances and configurable warning levels
- Configured over Bluetooth with the iOS or Android app
- Auto-dimming displays with night mode
- Single DTM 4 pin connector wiring. A DTM 4 pin plug is required for installation and is sold separately: Deutsch Style DTM 4 Pin Plug Connector Kit, DTM06-4S
- Direct replacement of the factory unit, uses the factory bezel
- Series 1 (Zenki) mounting is similar to the R33. Series 2 (Kouki) has side-mounting bosses
- Supported ECUs: Haltech (CAN protocol v2), Link (G-Series), Emtron (KV Series), AEM Infinity, MoTeC M1 Series (GPR/GPA/Powertune Australia FW), ECUMaster Black Series, MaxxECU, Syvecs (S-Series), MegaSquirt
- Supported gauges: battery voltage, water, oil, fuel and intake air temperature, exhaust gas temperature, water, oil, fuel and boost pressure, air fuel ratio, ethanol content, injector duty, throttle position, tire temperature and pressure, fuel tuning, engine health, boost control, gear position, speedometer, and 5 custom digital displays with 1-7 user-configurable parameters (the ECU needs the matching sensors and CAN configuration)
Need a bezel?
The gauge reuses your factory bezel. If your Stagea is missing its triple meter bezel, get the gauge and bezel kit.
Fitment
- Nissan Stagea WC34, Series 1 (Zenki), part number WC34-3DIN-1
- Nissan Stagea WC34, Series 2 (Kouki), part number WC34-3DIN-2
Resources
Contact us if you are unsure of fitment or Size HERE
