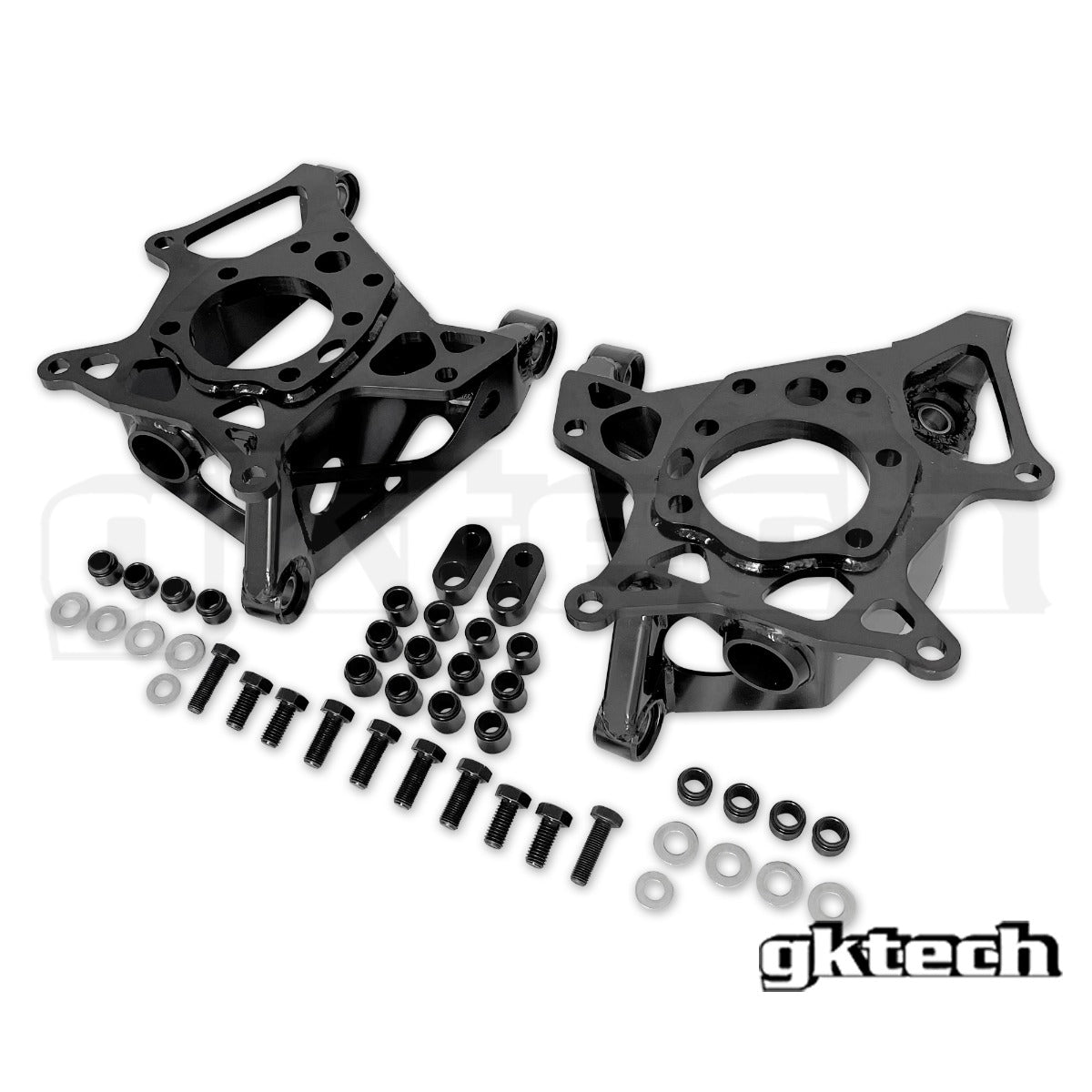

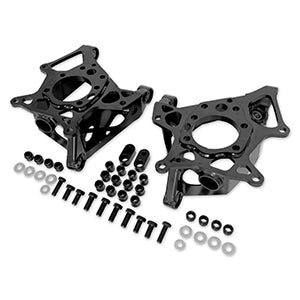

GKTech - Z33 350z/Z34 370z Rear knuckles with all new kinematics - Z334-KNCK
Part Number: Z334-KNCK
Authorized GK Tech Dealer
Ships from Calgary
Special Order From GK Tech Australia
In stock at GK Tech. Order now and it goes on our next GK Tech order, placed on Nov 29th. Estimated arrival in Calgary is the week of Dec 7th - Dec 11th.
support@boostfactory.ca
Inventory Location:
Manufacturer Warehouse USA
Stock: 0
0OUT OF STOCK
0
Increments of 1
Minimum of 1
Maximum of
GKTech Z33 350Z / Z34 370Z rear knuckles with all new kinematics, Z334-KNCK. A lightweight, strong drop knuckle developed from GKTech's S chassis knuckles.
- Dual caliper brackets as standard; dual calipers can be run without spacing the rotor out, and a drum brake can be run in the standard position with dual or single caliper installed
- The drop is 40mm, optimized for cars 40mm lower than factory ride height
- PTFE lined spherical bearings throughout as standard, in a common size (QA1/FK part number COM10T) so replacements are easy to get
- All new kinematics: more anti-squat for rear weight transfer and traction, optimized camber curve for more even tire wear, optimized bump steer (toe-in under compression), and a raised roll center height
- Lightweight sheet metal design optimized with finite element analysis; fully dressed weight (bearings, spacers, circlips) 3.9kg versus 3.11kg for the standard knuckle
- The OEM e-brake can still be used as normal
- Installation: aftermarket toe arms and traction rods are required and MUST have rose joints, as the suspension mounting points on the knuckle are significantly altered. Lower and upper camber arms can be OEM or aftermarket and do not need to be changed, though OEM bushings in the lower control arms will produce different bump steer curves
- Either an OEM style coilover or a true style coilover with a separate spring and damper can be used; the true style gives a better motion ratio and more linear grip
- For best results, run spherical bearing arms (ideally all adjustable), the GKTech upper camber arms and the GKTech anti-squat relocation kit (350Z-RUAB)
- Replacement COM10T bearings are available as spare parts
Fitment
- Nissan Z33 350Z
- Infiniti G35 (Nissan V35 Skyline)
- Nissan Z34 370Z
- Infiniti G37
Contact us if you are unsure of fitment or Size HERE
