GKTech - 350Z/370Z Differential Conversion Bushings for S/R Chassis (3 bushings) - Z33X-CONV

Part Number: Z33X-CONV
Authorized GK Tech Dealer Ships from Calgary
Special Order From GK Tech Australia In stock at GK Tech. Order now and it goes on our next GK Tech order, placed on Nov 29th. Estimated arrival in Calgary is the week of Dec 7th - Dec 11th. support@boostfactory.ca

Warehouse Icon Inventory Location: Manufacturer Warehouse USA

Stock: 0

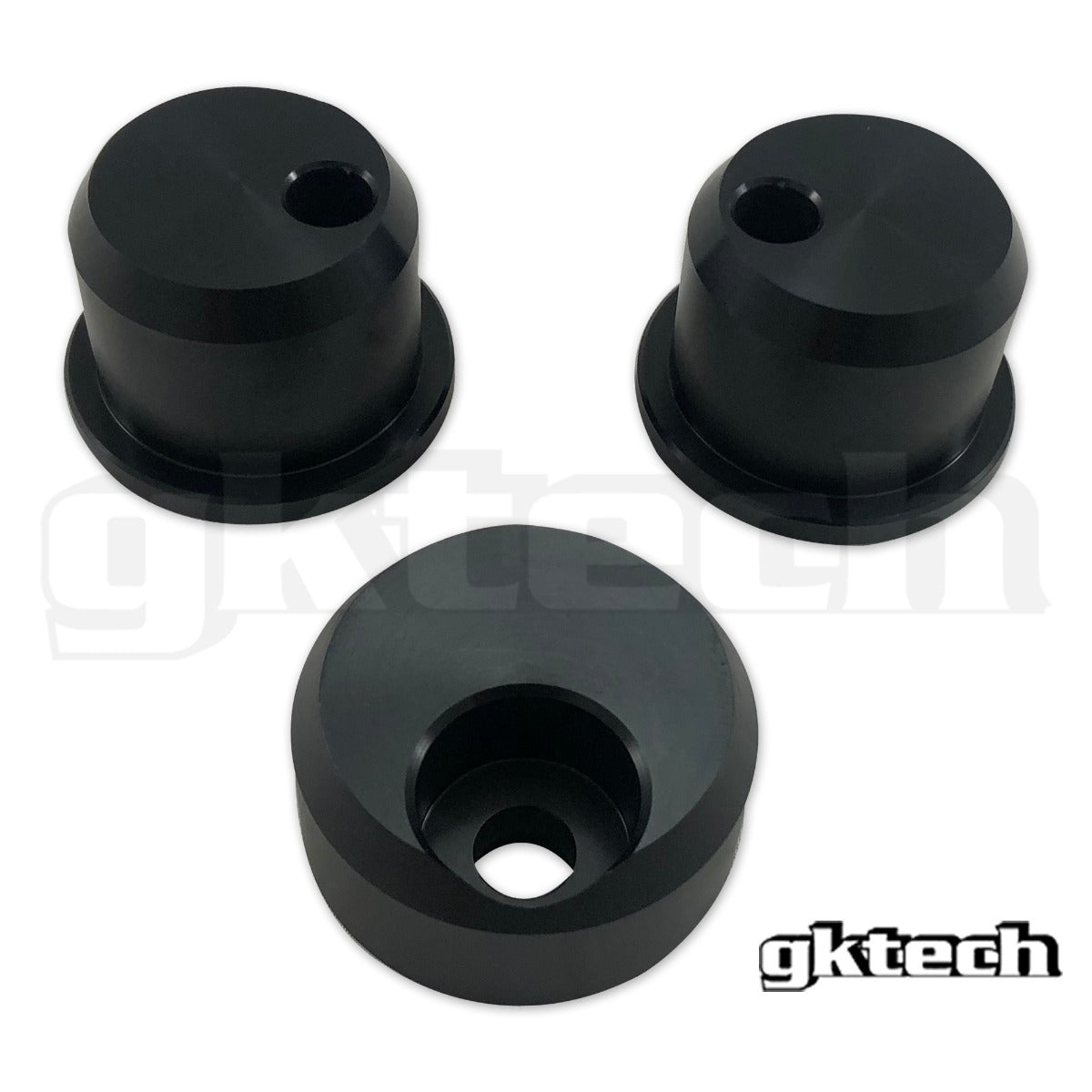

GKTech 350Z/370Z differential conversion bushings for S/R chassis, part number Z33X-CONV. 3 bushings in total.

  • Let you bolt the stronger 350Z/370Z/G35/G37 differential into a 2 bolt R200 S/R chassis subframe
  • CNC machined from 6061-T6 aluminium. No subframe modification needed: press two bushings into the diff and one into the subframe
  • The bushings align the diff in the centre of the subframe
  • The diff itself is not included
  • You will need to redrill the diff flange to suit your tailshaft bolt PCD. Note which way the rear bushing faces, based on the position of the diff stud, before pressing it in
  • Installation takes around 45 minutes once the subframe is out
  • The 350Z/370Z/G35/G37 diff has driveshaft (CV/axle) sensors, Rzeppa style driveshafts and a larger pinion thread than any S/R chassis diff. The driveshafts bolt directly to S/R chassis wheel hubs
  • The stub spline is 31 spline, same as the R33 GT-R (R32 GT-R is 30 spline, R33 GTS-T is 29 spline)
  • The crown wheel and pinion are the same as S/R chassis R200 diffs
  • NOTE: after fitment, check driveshaft (CV/axle) length to make sure the driveshaft cannot over-extend or compress, which may lead to failure

Fitment

  • Nissan 180SX (CA18)
  • Nissan Skyline R32 GT-R
  • Nissan Skyline R32 GTS-T
  • Nissan Silvia S13 (SR20)
  • Nissan Silvia S13 (CA18)
  • Nissan 180SX (SR20)
  • Nissan Silvia S14 / 200SX
  • Nissan Silvia S15 / 200SX
  • Nissan Skyline R33 GTS-T
  • Nissan Skyline R33 GT-R
  • Nissan Skyline R34 GT-T
  • Nissan Skyline R33 GTS-4
  • Nissan Skyline R34 GT-R

Contact us if you are unsure of fitment or Size HERE
