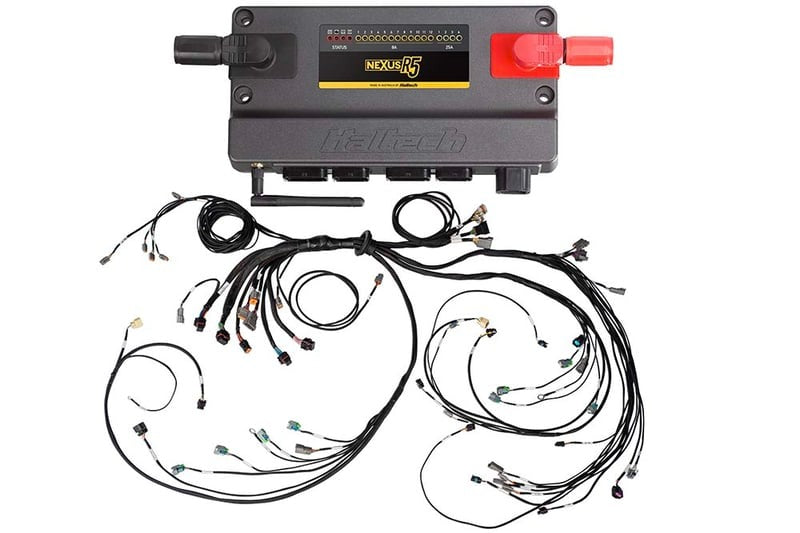

Haltech Nexus R5 VCU + LSx DBW Terminated Harness Kit - HT-195405

Part Number: HALHT-195405
Authorized Haltech Dealer Ships from Calgary
What's in this kit & availability
NEXUS R5 VCU
HT-195000
Regular stock: sold out
Ordered after Dec 7, arrives early 2027
Nexus R5 LSx DBW Terminated Harness - DBW ready
HT-186205
Special order
Ordered after Dec 7, arrives early 2027
Haltech 40th Birthday Sale: long ETAWe place our Haltech sale order after the sale ends on Dec 7. Sale orders usually arrive in Calgary in early 2027. Need it sooner? Contact us before you order.
support@boostfactory.ca

Warehouse Icon Inventory Location: Manufacturer Warehouse USA

Stock: 0

Haltech Nexus R5 VCU + LSx DBW Terminated Harness Kit - HT-195405

Suits: LSx engines with DBW

Includes: 1 x HT-195000 - Nexus R5 ECU; 1 x HT-186205 - Terminated Harness; Pack of DTM/DT connector and pin set; 2 x DTP-2 connectors with pre-crimped 12AWG wires; 1 x DT-8 connector with pre-crimped 18AWG wires; 1 x 2 pin Bosch alternator adaptor harness; 1 x 2 pin Yazaki alternator adaptor harness; 1 x 4 pin Delco alternator adapter harness

Notes: EV6 primary injector plugs. Plug and play with the OEM Ignition sub-harness on the engine. (Required)

Overview

VCU Overview

Nexus R5 is Haltech's flagship product combining the functionality of a power distribution module, a data logger, a dual channel wideband controller and a state-of-the art engine management system in one powerful device we call a VCU (Vehicle Control Unit).

  • 4 x 25A (continuous) push-pull PWM capable (5 kHz) outputs (for power to injectors / coils, transbrake, thermofan, fuel pump)
  • 12 x 8A (continuous) high side outputs (low speed PWM, 200 Hz) outputs (power to sensors, NOS solenoids, etc)
  • 18 x peak/hold injector drivers (can be used as low side drive outputs)
  • 12 x low current ignition outputs (can be used as low side drive outputs)
  • 8 x low side drive outputs, PWM capable (DPOs)
  • 4 x push-pull / h-bridge outputs (8A, PWM capable), eg for electronic throttle
  • 23 x 0-5V analog inputs with redundancy for electronic throttle and switchable 5V pullup
  • Trigger and home inputs with differential inputs, adjustable thresholds and glitch filters
  • 10 x synchronous pulsed inputs, zero crossing or adjustable thresholds - cam sensor inputs, frequency inputs or 0-5V analog inputs
  • 2 x onboard wideband controllers, supporting NTK and LSU4.9
  • 3 x CAN ports with switchable termination
  • Onboard data logging - Up to 300 channels of logging at sample rates up to 1ms (1kHz) with 512MB of internal memory

Harness Overview

Terminated harness suits LSx engines with DBW, and incorporates PDM functionality. Pre-wired to connect directly to OEM 7 Pin Coil Harness Connector.

  • EV6 primary injector plugs.
  • Plug and play with the OEM Ignition sub-harness on the engine. (Required)

Specifications

  • Analog Voltage Inputs (AVI): 23
  • Differential Engine Position Inputs: 2 (Trigger and Home)
  • Digital Pulsed Inputs (DPI): 0
  • Synchronized Pulsed Inputs (SPI): 10
  • Knock Sensor Inputs: 2
  • On-board Wideband Controller: 2 x NTK/LSU 4.9
  • Injection: 18 (peak and hold)
  • Ignition: 12
  • Ignition Switch Input: 1
  • Engine Control Relay output: 0
  • Total Digital Pulsed Outputs (DPO): 8
  • Half Bridge Outputs (HBO): 4 8A
  • On-Board PDM: YES
  • 25A High Current Outputs (HCO): 4
  • CAN Bus Networks: 3
  • MAP sensor: External
  • Inertia / G-Sensor: YES
  • USB 2.0: USB-C
  • Low Power Up via Cable: YES
  • Wi-Fi: YES
  • Compatible with Haltech Connect App: YES
  • Anti-Lag/Rotational Idle: YES
  • Boost Control: 4D Closed Loop
  • Closed Loop O2 Control: Dual
  • CO2 Control: YES
  • Drive-By-Wire Throttle: Dual
  • Engine Protection: Multi-Level
  • Flat Shift Support: Advanced
  • Flex Fuel: YES
  • Intake Air Bleed Control: YES
  • Knock Control: Dual
  • Launch Control: YES
  • Long Term Learning: Up to 4D
  • Nitrous Control Stages: Up to 6
  • Race Timer: YES
  • Rolling Anti-Lag: YES
  • Shock Travel & Ride Height: YES
  • Torque Management (Driveshaft and Engine RPM Targeting): YES
  • Traction Control: YES
  • Trans Brake: YES
  • Tuning Table Resolution: 32x32x8 4D
  • Variable Cam Control: Up to 4
  • Onboard storage: 512MB

What's in this kit

  • 1 x Haltech NEXUS R5 VCU - HT-195000
  • 1 x Haltech Nexus R5 LSx DBW Terminated Harness - DBW ready - HT-186205

Downloads

Manuals, wiring diagrams and software for HT-195405 are on haltech.com.
