Haltech Nexus R5 VCU + Plug and Pin Set - HT-195100

Haltech Nexus R5 VCU + Plug and Pin Set - HT-195100

Suits: Racing application where advanced race features, data logging and power management control is required.

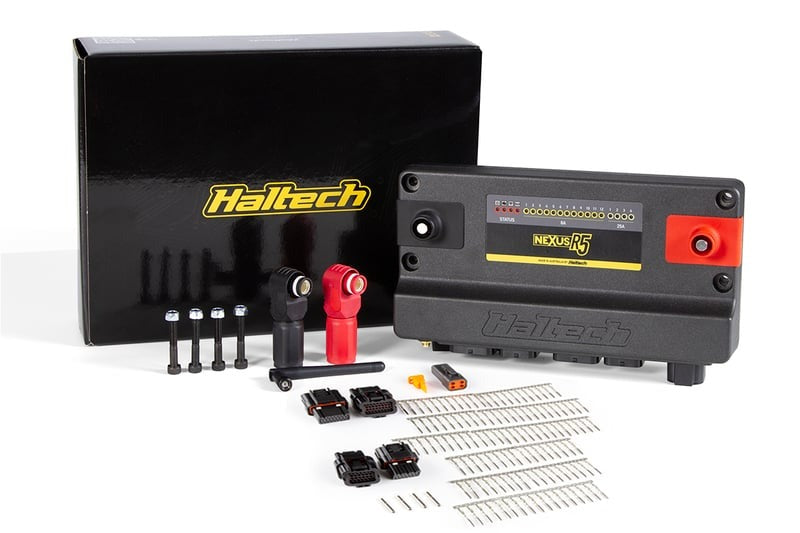

Includes: NEXUS R5 VCU, SurLok connectors (Red and Black), Wi-Fi antenna, mounting bolts, USB-C Cable, USB-C dust cap. Plug and pin set: AMP 26 pin key 1 and 3, 34 pin key 1 and 2, DTP-4.

Overview

VCU Overview

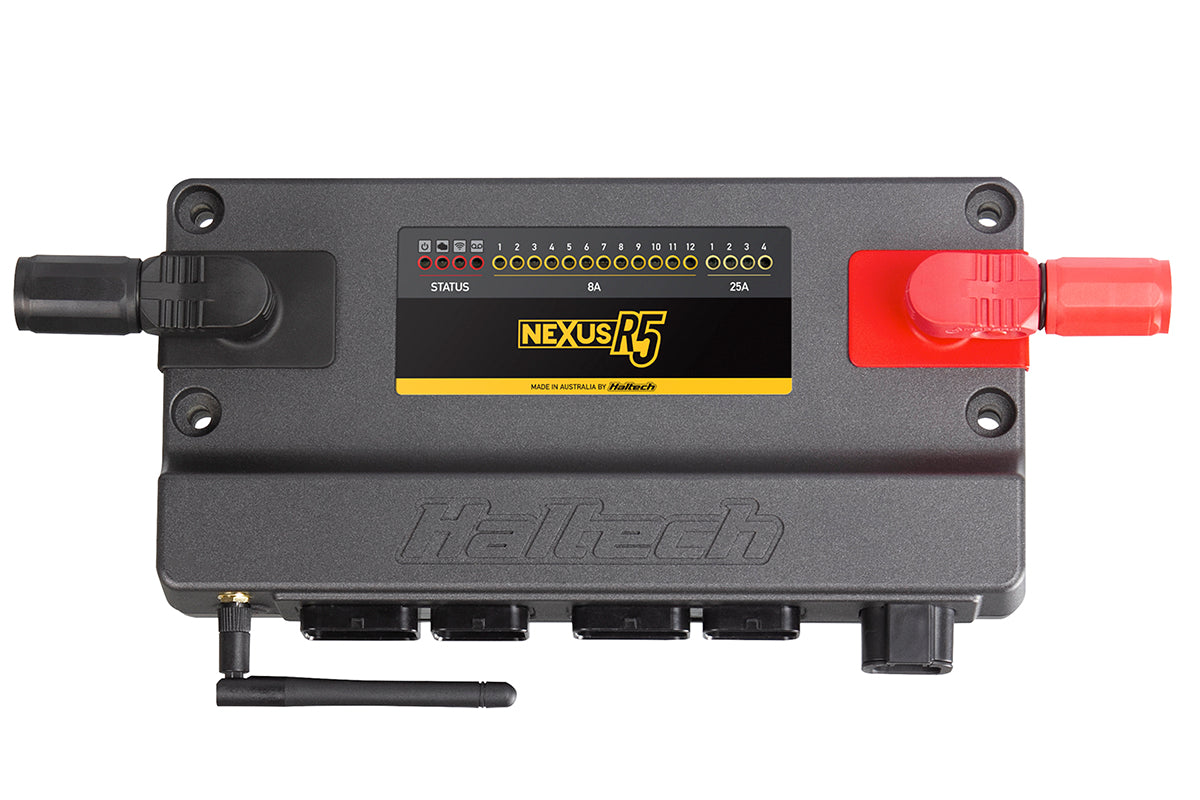

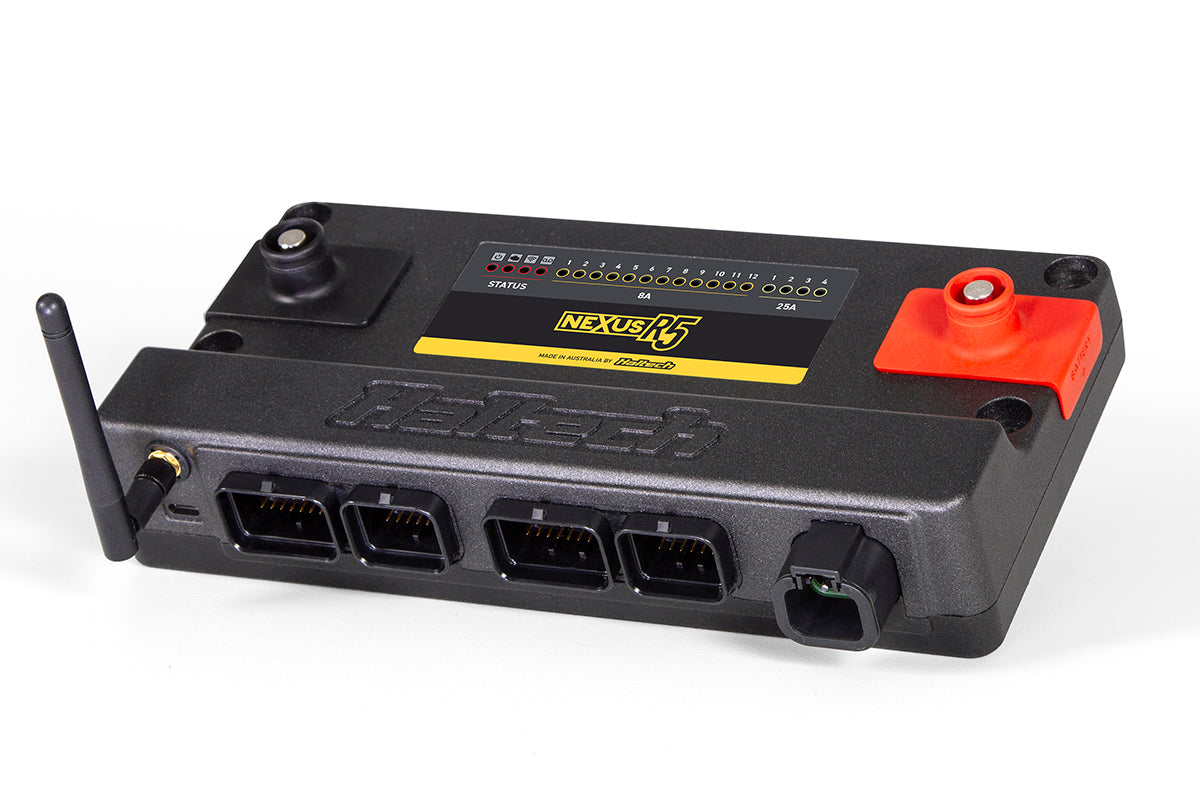

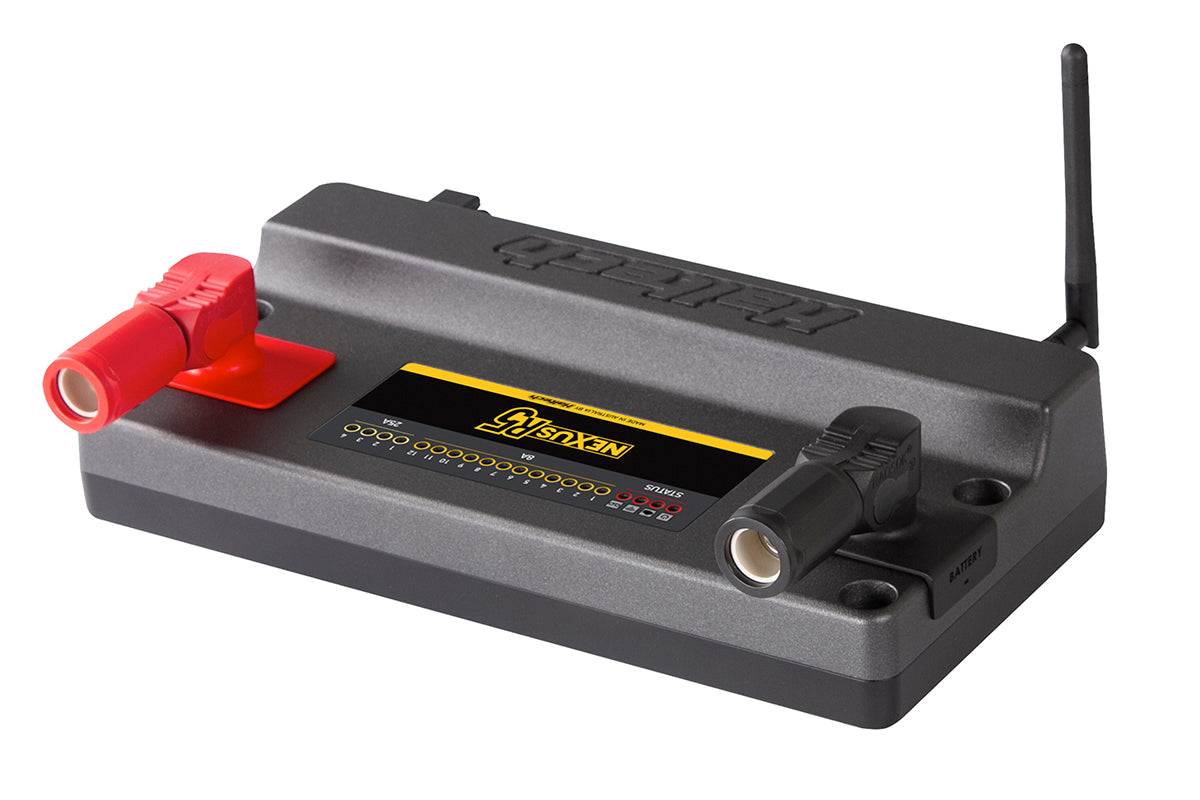

Nexus R5 is Haltech's flagship product combining the functionality of a power distribution module, a data logger, a dual channel wideband controller and a state-of-the art engine management system in one powerful device we call a VCU (Vehicle Control Unit).

• 4 x 25A (continuous) push-pull PWM capable (5 kHz) outputs (for power to injectors / coils, transbrake, thermofan, fuel pump)
• 12 x 8A (continuous) high side outputs (low speed PWM, 200 Hz) outputs (power to sensors, NOS solenoids, etc)
• 18 x peak/hold injector drivers (can be used as low side drive outputs)
• 12 x low current ignition outputs (can be used as low side drive outputs)
• 8 x low side drive outputs, PWM capable (DPOs)
• 4 x push-pull / h-bridge outputs (8A, PWM capable), eg for electronic throttle
• 23 x 0-5V analog inputs with redundancy for electronic throttle and switchable 5V pullup
• Trigger and home inputs with differential inputs, adjustable thresholds and glitch filters
• 10 x synchronous pulsed inputs, zero crossing or adjustable thresholds - cam sensor inputs, frequency inputs or 0-5V analog inputs
• 2 x onboard wideband controllers, supporting NTK and LSU4.9
• 3 x CAN ports with switchable termination
• Onboard data logging - Up to 300 channels of logging at sample rates up to 1ms (1kHz) with 512MB of internal memory

Plug and Pin Set

For use in converting an existing loom to suit NEXUS R5 applications.

Specifications

• Analog Voltage Inputs (AVI): 23
• Differential Engine Position Inputs: 2 (Trigger and Home)
• Digital Pulsed Inputs (DPI): 0
• Synchronized Pulsed Inputs (SPI): 10
• Knock Sensor Inputs: 2
• On-board Wideband Controller: 2 x NTK/LSU 4.9
• Injection: 18 (peak and hold)
• Ignition: 12
• Ignition Switch Input: 1
• Engine Control Relay output: 0
• Total Digital Pulsed Outputs (DPO): 8
• Half Bridge Outputs (HBO): 4 8A
• On-Board PDM: YES
• 25A High Current Outputs (HCO): 4
• CAN Bus Networks: 3
• MAP sensor: External
• Inertia / G-Sensor: YES
• USB 2.0: USB-C
• Low Power Up via Cable: YES
• Wi-Fi: YES
• Compatible with Haltech Connect App: YES
• Anti-Lag/Rotational Idle: YES
• Boost Control: 4D Closed Loop
• Closed Loop O2 Control: Dual
• CO2 Control: YES
• Drive-By-Wire Throttle: Dual
• Engine Protection: Multi-Level
• Flat Shift Support: Advanced
• Flex Fuel: YES
• Intake Air Bleed Control: YES
• Knock Control: Dual
• Launch Control: YES
• Long Term Learning: Up to 4D
• Nitrous Control Stages: Up to 6
• Race Timer: YES
• Rolling Anti-Lag: YES
• Shock Travel & Ride Height: YES
• Torque Management (Driveshaft and Engine RPM Targeting): YES
• Traction Control: YES
• Trans Brake: YES
• Tuning Table Resolution: 32x32x8 4D
• Variable Cam Control: Up to 4
• Onboard storage: 512MB

What's in this kit

• 1 x Haltech NEXUS R5 VCU - HT-195000
• 1 x Haltech Plug and Pin Set - Suits Nexus R5 - HT-030015

Downloads

• Quickstart guide
• 3D Model
• Wiring Diagram
• Haltech Product Catalogue
• All manuals and downloads for HT-195100 on haltech.com
