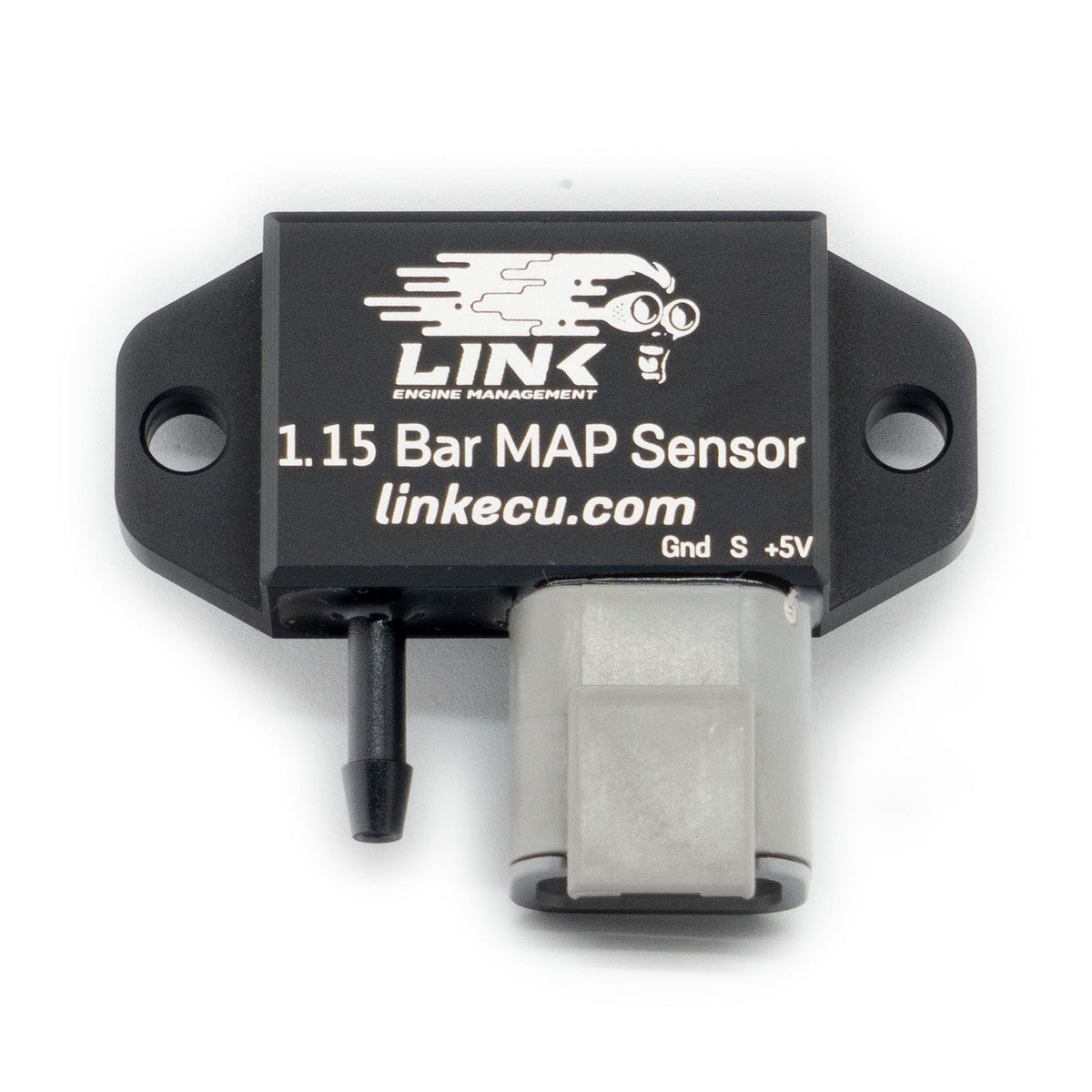

LINK 1.15 Bar MAP Sensor (MAP1.15) 101-0162

Details

The Link 1.15 Bar MAP Sensor is a high-accuracy manifold absolute pressure (MAP) sensor designed for naturally aspirated engines. It can measure manifold pressures from full vacuum to 2 psi (0.15 bar) of positive pressure, delivering accurate and reliable pressure measurement for precise engine tuning.

Models Supported

• All Link ECUs
• Other aftermarket ECUs with analogue MAP sensor inputs
• Applications up to 2 psi (0.15 bar) positive intake pressure

Important

• Mount the sensor higher than the intake manifold connection point
• In PCLink, select "Link 1.15 Bar" as the MAP sensor type
• Not recommended for forced induction vehicles

Specifications

The Link 1.15 Bar MAP Sensor has the following specifications:

• Pressure range: 0-1.15 bar absolute
• High-resolution pressure measurement
• Compact aluminium enclosure
• 4mm (3/16") hose barb connection
• Two-bolt mounting design
• Includes 3-pin Deutsch DTM connector kit
• Wiring pinout marked on the sensor housing
• Designed and manufactured by LinkECU
• Product Dimensions: 60mm(L)x50mm(W)x20mm(H), 2.36in(L)x1.97in(W)x0.79in(H)
• Product Weight: 40 grams (1.41 ounces)
• Electrical: Operating Voltage Range: 4.75-5.25V, Maximum Input Voltage: 5.25V, Maximum Continuous Current Draw: 10mA
• What's in the Box: 1.15 Bar MAP Sensor, Deutsch 3 Way Plug Kit
• PCLink Calibration Name: Link 1.15 Bar
• Raw Calibration Specs: 0.5V = 21.7kPa, 4.5V = 110kPa
• Connector: Deutsch 3 Way Plug Kit (PN 101-0128)
