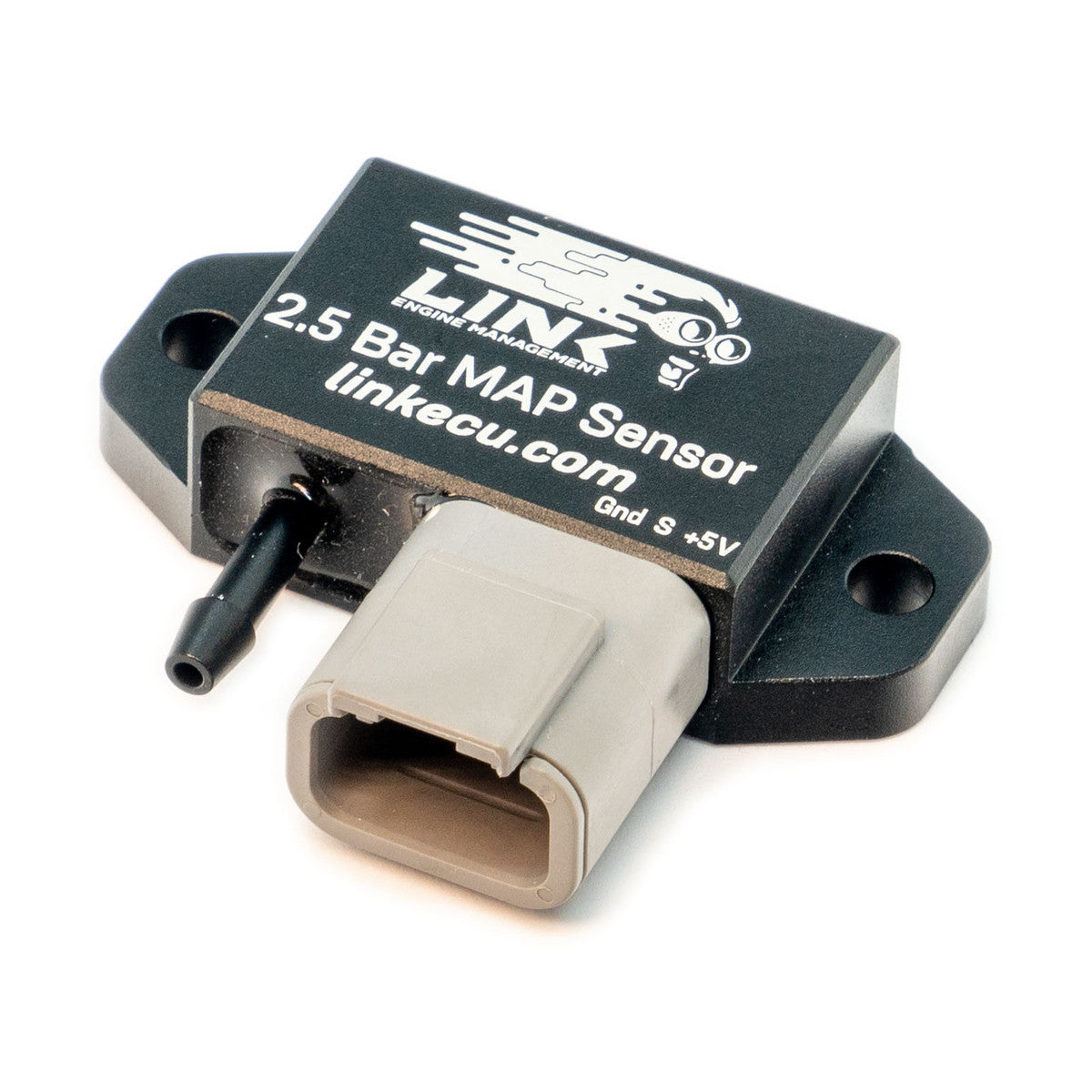

Link 2.5 Bar MAP Sensor (MAP2.5) - 101-0163
A high-accuracy manifold absolute pressure sensor for mildly boosted turbocharged and supercharged engines, reading from full vacuum up to 22 psi (1.5 bar) of boost. Designed and manufactured by LinkECU.
Suits: All Link ECUs and other aftermarket ECUs with analogue MAP inputs, on engines running up to 22 psi (1.5 bar) of boost.
Includes: 2.5 Bar MAP Sensor, Deutsch 3-way plug kit (101-0128).
Specifications
- Pressure range: 0-2.5 bar absolute
- Compact aluminium enclosure, two-bolt mounting, pinout marked on the housing
- 4 mm (3/16") hose barb connection
- Connector: 3-pin Deutsch DTM
- Operating voltage 4.75-5.25 V, maximum input voltage 5.25 V, maximum continuous current draw 10 mA
- PCLink calibration name: Link 2.5 Bar
- Raw calibration: 0.5 V = 35 kPa, 4.5 V = 235 kPa
- Dimensions: 60 x 50 x 20 mm (2.36 x 1.97 x 0.79 in)
- Weight: 40 g (1.41 oz)
Notes
- Not recommended for naturally aspirated engines or boost above 1.5 bar / 22 psi.
- Mount the sensor higher than its intake manifold connection point.
- Select "Link 2.5 Bar" as the MAP sensor type in PCLink.
- Link recommends installation and setup by an official Link dealer.
You may also need
For NA engines, the 1.15 Bar MAP sensor (101-0162); for more boost, the 3 Bar (101-0164) or 4 Bar (101-0165).
