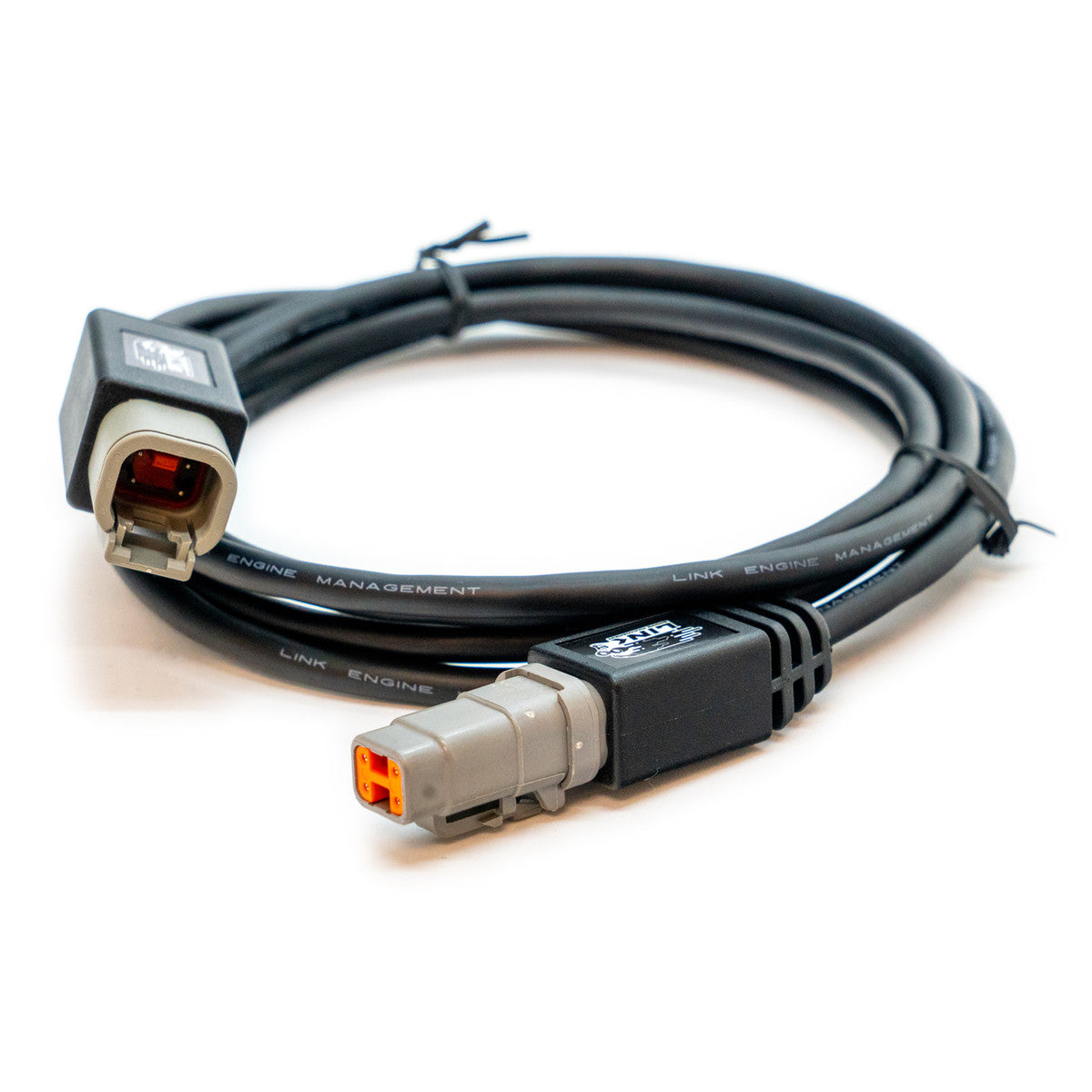

LINK CANEXT - Link CAN Extension Cable 2m 101-0214

Details

The Link 2 meter CAN Extension Cable is for increased reach between your ECU CAN cable and CAN splitter/s or CAN device/s.

Specifications

• Product Dimensions: 2170mm(L)x20mm(W)x15mm(H) / 85.43in(L)x0.79in(W)x0.59in(H)
• Product Weight: 165 grams (5.82 ounces)
• Material: 2 meters
• Electrical: Maximum Input Voltage: 300V / Maximum Continuous Current Draw: 3A / Gauges of wire: 20AWG/0.5mm2
• What's in the Box: DTM4 to DTM4 Extension
• Raw Calibration Specs: Pin 1: 12V / Pin 2: Ground / Pin 3: CAN Low / Pin 4: CAN High
• Connector: DTM4 Female to DTM4 Male. Includes CAN and Power Wiring.
