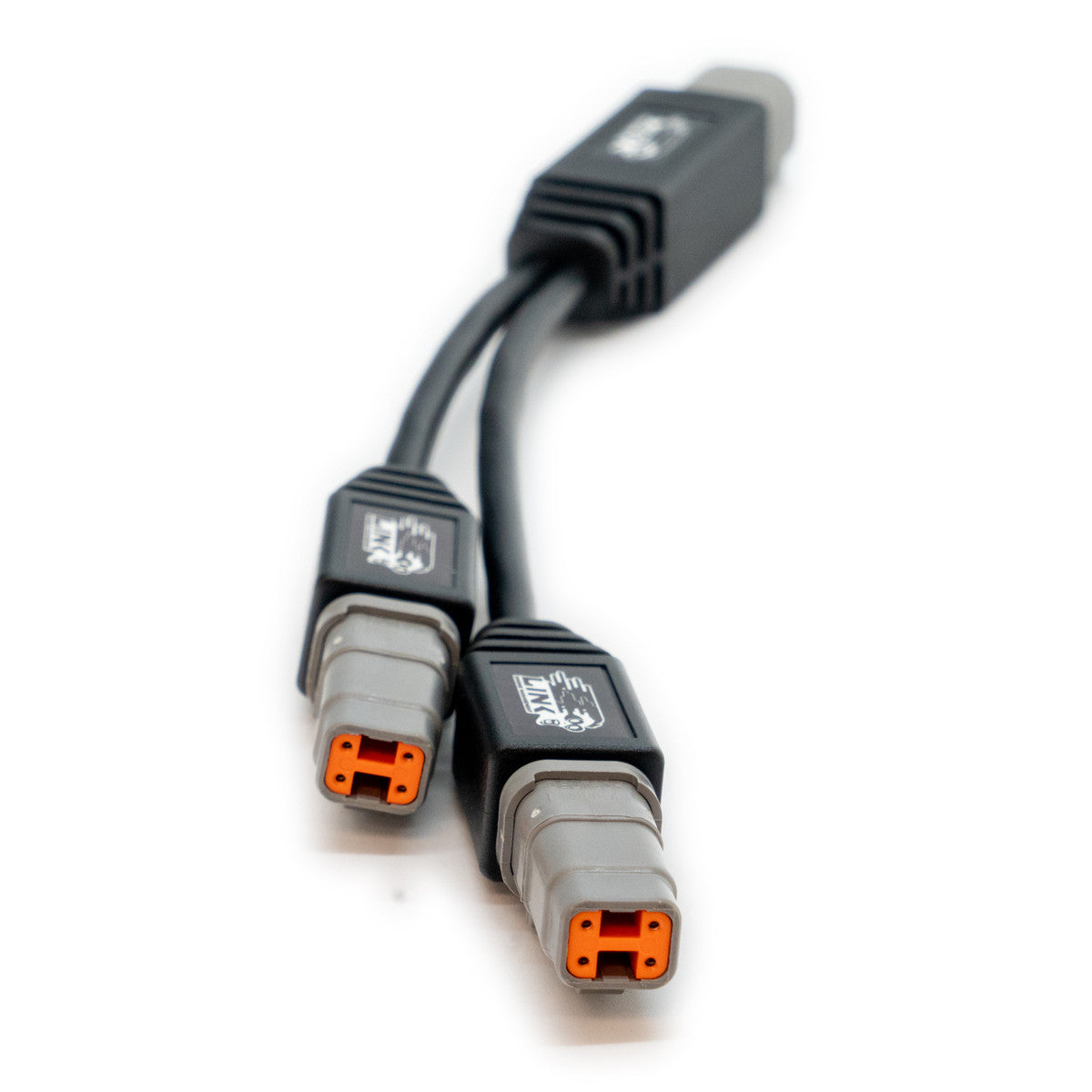

LINK CANTEE - Link CAN Splitter Cable 101-0212

The Link CAN Splitter Cable is required to connect additional CAN devices. Use to connect a CANJST (PN 101-0197), CANLTW (PN 101-0211) or CANSS (PN 101-0210) into two CAN devices.

Specifications

• Communications: Pin 4: CAN H, Pin 3: CAN L, Pin 2: Ground, Pin 1: 12V
• Product Dimensions: 280mm(L)x34mm(W)x23mm(H) / 11.02in(L)x1.34in(W)x0.91in(H)
• Product Weight: 200 grams (7.05 ounces)
• Material: Loom 1: 80mm, Loom 2: 120mm
• Electrical: Maximum Input Voltage: 300V; Maximum Continuous Current Draw: 3A; Gauges of wire: 20AWG/0.5mm2
• What's in the Box: Link CAN Splitter Cable
• Raw Calibration Specs: Pin 1: 12V, Pin 2: Ground, Pin 3: CAN Low, Pin 4: CAN High
• Connector: DTM4 Female to 2 x DTM4 Male. Includes CAN and Power Wiring.
