Link CIVICLink - K20X - 237-4000

Part Number: 237-4000
Authorized Link ECU Dealer Ships from Calgary
Link Black Friday Sale: long ETA We place our Link sale order after the sale ends on Nov 30. Sale orders usually arrive in Calgary in early 2027. Need it sooner? Contact us before you order. support@boostfactory.ca

Warehouse Icon Inventory Location: Manufacturer Warehouse USA

Stock: 0

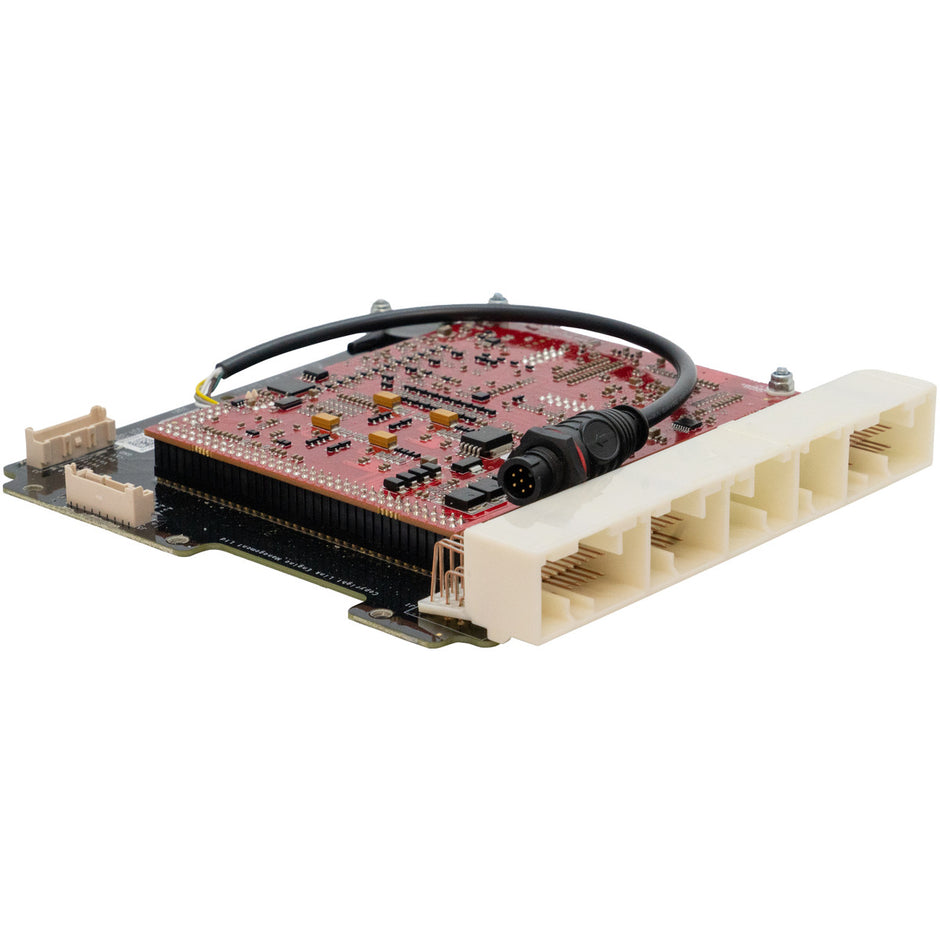

Link K20X Plug-In ECU (Honda DC5/RSX K20) - 237-4000

The K20X is a G4X plug-in ECU for Honda K20, D17 and K24-powered cars. It fits the factory ECU location using the original mounts, loom and connectors with no rewiring or adapter looms, keeps the factory functions and a stock appearance, and includes a startup map and onboard MAP sensor.

It runs Link's G4X platform and PCLink software with the full set of tuning and motorsport functions.

Suits: Honda Integra Type R DC5 and Acura RSX with K20A/K20A2/K20A3 (2002-2004); Honda Civic Type R EP3 K20A (2001-2005); Civic Si/SiR K20A3 (2001-2005); Civic DX/LX/HX D17A1/A2/A3 (2001-2005); Honda CR-V K24A1 (2002-2004). Manual transmission only.

Includes: G4X K20X plug-in ECU, anti-static strap, USB tuning cable, Link stickers, plug-in manual card, product registration card.

Specifications

  • Communications: 2 x CAN bus; LTW 6-pin USB tuning connection
  • CAN connector: 4-pin powered port with protected 12 V and ground, self-resetting 3 A continuous fuse
  • Onboard MAP sensor
  • Onboard logging: 512 MB
  • Operating voltage: 6.5-24 V; maximum input voltage 36 V; maximum continuous current draw 11.5 A
  • Dimensions: 170 x 160 x 30 mm (6.69 x 6.30 x 1.18 in)
  • Weight: 260 g (9.17 oz)
  • Inputs/outputs: see the K20X installation manual

Notes

  • Check that your connector matches the header shown in the photos before ordering.
  • E-throttle is not usable until an expansion connector is fitted.
  • The older CANPCB cable cannot be used; connect CAN devices with the CANJST4 (101-0198).
  • Not for use where it would interfere with a vehicle's safety or emission control features. Link recommends installation and setup by an official Link dealer.

You may also need

To connect CAN devices, a CANJST4 CAN cable (101-0198).
