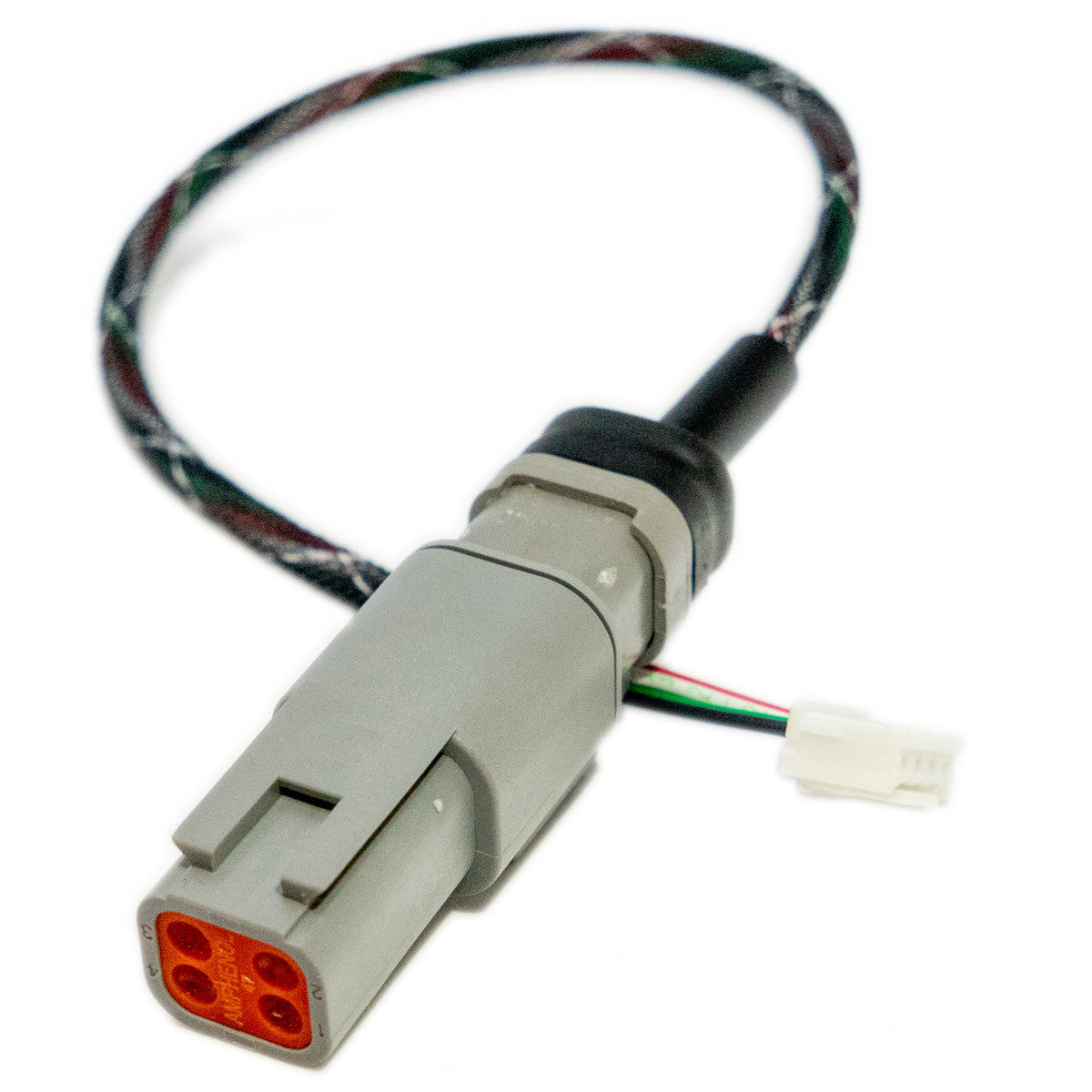

LINK Cable (CANJST4) 101-0198

The Link 300mm CANJST4 is required to add CAN communications & power to recently released G4X Plug-in ECU's which have the new 4 Pin powered CAN connector (not the older 5 pin CAN connector). Plugs directly into the socket on the ECU PCB, provides CAN and a protected 12V supply to allow easy connection of CAN accessories. Suitable for powering a CAN Lambda, Dash, EGT amplifier or other similar low powered CAN devices which have a total continuous current draw of <3A.

Models Supported

Suitable Plug-ins are listed below:

• 214-4100 - Plug-in ECU G4X Nissan GTR with E-Throttle
• 217-4100 - Plug-in ECU G4X Nissan S15 with E-Throttle
• 233-4000 - Plug-in ECU G4X Honda S2000 AP1
• 228-4000 - Plug-in ECU G4X Subaru WRX V5-6
• 237-4000 - Plug-in ECU G4X Honda HC20X Type-R DC5/RSX
• 238-4000 - Plug-in ECU G4X Subaru WRX11
• 239-4000 - Plug-in ECU G4X MX5NB2X
• 240-4000 - Plug-in ECU G4X MX5NB1X
• 243-4000 - Plug-in ECU G4X WRX11 USDM
• 241-4200 - G5 ECU Plug-in - Toyota GT86/Subaru BRZ LHD
• 241-4000 - G5 ECU Plug-in - Toyota GT86/Subaru BRZ RHD

Specifications

• Product Dimensions: 400mm(L)x20mm(W)x20mm(H), 15.75in(L)x0.79in(W)x0.79in(H)
• Product Weight: 35 grams (1.23 ounces)
• Material: 300mm
• Maximum Input Voltage: 300V
• Maximum Continuous Current Draw: 3A
• Gauges of wire: 20AWG/0.5mm2
• Pin 4: CAN H
• Pin 3: CAN L
• Pin 2: Ground
• Pin 1: 12V
• Connector: DTM4 Male to JST4. 12V and GND Terminated to JST4.

What's in the Box

CANJST4 - Link CAN Connection Cable for Plug-in ECUs
