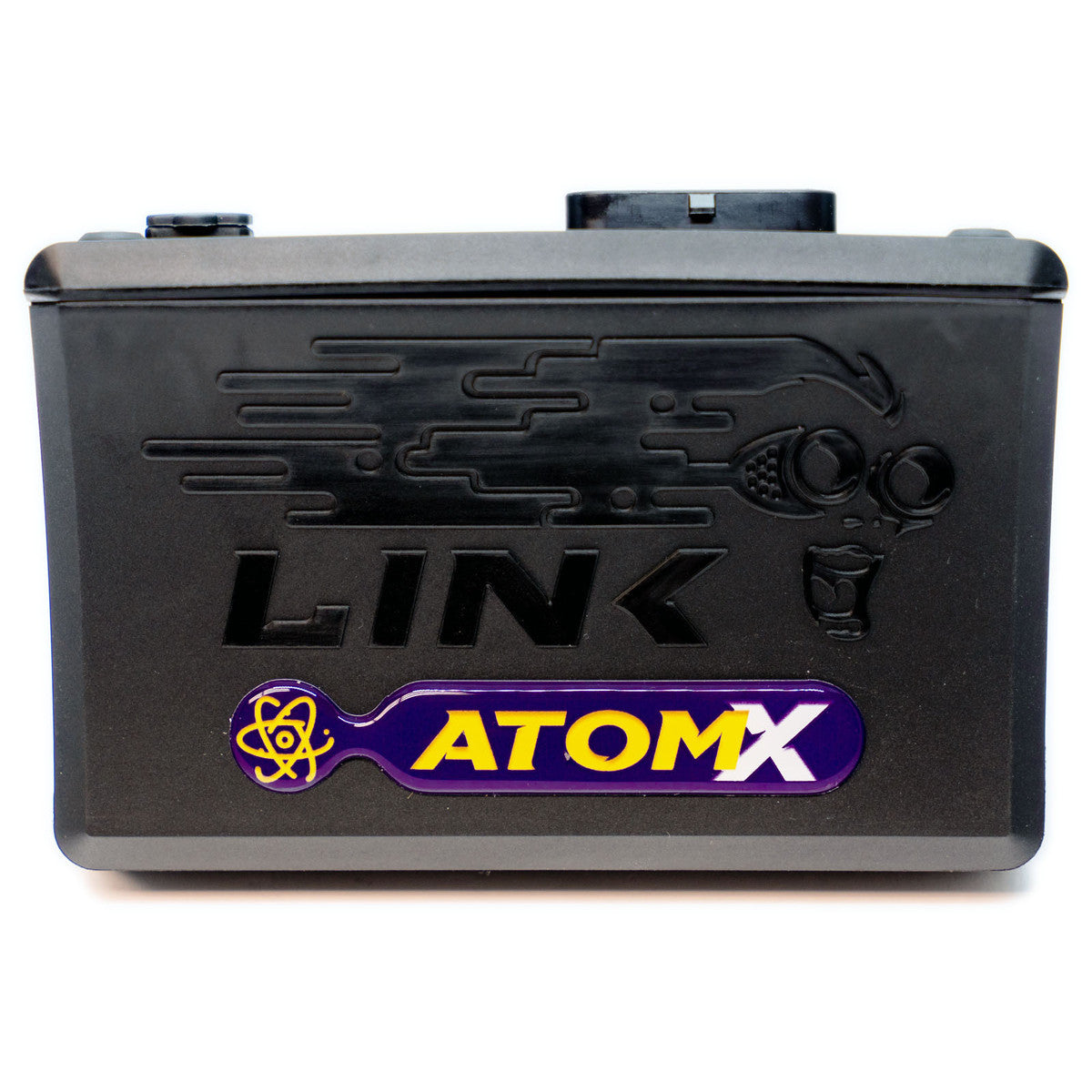

Link G4X AtomX Wire-In ECU (up to 4 Cylinders) - 111-4000
The AtomX is Link's entry-level G4X wire-in ECU for engines up to 4 cylinders or 2 rotors with sequential injection and direct spark. It is a good fit for retunes that don't need extra sensors or advanced motorsport features, while sharing the G4X processor, firmware and PCLink software with the rest of the range.
It supports VE and traditional fuel modelling, individual cylinder corrections, dual fuel and ignition maps, open-loop boost control with three switchable tables, on/off cam control, flex fuel, CAN keypad control, flexible engine protection limiters, a trigger oscilloscope and 512 MB logging, plus limited gear shift control. It talks to aftermarket dashes via CAN or serial and offers an OBDII output stream.
Suits: Wire-in applications up to 4 cylinders or 2 rotors.
Includes: AtomX G4X ECU, Quick Start Guide, mounting bracket, USB tuning cable, LinkECU stickers.
Specifications
- Outputs: 4 injection drives, 4 ignition drives, 4 auxiliary outputs (unused inj/ign usable as auxiliaries), +5 V sensor supply
- Inputs: 2 digital, 2 temperature, 3 analogue, 2 trigger, 1 knock; unused temperature/analogue inputs usable as digital inputs
- Communications: 1 x CAN bus; Mini-B USB tuning connection
- Data logging: 512 MB, 100 kHz maximum total rate, 250 channels
- Operating voltage: 6.5-24 V; maximum input voltage 36 V; maximum continuous current 3 A; operating current 200 mA
- Connector: Superseal 4-row 34-position (part number 4-1437290-0)
- Enclosure: glass-filled nylon; manufactured to ISO 13485
- Dimensions: 90 x 130 x 45 mm (3.54 x 5.12 x 1.77 in)
- Weight: 180 g (6.35 oz)
Notes
- Not for use where it would interfere with a vehicle's safety or emission control features. Link recommends installation and setup by an official Link dealer.
You may also need
A Link A-loom to wire the ECU: 0LA short (101-0002), 2LA medium (101-0005) or 5LA long (101-0008). A spare MTB2 mounting bracket (110-0005) is also available.
