LINK GTRLink - NGTRX 214-4100

Genuine plug-and-play convenience with modern G4X architecture, advanced tuning and motorsport features.

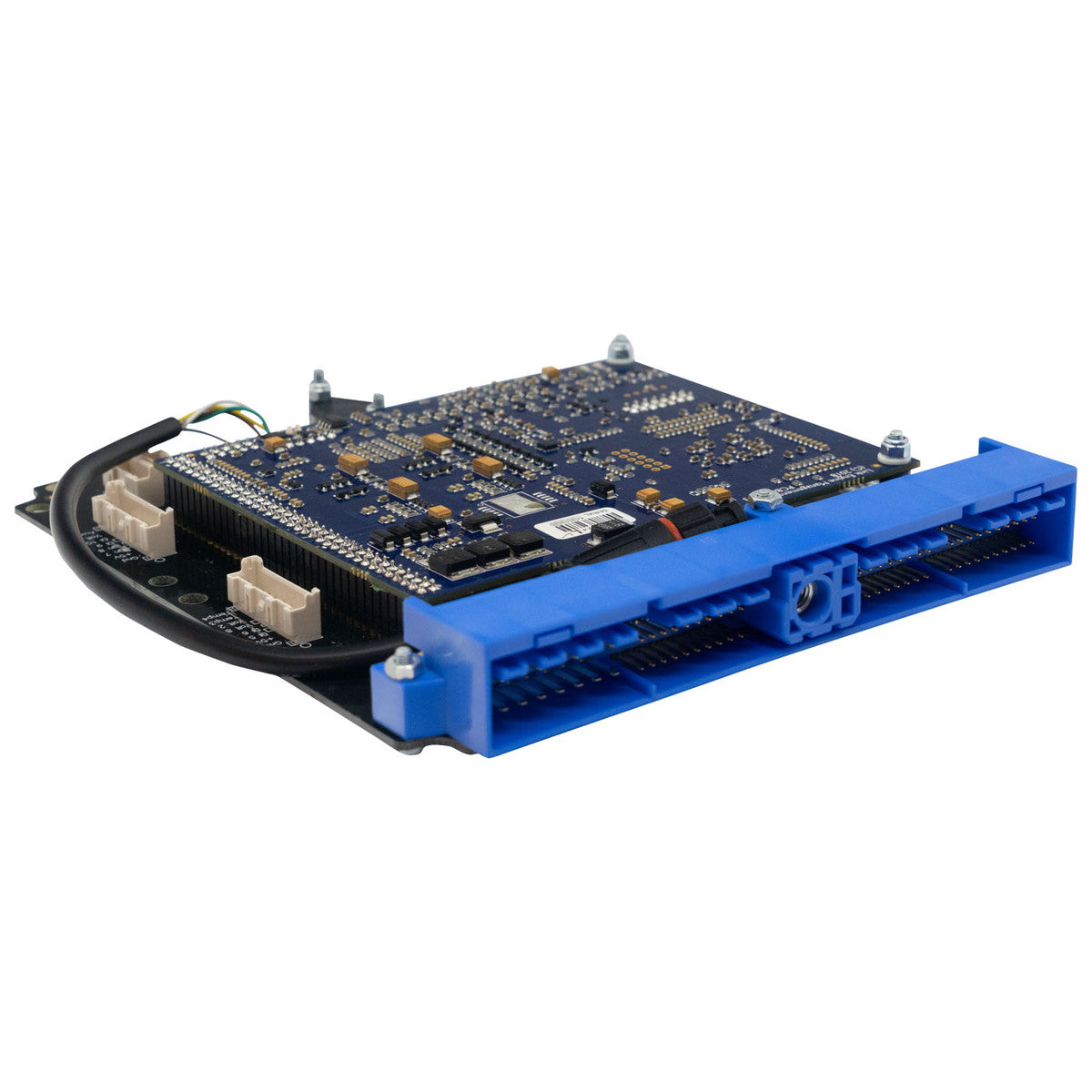

Purpose-built for the Nissan Skyline R32-R34 and other RB powered vehicles, the NGTRX is designed to fit directly into the factory ECU location using the factory mounts, original wiring loom and connectors. No rewiring, no adapter looms, no compromises. It retains all factory functionality, delivers seamless OEM integration and includes a startup map to get your vehicle running quickly. The result is a clean, simple, reliable installation that maintains a stock appearance.

Link G4X Plug-in ECUs share the same processor, firmware, software and standard G4X feature set found throughout the G4X range. Features include dual CAN Bus, Flex Fuel, Flexible Engine Protection Limiters, CAN Keypad Control, Open and Closed Loop Boost Control, Dual Closed Loop Lambda, VVT Control, a built-in Trigger Oscilloscope, compatibility with aftermarket displays, Direct Automatic Transmission Control and 512MB of onboard data logging. It also features a built-in MAP sensor.

Drawing from Link's championship-winning G4X platform, the NGTRX also supports advanced tuning and motorsport features including Nitrous Control, Launch Control, Anti-lag, Cruise Control, Traction Control, Race Timer and Power Management, Gear Shift Control and Paddle Shift Control.

A Link Plug-in ECU is the ideal solution when available for your vehicle and the wiring remains in good condition, providing modern engine management without the complexity of a wire-in installation.

Models Supported

The NGTRX is designed for the following Nissan RB applications using the blue ECU header:

• RB26DETT engines found in R32, R33, R34 Skyline GTRs and Autech 260RS Stageas
• RB20DE engines found in R32 & R33 Skylines, A31 Cefiros
• RB20DET engines found in R32 Skylines (incl 4wd), A31 Cefiros and C33 Laurels – Injector 4&6 need swapping
• RB25DE engines found in R32 & R33 Skylines, C33 & C34 Laurels and A31 Cefiros
• RB25DET engines found in R33 Skylines (incl 4wd) and C34 Laurels
• RB30DE/DET/DETT engines using Non Neo heads and blue plug looms

Suits the blue ECU header. For the grey NEO header ECU, use the NGTTX Plug-in (PN 215-4000).

Important

• Please check your connector matches the header in the listed photo before purchasing
• This model includes an onboard MAP sensor
• Designed for manual transmission vehicles. If you have an automatic model, please contact your local LinkECU reseller to discuss Direct Automatic Transmission Control compatibility
• Most factory features are supported
• This ECU will need an expansion connector before E-Throttle is usable
• This Plug-in features a new 4 pin powered CAN connector and cannot use the old CANPCB cable for CAN connection. Use the CANJST4 (Code 101-0198) cable for connecting CAN devices. This new 4-pin port and cable provide not only the CAN connection, but also a protected 12V power supply and ground for powering the CAN devices. The power supply is protected by a self-resetting fuse rated at 3A continuous.

Features

ECU Features:

• Dual CAN Bus
• E-throttle Control
• Flex Fuel
• Trigger Oscilloscope
• 3 Axis Accelerometer
• Selectable Temp Input Pullups
• Flexible engine protection limiters
• CAN Keypad Control
• VVT Control
• Open Loop Boost Control
• Closed Loop Boost Control
• Dual Closed Loop Lambda
• Direct Automatic Transmission Control
• Compatible with all leading aftermarket dashes via CAN or serial stream
• 512 Megabytes of internal data logging

Note: This ECU will need an expansion connector before E-Throttle is usable.

Motorsport Features:

• Nitrous Control
• Launch Control
• Anti-lag
• Cruise Control
• Traction Control
• Race Timer and Power Management
• Gear Shift Control
• Paddle Shift Control

Specifications

• Inputs and Outputs: For the full list of Inputs and Outputs, please see the NGTRX Installation Manual
• Communications: 2 CAN Bus Channels; LTW 6-Pin USB Tuning Connection
• Product Dimensions: 190mm(L)x160mm(W)x30mm(H); 7.48in(L)x6.30in(W)x1.18in(H)
• Product Weight: 260 grams (9.17 ounces)
• Electrical: Operating Voltage Range: 6.5-24V; Maximum Input Voltage: 36V; Maximum Continuous Current Draw: 11.5A
• What's in the Box: G4X Nissan NGTRX Plug-in ECU; Anti-static Strap; USB Tuning Cable - ECU to USB; Link stickers; Plug-in Manual Card; Product Registration Card

Manuals & Install Guides

• Product Manual
