Link JZX90Link - JZX90X - 235-4000

Part Number: 235-4000
Authorized Link ECU Dealer Ships from Calgary
Link Black Friday Sale: long ETA We place our Link sale order after the sale ends on Nov 30. Sale orders usually arrive in Calgary in early 2027. Need it sooner? Contact us before you order. support@boostfactory.ca

Warehouse Icon Inventory Location: Manufacturer Warehouse USA

Stock: 0

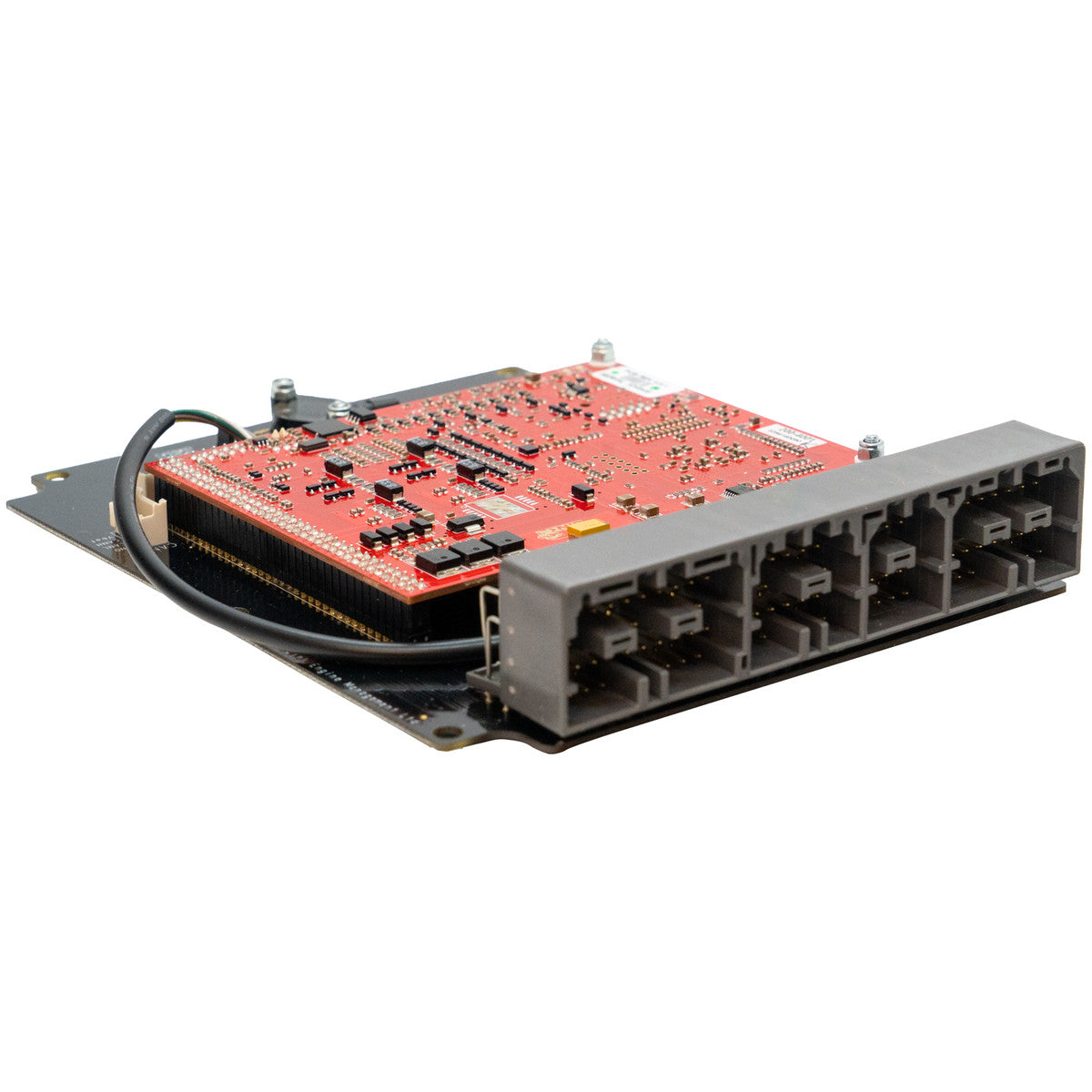

Link JZX90X Plug-In ECU (Toyota JZX90 1JZ-GTE) - 235-4000

The JZX90X is a G4X plug-in ECU for X90-chassis Toyotas with the non-VVT-i 1JZ-GTE. It installs in the factory ECU location on the stock mounts, loom and connectors with no rewiring or adapter looms, keeps the factory functions and comes with a startup map.

It has a built-in MAP sensor and the full G4X platform, including motorsport functions such as nitrous, launch control, anti-lag, cruise control, traction control, race timer/power management, gear shift and paddle shift control.

Suits: Toyota Chaser X90, Mark II X90 and Cresta X90 with 1JZ-GTE non-VVT-i; Toyota Soarer JZZ30 with 1JZ-GTE non-VVT-i. Manual transmission.

Includes: G4X JZX90X plug-in ECU, anti-static strap, USB tuning cable, Link stickers, plug-in manual card, product registration card.

Specifications

  • Communications: 2 x CAN bus; LTW 6-pin USB tuning connection
  • CAN connector: 4-pin powered port with protected 12 V supply and ground, self-resetting fuse rated 3 A continuous
  • Onboard logging: 512 MB
  • Operating voltage: 6.5-24 V; maximum input voltage 36 V; maximum continuous current draw 8.5 A
  • Dimensions: 190 x 160 x 30 mm (7.48 x 6.30 x 1.18 in)
  • Weight: 260 g (9.17 oz)
  • Inputs/outputs: see the JZX90X installation manual

Notes

  • Check that your connector matches the header shown in the photos before ordering.
  • An expansion connector is required before e-throttle can be used.
  • The older CANPCB cable cannot be used; connect CAN devices with the CANJST4 cable (101-0198).
  • Automatic models: ask us about Direct Automatic Transmission Control.
  • Most factory features are supported. Not for use where it would interfere with a vehicle's safety or emission control features. Link recommends installation and setup by an official Link dealer.

You may also need

To connect CAN devices, a CANJST4 CAN cable (101-0198).
