Link S2000Link - S2000X - 233-4000
Inventory Location:
Manufacturer Warehouse USA
Stock: 0
0OUT OF STOCK
0

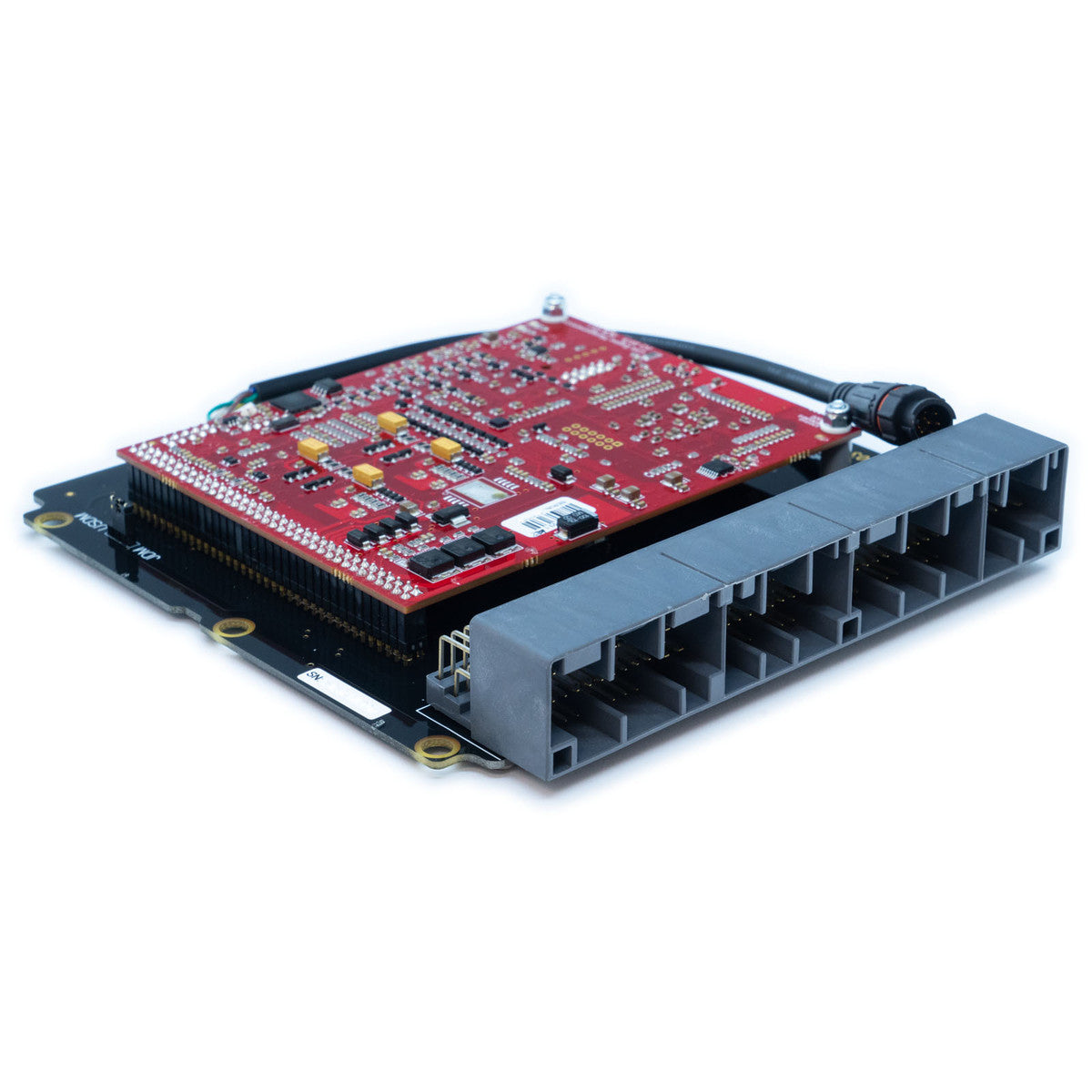

Link S2000X Plug-In ECU (Honda S2000 AP1) - 233-4000
The S2000X is a G4X plug-in ECU for the Honda S2000. It mounts in the factory ECU location using the original mounts, loom and connectors with no rewiring or adapter looms, and includes a startup map.
It runs Link's G4X platform and PCLink software, with the G4X motorsport functions on top of full engine tuning.
Suits: Honda S2000 AP1 (1999-2004); Honda S2000 AP2 from 2005 (non-e-throttle models). Manual transmission only.
Includes: G4X S2000X plug-in ECU, anti-static strap, USB tuning cable, Link stickers, plug-in manual card, product registration card.
Specifications
- Communications: 2 x CAN bus; LTW 6-pin USB tuning connection
- CAN connector: 4-pin powered port with protected 12 V and ground, self-resetting 3 A continuous fuse
- Onboard logging: 512 MB
- Operating voltage: 6.5-24 V; maximum input voltage 36 V; maximum continuous current draw 11.5 A
- Dimensions: 190 x 160 x 30 mm (7.48 x 6.30 x 1.18 in)
- Weight: 260 g (9.17 oz)
- Inputs/outputs: see the S2000X installation manual
Notes
- Check that your connector matches the header shown in the photos before ordering.
- Factory e-throttle models are not supported.
- The older CANPCB cable cannot be used; connect CAN devices with the CANJST4 (101-0198).
- Most factory features are supported. Not for use where it would interfere with a vehicle's safety or emission control features. Link recommends installation and setup by an official Link dealer.
You may also need
To connect CAN devices, a CANJST4 CAN cable (101-0198).
